Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > SPA Clean Water Diving Pump,Submersible Water Pump

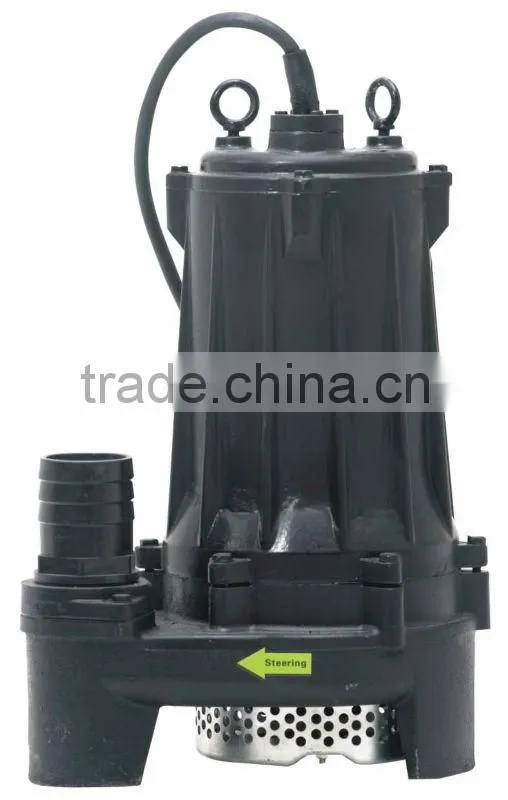

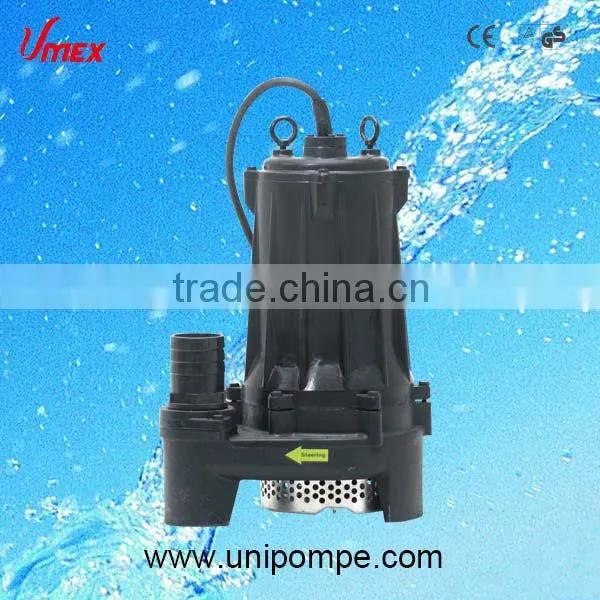

SPA Clean Water Diving Pump,Submersible Water Pump

Name: SPA Clean Water Diving Pump,Submersible Water Pump
Brand: BALLENA,UNIPOMPE
SKU: 113798003

SPA Clean Water Diving Pump,Submersible Water Pump thumbnail-1

SPA Clean Water Diving Pump,Submersible Water Pump photo-1

US$ 15 - 60 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

BALLENA,UNIPOMPE

Model Number:

SPA60-18

Contact Supplier Request Quote Chat Now

Umex (Ningbo) Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name BALLENA,UNIPOMPE

Model Number SPA60-18

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Pressure High Pressure

Application Submersible

Specifications

submersible pump
compact and light
aluminum pump casing & impeller
water depth max. 5m

SPA SERIES THREE PHASE SUBMERSIBLE PUMP

RANGE OF PERFORMANCE
8Flow rate: 1630 L/min (97.8 m3/h)
8Head: 21 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water : 6.5-8.5
8Maximum Passage for suspended solids: 2 mm

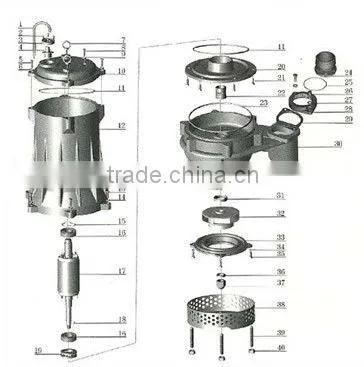

N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION
1	Cable	16	Ball bearing	31	Oil seal
2	Bolt	17	Rotor	32	Impeller
3	Flange	18	Key	33	Pump cover
4	Cable protector	19	Ball bearing	34	Stretching washer
5	Bolt	20	Lower bearing bracket	35	Bolt
6	Stretching washer	21	Screw	36	Stretching washer
7	Flying rings	22	Mechanical seal	37	Nut
8	Screw	23	"O" ring	38	Filter mesh
9	"O" ring	24	Out-let connector	39	Bilateral bolt
10	Upper bearing bracket	25	"O" ring	40	Nut
11	"O" ring	26	Bolt	41
12	Motor stator	27	Washer	42
13	Bolt	28	Connection nut	43
14	Stretching washer	29	Rubber washer	44
15	Undulated washer	30	Pump body	45
