Specifications

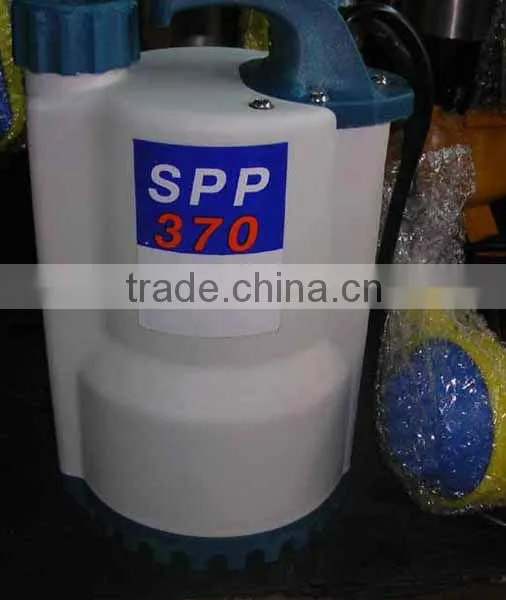

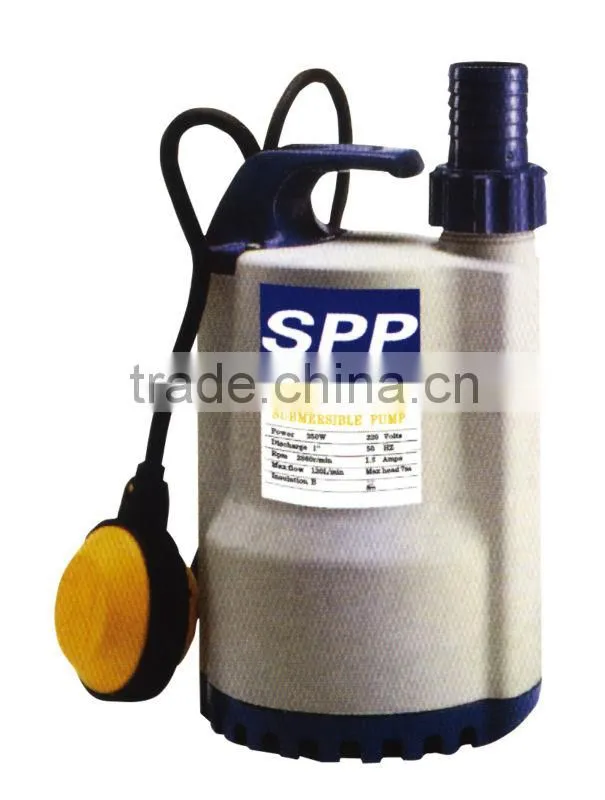

SPP-370F Submersible Clean pumpmax. water depth 5m
plastic pump body
garden irrigation
SPP MODEL PLASTIC SPP-370F Submersible water pump,electric submersible pump,clean water pump

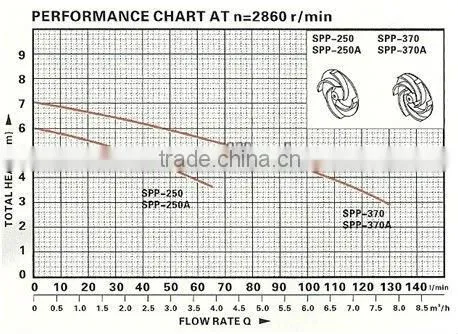

RANGE OF PERFORMANCE
8Flow rate: up to 130 L/min (7.8 m3/h)
8Head: up to 7 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8Maximum Passage for suspended solids: 2mm

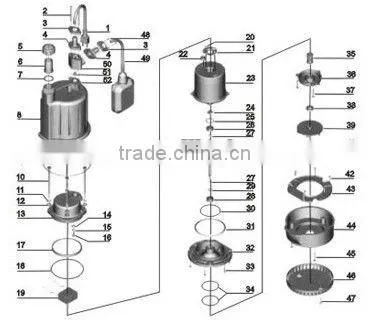

N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
1 |
Cable |
16 |
Screw |
31 |
Rubber washer |
46 |
Filter mesh |
2 |
Screw |
17 |
Rubber washer |
32 |
Connection part |
47 |
Screw |
3 |
Flange |
18 |
"O" ring |
33 |
Screw |
48 |
Screw |
4 |
Cable protector |
19 |
Capacitor |
34 |
"O" ring |
49 |
Float switch |
5 |
Connection nut |
20 |
Screw |
35 |
Mechanical seal |
50 |
Tees |
6 |
Out-let connector |
21 |
Press plate |
36 |
Oil chamber cover |
51 |
Hole bead |
7 |
Rubber washer |
22 |
Line protector |
37 |
Screw |
52 |
Rubber washer |
8 |
Motor shell |
23 |
Stator |
38 |
Oil seal |
53 |
|
9 |
"O" ring |
24 |
Thermal protector |
39 |
Impeller |
54 |
|
10 |
Bolt |
25 |
Undulated washer |
40 |
Washer |
55 |
|
11 |
Streching washer |
26 |
Bearing |
41 |
Nut |
56 |
|
12 |
Washer |
27 |
Snap ring |
42 |
Screw |
57 |
|
13 |
Capacitor cover |
28 |
Rotor |
43 |
Pump cover |
58 |
|
14 |
Washer |
29 |
Word ring |
44 |
Pump body |
59 |
|
15 |
Streching washer |
30 |
"O" ring |
45 |
Screw |
60 |
|
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
POWER |
MAX.HEAD |
MAX.FLOW |
OUTLET |
CABLE |
G.W |
PACKING DIMENSION |
QTY/20GP |
(w) |
(m) |
(L/min) |
(mm) |
(m) |
(K.g) |
(cm) |
pcs |
|
SPP-250F |
250 |
6 |
65 |
25 |
5.3 |
4.0 |
20x19x30 |
2600 |
SPP-370F |
370 |
7 |
130 |
32 |
5.3 |
5.3 |
20x19x30 |
2600 |
8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
PRODUCTION PROCESS SCHEME
