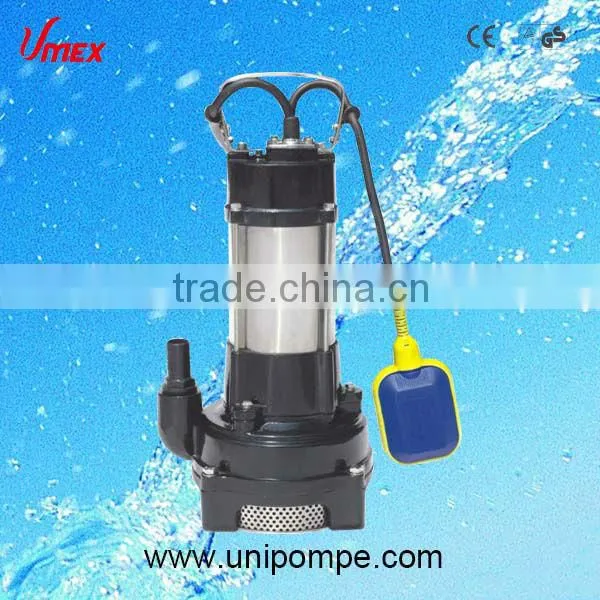

Help CenterHSPA Submersible Clean Water Pump
Related Products
-
QDS Submersible Clean Water Pump,with Float SwitchUS$ 50 - 100MOQ: 100 Pieces -
SPA Clean Water Diving Pump,Submersible Water PumpUS$ 15 - 60MOQ: 100 Pieces
-
SPP-370F Submersible Water Pump,electric Submersible Pump,clean Water Pump Quality ChoiceUS$ 20 - 50MOQ: 100 Pieces
-
Cost-effective WQD6-16-0.75 Submersible Pump, Dirty Water Pump,Cast Iron BodyUS$ 50 - 100MOQ: 50 Pieces
-
2013 Hot-sale V2200F Float Switch Submersible Sewage PumpUS$ 30 - 100MOQ: 50 Pieces
Specifications
submersible pump for clean watercompact and light
aluminum pump casing & impeller
water depth max. 5m

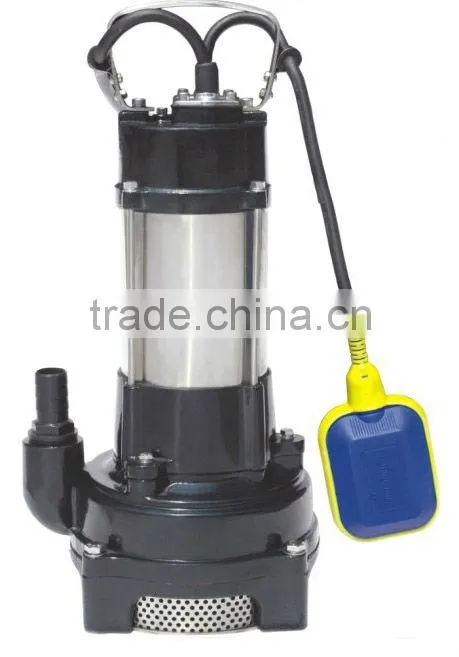

HSPA SERIES STANDING SUBMERSIBLE PUMP

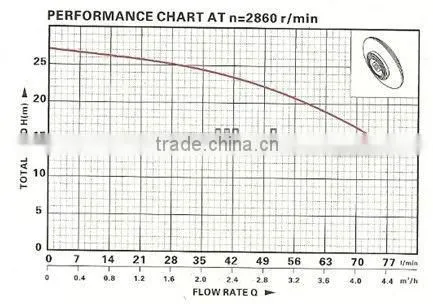

RANGE OF PERFORMANCE
8Flow rate: up to 75 L/min (4.5 m3/h)
8Head: up to 27 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :6.5~8.5
8The grain diameter of the solids in the water is no bigger than 2 mm

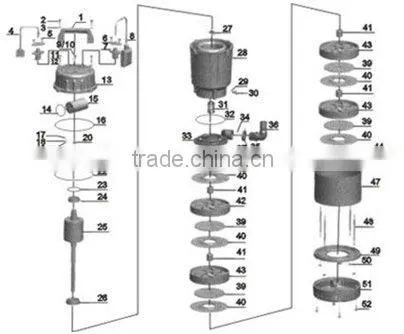

N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
1 |
Handle |
16 |
"O" ring |
31 |
Mechanical seal |
46 |
Bolt |
2 |
Screw |
17 |
Screw |
32 |
"O" ring |
47 |
Machine canister |
3 |
Washer |
18 |
Spring washer |
33 |
Connection part |
48 |
Bilateral bolt |
4 |
Cable |
19 |
Washer |
34 |
"O" ring |
49 |
Base plate |
5 |
Screw |
20 |
Line protector |
35 |
Connection nut |
50 |
Nut |
6 |
Flange |
21 |
Cover |
36 |
Out-let connector |
51 |
Filter mesh |
7 |
Cable protector |
22 |
"O" ring |
37 |
Screw |
52 |
Screw |
8 |
Float switch |
23 |
Undulated washer |
38 |
Oil seal |
53 |
|
9 |
Screw |
24 |
Bearing |
39 |
Impeller |
54 |
|
10 |
"O" ring |
25 |
Rotor |
40 |
Gulde leaf cover |
55 |
|
11 |
Bolt |
26 |
Bearing |
41 |
Shaft sleeve |
56 |
|
12 |
Washer |
27 |
Thermal protector |
42 |
Upper gulde leaf |
57 |
|
13 |
Capacitor cover |
28 |
Stator |
43 |
Lower gulde leaf |
58 |
|
14 |
"O" ring |
29 |
"O" ring |
44 |
Washer |
59 |
|
15 |
Capacitor |
30 |
Bolt |
45 |
Shaft sleeve |
60 |
|
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
POWER |
MAX.HEAD |
MAX.FLOW |
OUTLET |
CABLE |
G.W |
PACKING DIMENSION |
20' QUANTITY |
(w) |
(m) |
(l/min) |
(mm) |
(m) |
(K.g) |
(cm) |
pcs |
|
HSPA2-0.6F |
600 |
27 |
75 |
25 |
5.3 |
18.5 |
27X23.5X50 |
820 |
8220V/50Hz &240V/50Hz & 220V/60Hz & 110V/60Hz are available on request.
