Specifications
garden submersible pump,dirty water pump1. stainless steel
2. good performance
3. economic domestic water pump

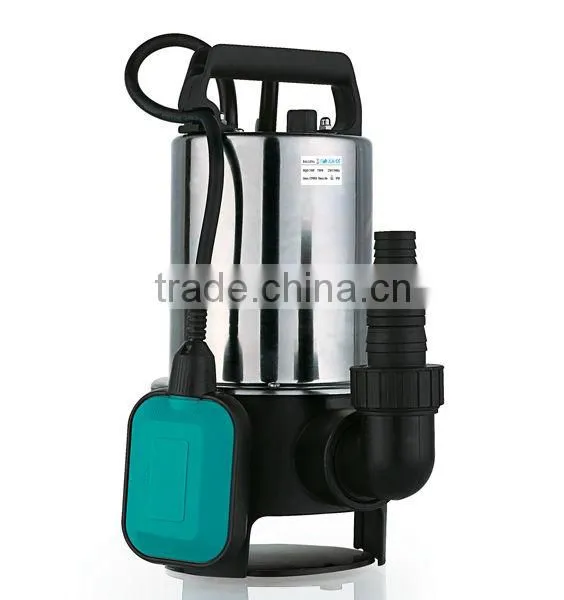

HQD-F2 SERIES GARDEN SUBMERSIBLE PUMP,DIRTY WATER PUMP
LIMITS OF USE
8Max grain size:50mm
8Liquid temperature up to +35°C
8Protection:IP X8
MATERIALS
8Pump body: Stainless, steel AISI304.
8Impeller: Plastic(or SS304)
8Motor :Closed,externally ventilated
8Insulation class:B(Class F if required)
8Protection class:IP68
8Duty:Continuously rated
8Mechanical seal:ceramic/graphite.
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
V&Hz |
POWER |
MAX. HEIGHT |
MAX. DEPTH |
MAX. PUMP RATE |
CABLE
|
LENGTH OF CABLE |
N.W |
PACKING DIMENSION |
|
|
(w) |
(m) |
(m) |
(L/H) |
|
(m) |
(K.g) |
(cm) |
HQD400F2 |
230V/50HZ |
400 |
5 |
5 |
7500 |
H05RN-F3G0.75mm² |
10 |
4.375 |
22*16*34 |
HQD550F2 |
230V/50HZ |
550 |
7 |
7 |
10500 |
H05RN-F3G1.0mm² |
10 |
4.875 |
22*16*34 |
HQD750F2 |
230V/50HZ |
750 |
8 |
7 |
12500 |
H07RN-F3G1.0mm² |
10 |
5.25 |
22*16*37 |
HQD900F2 |
230V/50HZ |
900 |
8.5/7 |
7 |
14000/18000 |
H07RN-F3G1.0mm² |
10 |
5.625 |
22*16*37 |
HQD1100F2 |
230V/50HZ |
1100 |
9.5/8 |
7 |
15000/20000 |
H07RN-F3G1.0mm² |
10 |
5.875 |
22*16*37 |
8230V/50Hz & 115V/60Hz are available on request.

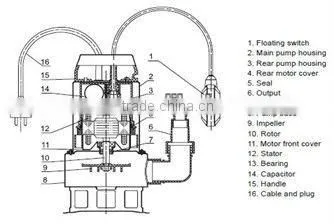

PRODUCTION PROCESS SCHEME:
