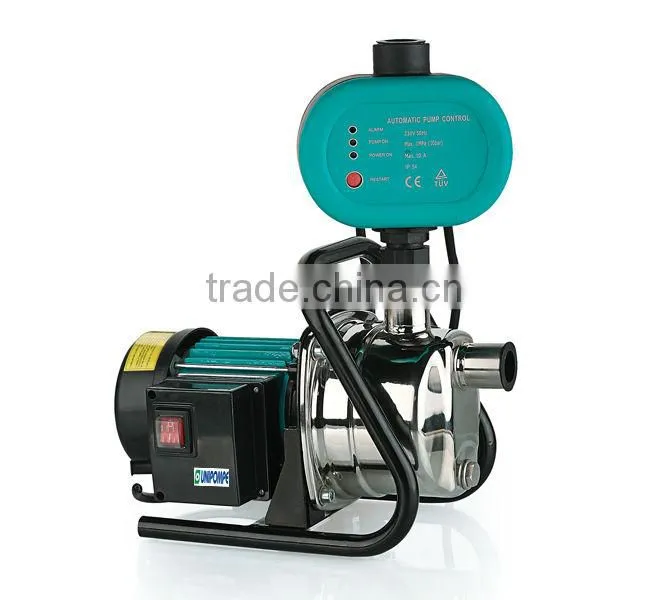

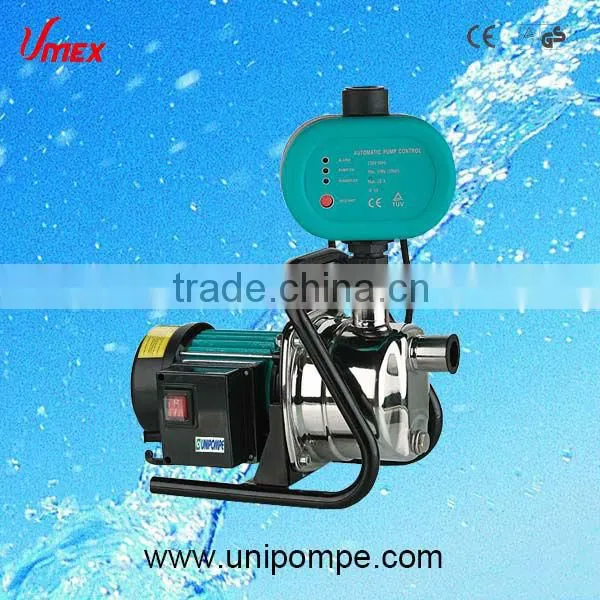

Help CenterGP Garden Jet Pumps With Pressure Control Switch,stainless Steel Pump
Related Products
-
SP Series Stainless Steel Garden Submersible PumpUS$ 20 - 60MOQ: 100 Pieces -
Plastic Pump Body Submersible Water Pump, Garden Water Pump Quality ChoiceUS$ 15 - 50MOQ: 200 Pieces
-
3GSP Multi-stage Garden Submersible Pump, Stainless Steel Electric PumpUS$ 20 - 60MOQ: 100 Pieces
-
SP Series Garden Water Pump,dirty Water PumpUS$ 15 - 50MOQ: 200 Pieces
-
SP Series Garden Water Pump,electric Submersible PumpUS$ 15 - 50MOQ: 200 Pieces
Specifications
garden jet pump with pressure control switch1.good performance
2.new type garden pump
3.stainless steel pump head
GP03-E SERIES GARDEN JET PUMP
LIMITS OF USE
8Max.suction head :8m
8Liquid temperature up to +35°C
MATERIALS and FEATURES:
8Pump body: Cast iron(or SS304).
8Impeller: Plastic(or SS304).
8Shaft with rotor:Carbon steel or stainless steel
8Insulation class:B(Class F if required)
8Protection :IP X4
8Bearing: NSK, C&U, or local quality.
8Mechanical seal:ceramic/graphite
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
V&Hz |
POWER |
MAX. HEIGNT |
MAX. DEPTH |
DIA.OF PIPE |
CABLE |
LENGTH OF CABLE |
N.W |
PACKING DIMENSION |
|
|
(w) |
(m) |
(m) |
|
|
(m) |
(K.g) |
(cm) |
GP03600-E |
230V/50HZ,115V/60HZ |
600 |
35 |
7 |
1'' |
H07RN-F3G1.0mm² |
1.2 |
7.0 |
49*23*23 |
GP03800-E |
230V/50HZ,115V/60HZ |
800 |
40 |
7 |
1'' |
H07RN-F3G1.0mm² |
1.2 |
7.6 |
49*23*23 |
GP031000-E |
230V/50HZ,115V/60HZ |
1000 |
44 |
7 |
1'' |
H07RN-F3G1.0mm² |
1.2 |
8.4 |
49*23*23 |
GP031200-E |
230V/50HZ,115V/60HZ |
1200 |
48 |
7 |
1'' |
H07RN-F3G1.0mm² |
1.2 |
8.9 |
49*23*23 |
8230V/50Hz & 115V/60Hz are available on request.
Production Process Scheme:
