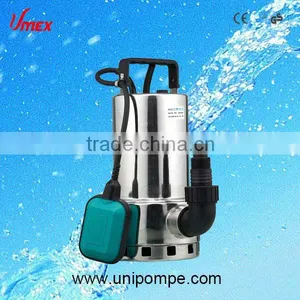

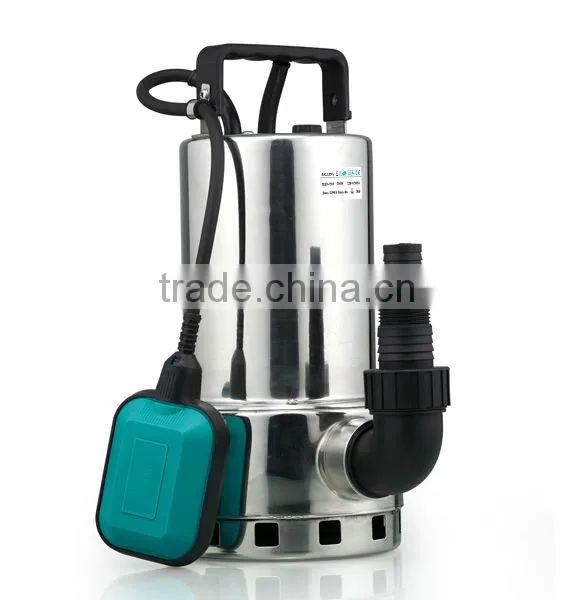

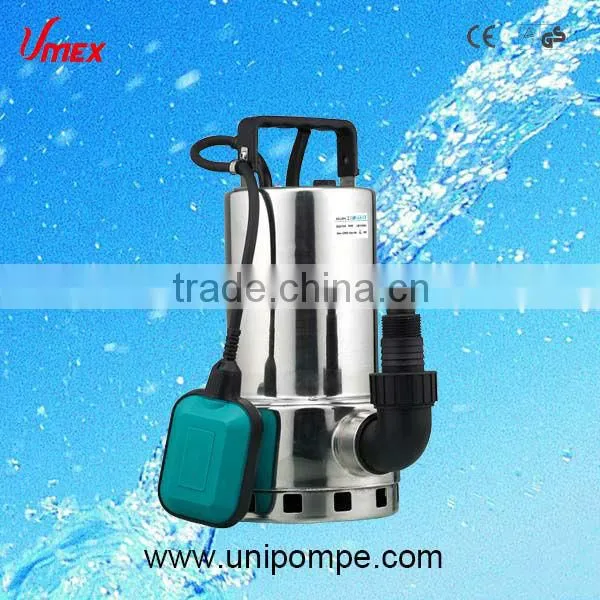

Help CenterSP Series Stainless Steel Garden Submersible Pump
Related Products
-
Plastic Pump Body Submersible Water Pump, Garden Water Pump Quality ChoiceUS$ 15 - 50MOQ: 200 Pieces -
3GSP Multi-stage Garden Submersible Pump, Stainless Steel Electric PumpUS$ 20 - 60MOQ: 100 Pieces
-
SP Series Garden Water Pump,dirty Water PumpUS$ 15 - 50MOQ: 200 Pieces
-
SP Series Garden Water Pump,electric Submersible PumpUS$ 15 - 50MOQ: 200 Pieces
-
SP Series Portable Garden Submersible Water Pump,dirty Water PumpUS$ 15 - 50MOQ: 200 Pieces
Specifications
Garden Submersible PumpPump body: Stainless steel AISI304.
low noise
For Corrosive Liquid
SP08550 SERIES GARDEN SUBMERSIBLE PUMP
LIMITS OF USE
8Max grain size:5-18mm
8Liquid temperature up to +35°C
8Protection:IP X8
MATERIALS
8Pump body:Stainless, steel AISI304.
8Impeller:Plastic(or SS304)
8Motor:Closed,externally ventilated
8Insulation class:B(Class F if required)
8Protection class:IP68
8Duty:Continuously rated
8Mechanical seal:ceramic/graphite.
ARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
V&Hz |
POWER |
MAX. HEIGHT |
MAX. DEPTH |
MAX.PUMP RATE |
CABLE |
LENGTH OF CABLE |
N.W |
PACKING DIMENSION |
W |
(m) |
(m) |
(L/H) |
|
(m) |
(K.g) |
(cm) |
||
SP08550 |
230V/50HZ,115V/60HZ |
550 |
7 |
7 |
10500 |
H05RN-F3G1.0mm² |
10 |
5 |
22*18*34 |
SP08750 |
230V/50HZ,115V/60HZ |
750 |
8 |
7 |
12500 |
H07RN-F3G1.0mm² |
10 |
5.25 |
22*18*37 |
SP08900 |
230V/50HZ,115V/60HZ |
900 |
9/7 |
7 |
14000/17000 |
H07RN-F3G1.0mm² |
10 |
5.5 |
22*18*37 |
SP081100 |
230V/50HZ,115V/60HZ |
1100 |
10/8 |
7 |
15000/20000 |
H07RN-F3G1.0mm² |
10 |
5.625 |
22*18*37 |
8230V/50Hz & 115V/60Hz are available on request.
PRODUCTION PROCESS SCHEME
