Specifications

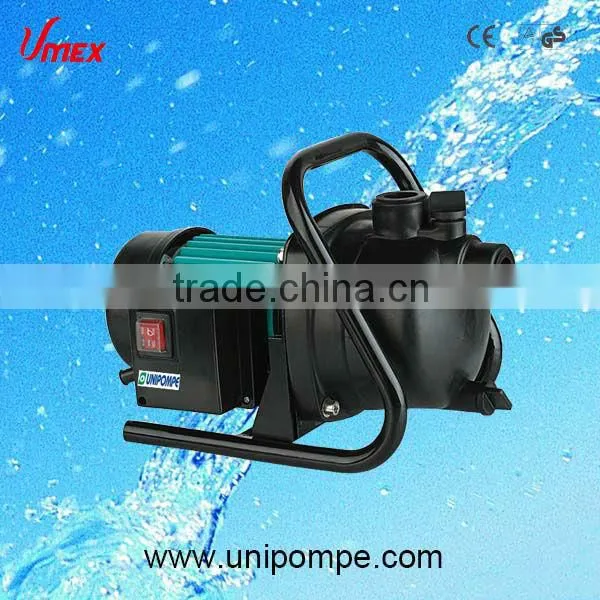

GP03A series garden jet pump1. portable and durable
2. good performance
3. economic domestic water pump
GP03A SERIES GARDEN JET PUMP
LIMITS OF USE
8Max.suction head :8m
8Liquid temperature up to +35°C
MATERIALS and FEATURES:
8Pump body: Plastic.
8Impeller: Plastic.
8Shaft with rotor:Carbon steel or stainless steel
8Insulation class:B(Class F if required)
8Protection :IP X4
8Bearing: NSK, C&U, or local quality.
8Mechanical seal:ceramic/graphite.
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
V&Hz |
POWER |
MAX.PUMP RATE |
MAX. HEIGNT |
MAX. DEPTH |
DIA.OF PIPE |
CABLE |
LENGTH OF CABLE |
N.W |
PACKING DIMENSION |
|
|
(w) |
(l/h) |
(m) |
(m) |
|
|
(m) |
(K.g) |
(cm) |
GP03600A |
230V/50HZ,115V/60HZ |
600 |
3000 |
35 |
7 |
1'' |
H07RN-F3G1.0mm² |
1.2 |
6.0 |
36.5*23*23 |
GP03800A |
230V/50HZ,115V/60HZ |
800 |
3200 |
40 |
7 |
1'' |
H07RN-F3G1.0mm² |
1.2 |
6.6 |
36.5*23*23 |
GP031000A |
230V/50HZ,115V/60HZ |
1000 |
3500 |
44 |
7 |
1'' |
H07RN-F3G1.0mm² |
1.2 |
7.0 |
36.5*23*23 |
GP031200A |
230V/50HZ,115V/60HZ |
1200 |
3800 |
48 |
7 |
1'' |
H07RN-F3G1.0mm² |
1.2 |
7.9 |
36.5*23*23 |
8230V/50Hz & 115V/60Hz are available on request.

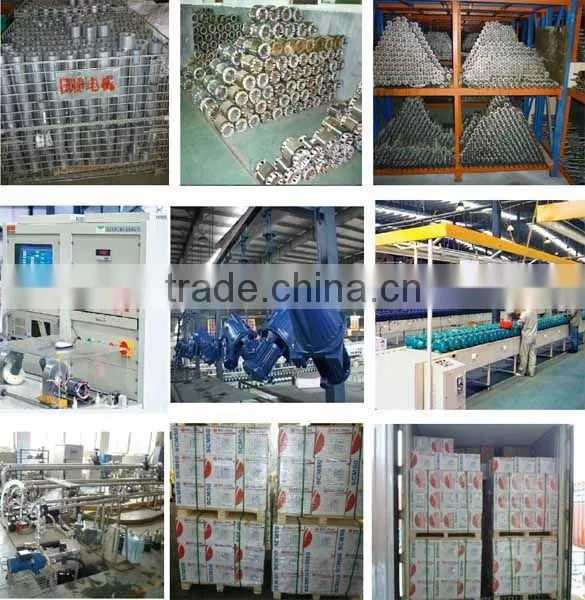

Production Process Scheme:
