Product features:

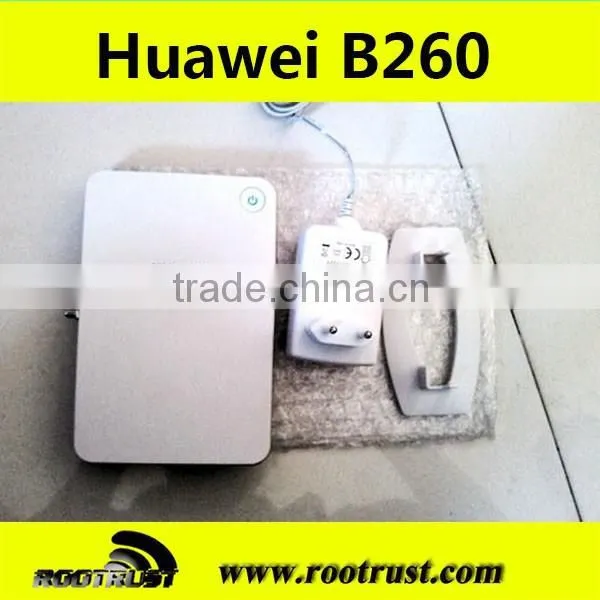

The Huawei B260 series wireless gateway is a 3G Router for family users and enterprise users. You can access the Internet through the gateway and network cable or wireless network. You can also connect with an analog telephone to provide the voice service.
Quick Overview
* HSUPA/HSDPA/WCDMA 2100/900Mhz or 850/1900MHZ
* GSM/GPRS/EDGE 1900/1800/900/850Mhz
* 5.76Mbit/s HSUPA, 7.2Mbit/s HSDPA, 384kbit/s WCDMA
* Built-in WCDMA and WLAN high gain antenna
* Satisfies the portability and removability of floating working.
* Receiving diversity and load equalizer
* Supports limit of access users (up to 32 users)
Huawei B260 3G wireless gateway supports the following standards:
* High speed uplink packet access (HSUPA)
* High speed downlink packet access (HSDPA)
* Wide band code division multiple access (WCDMA)
* Global system for mobile communications (GSM)
* General packet radio service (GPRS)
* Enhanced data rates for global evolution
Huawei B260 3G Router supports wired and wireless network access and analog telephone access and provides data routing service and analog telephone voice service.
The supported service functions are as follows:
* Data service
* Voice function
* Security Service
* Local maintenance management function
Main features:
* Multiple network environments.
* Supports HSUPA/HSDPA/WCDMA 2100//900/Mhz and GSM/GPRS/EDGE 1900/1800/900/850Mhz.
* High speed experience.
* Supports data services of maximum rate of 5.76Mbit/s HSUPA, 7.2Mbit/s HSDPA, 384kbit/s WCDMA, 236.8kbit/s EDGE, and 85.6kbit/s GPRS.
* Receiving diversity and load equalizer.
* Shows the maximum coverage of the network and exerts the highest value of the network.
* Built-in DHCP Server, DNS RELAY and NAT. Provides high-speed routing capability
* Comprehensive and robust security service. Provides instant protection to block potential security risks and instrusion attempts.
* Support Windows 2000, XP,VISTA. Compatible with nearly all modem laptops and PCs.
* Intuitionistic and convenient Web-based management.
* Ultrain and artful appearance. Satisfies the portability and removability of floating working.
* Built-in WCDMA and WLAN high gain antenna. Ensured performance and easy portability.
* User-friendly design of LED indicator. Easy to observe the status of equipment.
Technical standard:
* WAN: HSUPA/HSDPA/WCDMA
* LAN: IEEE 802.3/802.3u
* WLAN: IEEE 802.11b/g
Data service:
* HSUPA: DL 7.2Mbit/s UL 5.76Mbit/s
* HSDPA: DL 7.2Mbit/s UL 384kbit/s
* WCDMA PS: DL 384kbit/s UL 384kbit/s
* WCDMA CS: DL 64kbit/s UL 64kbit/s
* EDGE: DL 236.8kbit/s UL 236.8kbit/s
* GPRS: DL 85.6kbit/s UL 85.6kbit/s
* GSM CS: DL 14.4kbit/s UL 14.4kbit/s
External Interface:
* Ethernet interface (RJ45): 10/100Base-TX
* Telephone interface (RJ11)
* Power interface (USB, B kind)
* Reset button
* External antenna interface (SMA)
* Aerial switch
LED indicator:
* One power indicator
* One WLAN indicator
* One indicator for signal strength
* One indicator for network mode
* One LINK/ACTIVE indicator for ethernet interface
Power consumption: <8 WAC/DC
Power supply:
* AC: 90V-300V
* DC: 5V, 2A
Temperature:
* Working temperature: -10°C- +45°C
* Storage temperature: -20°C- +70°C
Humidity:5%-95%
Dimensions:
158mm* 105mm *27mm
Weight: < 250g(power supply adapter is not included)
About shipping:
| Shipping time and shipping way | ||||
| Countries or Region | Normally arrive port time | |||
| Express /Courier | Ship by sea | Ship by air | Ship by EMS | |
| DHL/Fedex/TNT/UPS | ||||
| Norht America | 3-7days | 15-24days | 5-7days | 10-12days |
| South America | 3-7days | 15-25days | 5-7days | 15-20days |
| Latin America | 3-7days | 20-28days | 5-7days | 15-20days |
| European countries | 3-7days | 20-30days | 5-7days | 10-12days |
| Afric countries | 5-7days | 45-50days | 5-7days | 15-20days |
| The Middle East | 3-5days | 15-25days | 3-5days | 15-20days |
| Australia | 3-7days | 10-15days | 5-7days | 15-20days |
Shenzhen Rootrust technology Co, Ltd is a company specialized in computer accessories ,smart wifi, 3G, 4G, 5G devices . We offer you the best items with the lowest factory price &Top quality, OEM Service is available, your satisfaction is always our pursuit.
