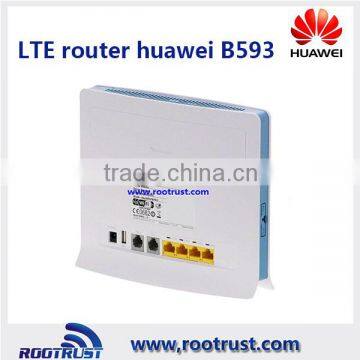

huawei b593 4g wifi router

HUAWEI B593 Technical Specifications

Model Number

HUAWEI B593

SIM Lock Status

Unlocked, SIM Card Free

Form type

4G LTE CPE/4G Router/LTE Gateway

Chipset/platform

Qualcomm MDM9200

Category

LTE Category 3 (3GPP Release 8) WiFi Router

Network Bands

4G/LTE Frequency Bands

B593u-12: Band 1/3/7/8/20 (800/900/1800/2100/2600MHz)

B593s-22:Band 1/3/7/8/20/38 (FDD 800/900/1800/2100/2600MHz & TDD 2600MHz)

B593s-82: Band 38/40 (TDD 2300/2600MHz)

B593s-58: Band 38/39/40 (TDD 1900/2300/2600MHz)

B593s-58b: Band 39/40 (TDD 1900/2300MHz)

B593u-91: Band 38/40 (TDD 2300/2600MHz)

B593u: Band 1/3/5/7/8 (850/900/1800/2100/2600MHz)

B593s: Band 42 (3400-3600MHz)

B593u-513:

B593s-41:

B593u-42:

B593u-501:

B593u-601:

3G UMTS/WCDMA Bands

2100/1900/900/850Mhz(patially support)

2G GPRS/GSM/EDGE

850/900/1800/1900 MHz

Data Rate Speed

4G/LTE FDD link Speed

Downstream: 100Mbit/s or 150Mbps(B593S-22)

Upstream: 50Mbit/s

4G/TD-LTE link Speed

Downstream: 112 Mbit/s

Upstream: 10Mbit/s

3G HSDPA/HSUPA/HSPA+/DC-HSPA+ Link Speed

Downstream: 42Mbit/s

Upstream:5.76Mbit/s

Other Features

MIMO Support

YES

WiFi Support

802.11 b/g/n

Maximum Users Supported

32 Users

SD Card Slot

NO

USB Type

2.0

Power Supply

External supply

External Antenna Connector

2 (SMA connector)

Battery

Capacity: N/A

Working time: N/A

Dimensions

190 mm x 35 mm x 176mm

Weight

500g

OS Supported

Windows/Linux/Mac OS

Supported Operators

Alternative similar models

HUAWEI E5172, Vodafone B2000, ZTE MF28D

Dimensions

190 mm x 35 mm x 176mm

Weight

500g
