Help CenterMicro Ribbon PCB Female Connectors With Spring Approvaled ULE346172
Related Products
-
57 Series Female Centronics 90 Degree Connector for PCB With Board Lock and Bail ClipUS$ 1 - 2MOQ: 1000 Pieces -
Centronic Connector PCB DIP Right AngleSocket TypeNegotiableMOQ: 100 Pieces
-
57 Series Centronics PCB Mounting Right Angle DIP Solder Receptacle Connector Female Champ 2.16mm PitchUS$ 1 - 2MOQ: 1000 Pieces
-
2.16mm Pitch Champ Amphenol 957 100 Pin Reversed Connector Right Angle PCB MountingType DIP Termination Female ReceptacleUS$ 4 - 6MOQ: 100 Pieces
-
Centronics Champ PCB Mounting Right Angle Connector Female Receptacle With Bail ClipUS$ 1 - 2MOQ: 1000 Pieces
Specifications

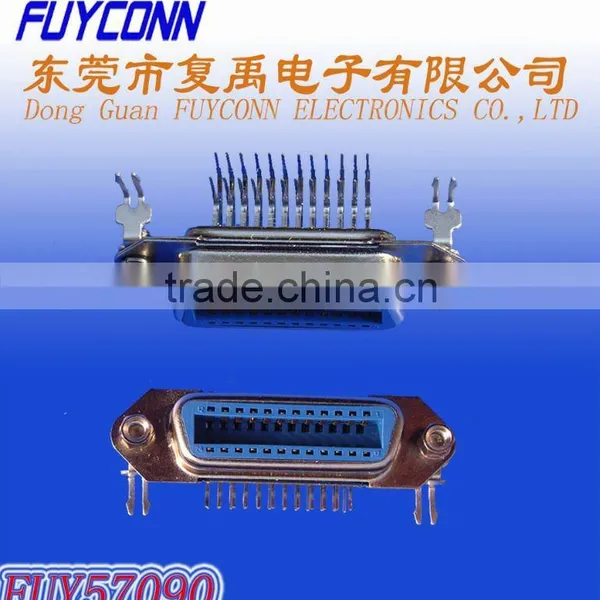

CHAMP PCB DIP RIGHT ANGEL CONNECTORFemale DIP Connectors
Electronics Connectors
3.9mm"Z"Fork Board Lock
ROHS UL E346172
Specifications
1) Product features:
Product Type: Connector
Connector Model: FUY57090
Product Line:CENTRONIC/CHAMP
Connector Style: Female
Orientation:Standard Orientation
Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
PCB Mount Style: Right Angle
2) Mechanical Attachment
Panel Attachment Style:Pan Holes Screw Lock
Plate Mertial:Thermoplastic
Com Material:Thermoplastic
3) Terminal Related Features
Solder Tail Contact Plating: Tin
4) Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,36,50,64pins
PCB Mount Retention Type: Right Angle
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
5) Housing Features
Connector Style:Receptacle
Housing Material: Thermoplastic
UL Flammability Rating: UL 94-V0
6) Special Function
A:90°C DIP Pan Head (11.8*4.8)
B:Screw Lock
C:3.9mm"Z" Fork Board Lock (Both with #4-40 UNC Thread)
7) Finish
Electrical Specifications
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Packaging
Vacuum Tray
Lead Time of sample:7-15days
Application
VDSL Teleccommunications Industry
Computer termial ,Test Equipment
Computer Peripherals,Telemetering etc.
