Help CenterCentronics Champ PCB Mounting Right Angle Connector Female Receptacle With Bail Clip
Related Products
-
TYCO 50 Pin Centronic PCB DIP Right Angle Type Connector FemaleNegotiableMOQ: 500 Pieces -
PCB Mounting Right Angle Female 2.16mm Centerline Pitch Champ Connector DDK DIP Type With Bail ClipUS$ 1 - 2MOQ: 1000 Pieces
-
Centronics Right Angle PCB Mounting Reversed Connectors Female Receptacle With Board LockUS$ 1 - 2MOQ: 1000 Pieces
-
90 Degree PCB Mounting Female Receptacle Type Centronics Connector no Wire HolderUS$ 1 - 2MOQ: 1000 Pieces
-
Centronics Champ Female PCB Mouting Right Angle Header Connector 2.16mm PitchUS$ 1 - 2MOQ: 1000 Pieces
Specifications

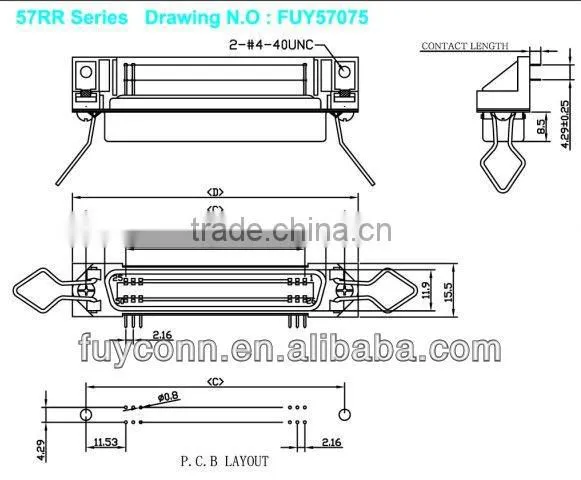

Item No.: FUY570751,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Common Features
| Designed for Cable-to-cable and cable-to-PC Board applications | |
| Board Application | |
| Available in Plug & Socket styles | |
| Terminal Option with various types | |
| Connector and hood sold as complete assembly | |
| Available in low profile hood style | |
| Metal shell provides grounding and shielding capability | |
| Mates with industry compatible connector |
2)Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
4) Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
5) Technology Parameters
