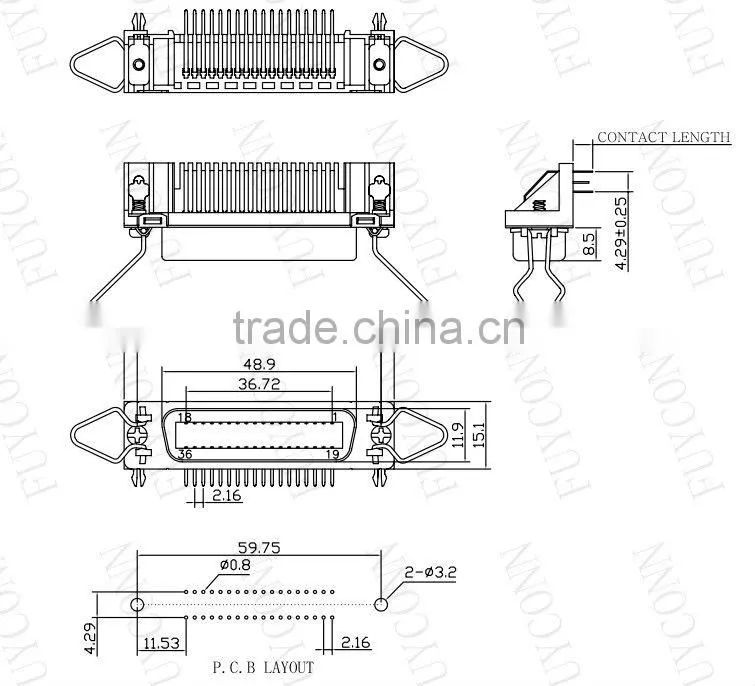

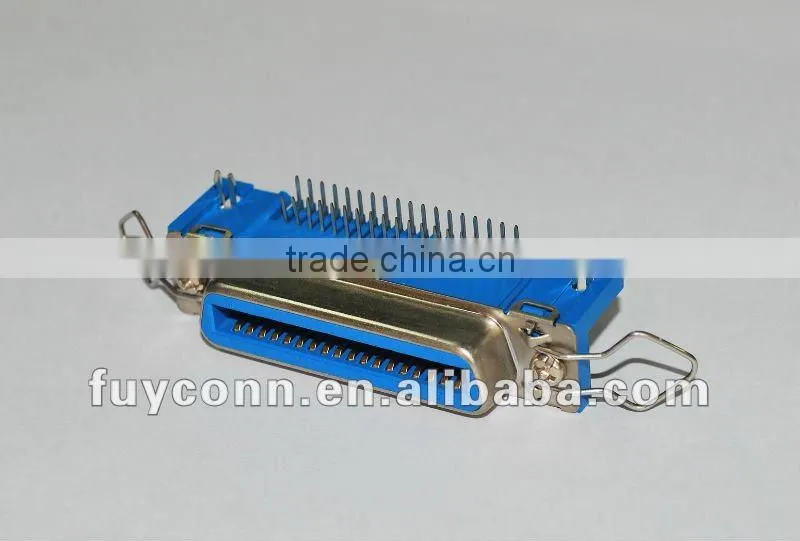

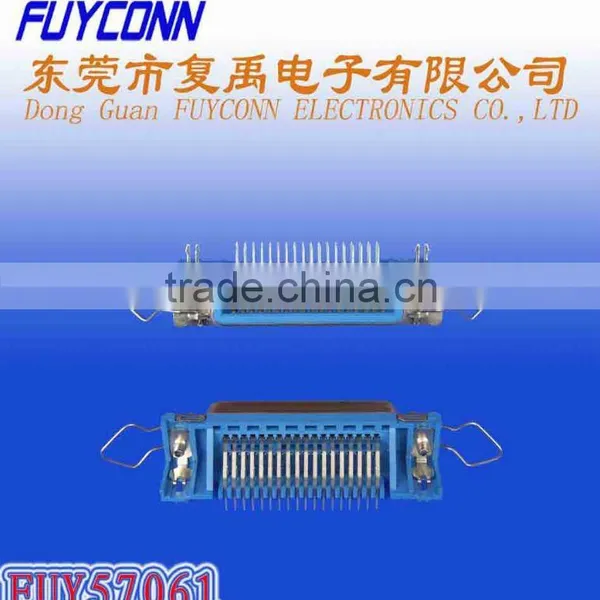

57 Series Female Centronics 90 degree Connector for PCB with Board Lock and Bail Clip
- 1000000 Piece / Pieces per Month
- Guangzhou / Shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | FUYCOONN | Model Number: | FUY57061 |
Type: | Other, 57 Series Connector, Right Angle PCB Connector | Application: | PCB | Gender: | Female |
Product Description
Specifications
Item No.: FUY570611,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Common Features
Designed for Cable-to-cable and cable-to-PC Board applications | |
Board Application | |
Available in Plug & Socket styles | |
Terminal Option with various types | |
Connector and hood sold as complete assembly | |
Available in low profile hood style | |
Metal shell provides grounding and shielding capability | |
Mates with industry compatible connector |
2)Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
3) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
4)Application
1, VDSL Telecom Equipment | |
2, Computer Peripherals | |
3, Communication Equipment | |
4, PCB Board | |
5, Cable to Panel | |
6, Cable to cable | |
7,Computer terminal | |
8,Telemetering | |
9,Test Equipment | |
10, Printer |
5)Technology Parameters
