SSA28T/K SSAL28T/K Series Maintenance Free Stainless Steel Rod End for Steering Linkages in Recreational Snowmobile

FOB Price

US$ 49.18 - 49.18 / Piece

50 Pieces(Min. Order)

Port Shanghai
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	C&H	Bore Size	28,
Model Number	SSA28T/K	Place of Origin	Zhejiang, China
Precision Rating	ABEC-1

Product Description

Specifications

Stainless steel rod end SSA28T/K
1,Maintenance free
2,Low friction
3,Accept small order
4,Available for custom produce

Product Description

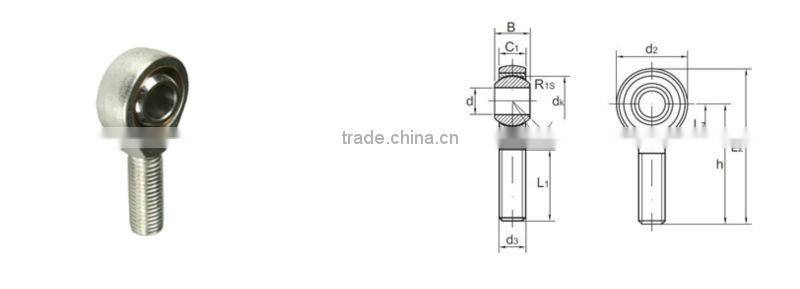

SSA28T/K SSAL28T/K Series stainless steel rod end

Material:

- Rod body :AISI 304

- Inner Ring: AISI 304

- Ball: AISI440

- Sliding contact surface: PTFE

Features:

- It is made up of a radial spherical plain bearing G..PW and rod body

- Rod body with left or right-hand male threads

- MainTenance Free,Stainless steel

- For left-hand thread, please add suffix"L", e.g. SSAL 18 T/K.

Technical Datas:

CODE	Dimension(mm)														Weight KG
CODE	d	d3 6g	B	C1	L1 min	d2	h	L7	L2	dk	R1S	α ≈	dyn. Cd	stat. Cs
SSA 5 T/K	5	M5×0.8	8	6	19	18	33		42	11.11	0.3	13	5.70	6.00	0.013
SSA 6 T/K	6	M6×1.0	9	6.75	21	20	36		46	12.70	0.3	13	7.20	7.65	0.020
SSA 8T/K	8	M8×1.25	12	9	25	24	42		54	15.875	0.3	14	11.6	12.9	0.038
SSA 10T/K	10	M10×1.5	14	10.5	28	28	48		62	19.05	0.3	13	14.5	18	0.055
SSA 12 T/K	12	M12×1.75	16	12	32	32	54		70	22.225	0.3	13	17.0	24	0.085
SSA 12-1T/K	12	M12×1.25	16	12	32	32	54		70	22.225	0.3	13	17.0	24	0.085
SSA 14 T/K	14	M14×2.0	19	13.5	36	36	60	18	78	25.40	0.3	16	24.0	31	0.14
SSA 16T/K	16	M16×2.0	21	15	37	42	66	21	87	28.575	0.3	15	28.5	39	0.21
SSA 16-1 T/K	16	M16×1.5	21	15	37	42	66	21	87	28.575	0.3	15	28.5	39	0.21
SSA 18T/K	18	M18×1.5	23	16.5	41	44	72	22	94	31.75	0.3	15	42.5	47.5	0.28
SSA 20T/K	20	M20×1.5	25	18	45	50	78	25	103	34.925	0.3	14	42.5	57	0.38
SSA 22 T/K	22	M22×1.5	28	20	48	54	84	27	111	38.10	0.3	15	57	68	0.48
SSA 25 T/K	25	M24×2.0	31	22	55	60	94	30	124	42.86	0.3	15	68	85	0.64
SSA 28 T/K	28	M27×2.0	35	24	62	66	103	33	136	47.63	0.3	15	86	107	0.80
SSA 30 T/K	30	M30×2.0	37	25	66	70	110	35	145	50.80	0.3	17	88	114	1.1
