Help CenterCam Roller -LR6
US$ 1 - 10
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
C&H
Bore Size:
4, 45
Outside Diameter:
13, 90
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Yoke Type Track Roller - LR52, LR53US$ 1 - 10MOQ: 1000 Pieces -
Cam Roller - LR52, LR53US$ 1 - 10MOQ: 1000 Pieces
-
Yoke Type Track Roller -LR6US$ 1 - 10MOQ: 1000 Pieces
-
U Groove Track Roller Bearing With Gothic Arch Grooved Outer Ring for Linear Motion SystemUS$ 3.22 - 17.91MOQ: 100 Pieces
-
W2 2RS 9.525mm Bore Dual V Guide Wheel Sealed Precision Double Row Angular Contact Ball BearingsUS$ 5.25 - 5.53MOQ: 100 Pieces
Brand Name
C&H
Bore Size
4, 45
Outside Diameter
13, 90
Precision Rating
ABEC-1, 3, 5
Seals Type
ZZ OR 2RS
Number of Row
Single Row
Place of Origin
China
Specifications

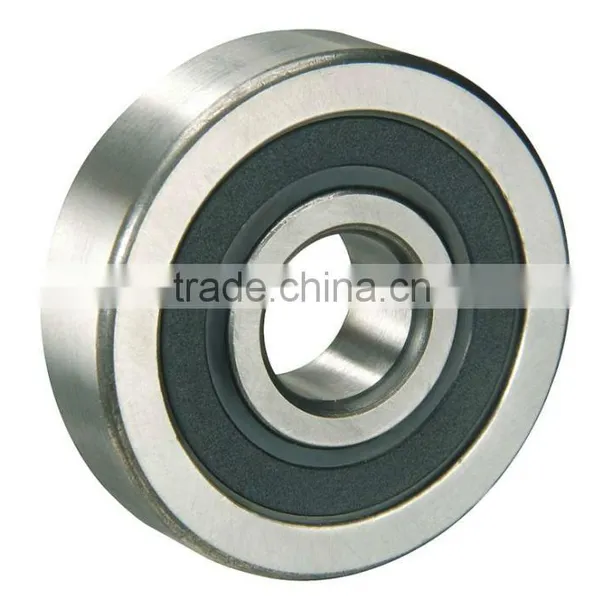

Cam roller -LR6Cam roller - LR6
Material: Chrome Steel AISI52100; Stainless Steel- AISI440C
Runner Surface Shape: Cylindrical and Crowned
Suffix and Prefix :
- ZZ Double metal shields
- 2RS Double nitrile rubber Seals
- LR Cylindrical unner surface
- LRU Crowned runner surface with R=500
Tolerance and Clearance: ABEC-1,3,5 ; C0, C3
Characters:
- Deep Groove Ball, Thicker Outer Rings, Heavy Duty
- Low resistance, long life, widely-use
- Easy installation,smooth running,minimun error
| Bearing No | Dimensions (mm) | Load Ratings | Speed | Mass | ||||||||
| 2RS | ZZ | d | D | B | C | R | Rs | Cw(N) | Cow(N) | 2RS | ZZ | ≈(g) |
| LR604 2RS | LR604 ZZ | 4 | 13 | 4 | 4 | - | 0.2 | 860 | 350 | 24000 | 35000 | 10 |
| LRU604 2RS | LRU604 ZZ | 4 | 13 | 4 | 4 | 500 | 0.2 | 860 | 350 | 24000 | 35000 | 10 |
| LR605 2RS | LR605 ZZ | 5 | 16 | 5 | 5 | - | 0.2 | 1190 | 490 | 23000 | 33000 | 10 |
| LRU605 2RS | LRU605 ZZ | 5 | 16 | 5 | 5 | 500 | 0.2 | 1190 | 490 | 23000 | 33000 | 10 |
| LR606 2RS | LR606 ZZ | 6 | 19 | 6 | 6 | - | 0.3 | 1740 | 700 | 22000 | 31000 | 10 |
| LRU606 2RS | LRU606 ZZ | 6 | 19 | 6 | 6 | 500 | 0.3 | 1740 | 700 | 22000 | 31000 | 10 |
| LR607 2RS | LR607 ZZ | 7 | 22 | 6 | 6 | - | 0.3 | 2130 | 870 | 20000 | 29000 | 10 |
| LRU607 2RS | LRU607 ZZ | 7 | 22 | 6 | 6 | 500 | 0.3 | 2130 | 870 | 20000 | 29000 | 10 |
| LR608 2RS | LR608 ZZ | 8 | 24 | 7 | 7 | - | 0.3 | 2750 | 1250 | 19000 | 28000 | 20 |
| LRU608 2RS | LRU608 ZZ | 8 | 24 | 7 | 7 | 500 | 0.3 | 2750 | 1250 | 19000 | 28000 | 20 |
| LR6000 2RS | LR6000 ZZ | 10 | 28 | 8 | 8 | - | 0.3 | 3650 | 1700 | 17000 | 24000 | 20 |
| LRU6000 2RS | LRU6000 ZZ | 10 | 28 | 8 | 8 | 500 | 0.3 | 3650 | 1700 | 17000 | 24000 | 20 |
| LR6001 2RS | LR6001 ZZ | 12 | 30 | 8 | 8 | - | 0.3 | 4300 | 2100 | 16000 | 22000 | 30 |
| LRU 6001 2RS | LRU6001 ZZ | 12 | 30 | 8 | 8 | 500 | 0.3 | 4300 | 2100 | 16000 | 22000 | 30 |
| LR6200 2RS | LR6200 ZZ | 10 | 32 | 9 | 9 | - | 0.6 | 4350 | 2130 | 13000 | 17000 | 50 |
| LRU6200 2RS | LRU6200 ZZ | 10 | 32 | 9 | 9 | 500 | 0.6 | 4350 | 2130 | 13000 | 17000 | 50 |
| LR6201 2RS | LR6201 ZZ | 12 | 35 | 10 | 10 | - | 0.6 | 5600 | 2700 | 12000 | 15000 | 50 |
| LRU6201 2RS | LRU6201 ZZ | 12 | 35 | 10 | 10 | 500 | 0.6 | 5600 | 2700 | 12000 | 15000 | 50 |
| LR6202 2RS | LR6202 ZZ | 15 | 40 | 11 | 11 | - | 0.6 | 6500 | 3300 | 11000 | 13000 | 70 |
| LRU6202 2RS | LRU6202 ZZ | 15 | 40 | 11 | 11 | 500 | 0.6 | 6500 | 3300 | 11000 | 13000 | 70 |
| LR6203 2RS | LR6203 ZZ | 17 | 47 | 12 | 12 | - | 0.6 | 8400 | 4400 | 9000 | 12000 | 110 |
| LRU6203 2RS | LRU6203 ZZ | 17 | 47 | 12 | 12 | 500 | 0.6 | 8400 | 4400 | 9000 | 12000 | 110 |
| LR6204 2RS | LR6204 ZZ | 20 | 52 | 14 | 14 | - | 1 | 10500 | 5600 | 8000 | 10000 | 150 |
| LRU6204 2RS | LRU6204 ZZ | 20 | 52 | 14 | 14 | 500 | 1 | 10500 | 5600 | 8000 | 10000 | 150 |
| LR6205 2RS | LR6205 ZZ | 25 | 62 | 15 | 15 | - | 1 | 12500 | 7100 | 7000 | 8500 | 230 |
| LRU6205 2RS | LRU6205 ZZ | 25 | 62 | 15 | 15 | 500 | 1 | 12500 | 7100 | 7000 | 8500 | 230 |
| LR6206 2RS | LR6206 ZZ | 30 | 72 | 16 | 16 | - | 1 | 16600 | 9600 | 5500 | 7500 | 330 |
| LRU6206 2RS | LRU6206 ZZ | 30 | 72 | 16 | 16 | 500 | 1 | 16600 | 9600 | 5500 | 7500 | 330 |
| LR6207 2RS | LR6207 ZZ | 35 | 80 | 17 | 17 | - | 1.1 | 20200 | 11900 | 4500 | 6300 | 400 |
| LRU6207 2RS | LRU6207 ZZ | 35 | 80 | 17 | 17 | 500 | 1.1 | 20200 | 11900 | 4500 | 6300 | 400 |
| LR6208 2RS | LR6208 ZZ | 40 | 85 | 18 | 18 | - | 1.1 | 22800 | 13600 | 4000 | 5000 | 450 |
| LRU6208 2RS | LRU6208 ZZ | 40 | 85 | 18 | 18 | 500 | 1.1 | 22800 | 13600 | 4000 | 5000 | 450 |
| LR6209 2RS | LR6209 ZZ | 45 | 90 | 19 | 19 | - | 1.1 | 22500 | 13700 | 3600 | 4500 | 500 |
| LRU6209 2RS | LRU6209 ZZ | 45 | 90 | 19 | 19 | 500 | 1.1 | 22500 | 13700 | 3600 | 4500 | 500 |
