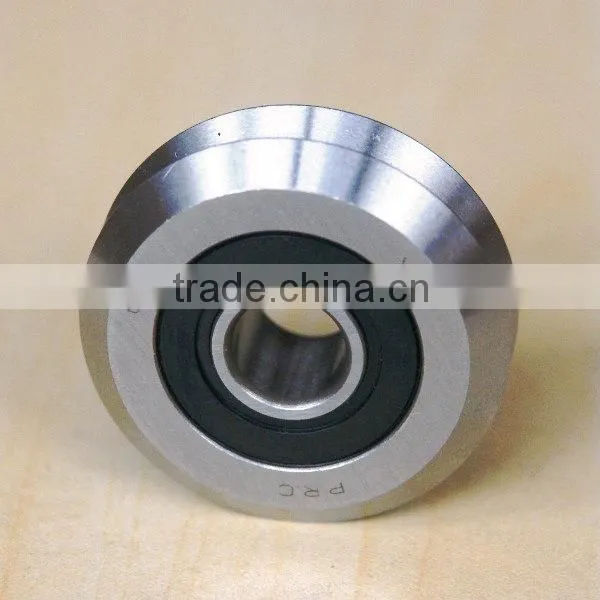

W3 2RS 12mm Bore Dual V Guide Wheel Sealed Precision Double Row Angular Contact Ball Bearings

Specifications

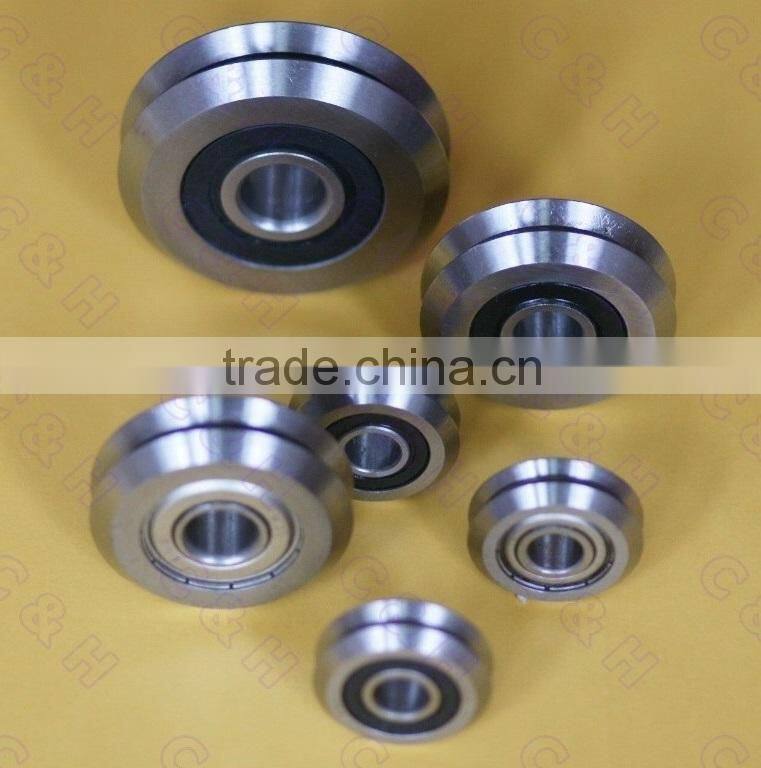

C&H  Dual V Guide Wheels is the main components of the Linear Motion System. Guide wheels can be mounted vertically or horizontally to suite differing space and application requirements. Additionally, guide wheels can be used to support rotary motion. The rollers  can be widely used in the industrial robot, cutting machine, motion track,  vending machines , production flow and so on.

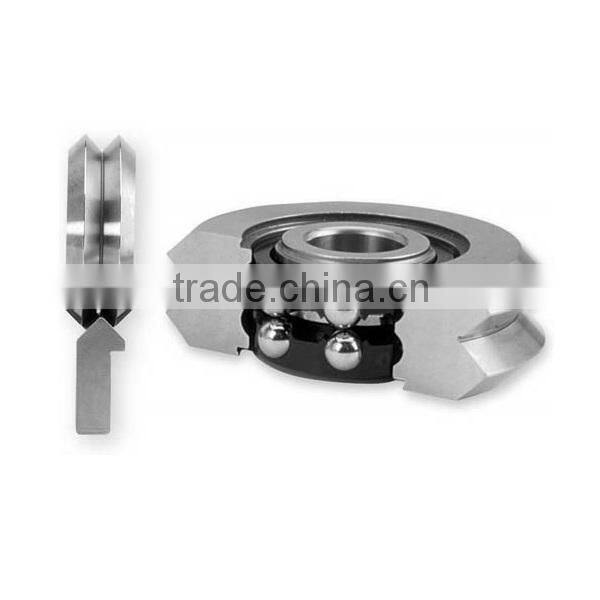

• For internal or external 90-degree ways even for round shafts                    • 52100 Bearing Steel or 440 Stainless Steel                  • Permanently grease lubricated                  • Available with 304 Stainless Steel shields or nitrile rubber seals                  • Low friction guidance and easy installation

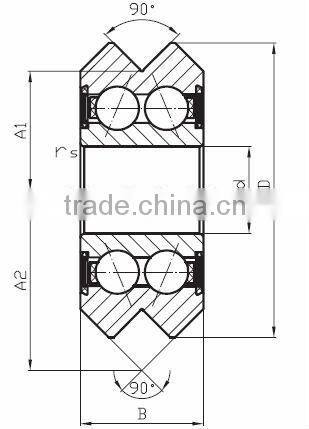

C&H No.	Dimensions (mm)						Load Ratings(N)		Mass
	d	D	B	A1	A2	rs	Radial	Axial	≈(g)
W1 2RS	4.763	19.56	7.87	7.93	11.86	0.3	1260	297	11
W1 ZZ	4.763	19.56	7.87	7.93	11.86	0.3	1260	297	11
W2 2RS	9.525	30.73	11.1	12.7	18.24	0.3	2730	632	38
W2 ZZ	9.525	30.73	11.1	12.7	18.24	0.3	2730	632	38

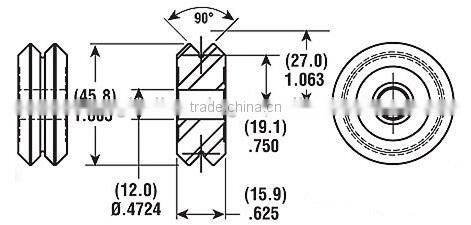

W3 2RS	12	45.72	15.88	19.05	26.98	0.6	6160	1448	130
W3 ZZ	12	45.72	15.88	19.05	26.98	0.6	6160	1448	130
W4 2RS	15	59.94	19.05	25.4	34.93	1	9990	2310	280
W4 ZZ	15	59.94	19.05	25.4	34.93	1	9990	2310	280
W4L 2RS	15	75.39	25.40	31.75	44.45	1.1	20000	4623	580
SW0 2RS	4	14.84	6.35	5.94	9.12	0.3	1480	660	5
SW1 2RS	4.763	19.56	7.87	7.93	11.86	0.3	1260	297	11
SW2 2RS	9.525	30.73	11.1	12.7	18.24	0.3	2730	632	38
SW3 2RS	12	45.72	15.88	19.05	26.98	0.6	6160	1448	130
SW4 2RS	15	59.94	19.05	25.4	34.93	1	9990	2310	280
SW4L 2RS	15	75.39	25.40	31.75	44.45	1.1	20000	4623	580

Packing

• For express ( Plastic Tube + Neutral Boxes + Neutral Cartons )

• By vessel ( Placstic Tube + Neutral Cartons + Plywood Pallets or Cases )

Delivery ways and Times

• 3~7 days ( Door to door servies )  by FEDEX / DHL / UPS ...

• 35~60 days by vessel for big amount order

• Free Sample

• Customer brand and Packing  is available

• Customer size is available in condition of a commercial quantity

Welcome to Shanghai C&H Bearings Co., Ltd

Established in 2006, the C&H pioneering and professionalism commitment to the bearing and transmission component markets. Through over seven years of exploration in those markets, C&H has built a high level of technical and services team.

Nowadays, C&H has gained extensive customer recognition in the bearing and transmission market with its professional services. It has developed customers over 20 countries and regions. In particular, it has nurtured good reputation in South America.

C&H owns not only an outstanding technical service delivery team within China, but also powerful supply chain and integration capacity as well as wide product range that contributes to the one-stop, customized solution for customers.

Our customers can buy bearings, auto parts, trucks and trailer parts from C&H, majority of which are industry bearings, automotive bearings. These products can be produced according to the specific requirements of customers. Besides, all of our products have passed through the authentication of ISO9001 and TS16949.

C&H adheres to the pursuit of excellence, strives for perfection, values customer satisfaction most.

C&H will continue to strive for excellence, deliver C&H products to all over the worlds, so that more users can enjoy our products and services!

Welcome your any inquiry !

Give Us a Chance, Return You a Surprise!

A. For Track Roller and Guide Wheels, If C&H can produce more precision wheels?

By now, the available tolerance for C&H is UP to ABEC-3.

B. If C&H can produce low noise track roller and guide wheels, what's the grade?

Yes, Z1 is avaiable.

C. If C&H can supply concentric or eccentric bushings ?

We are developing these product.

We also supply V Guide Wheel, LFR Series Yoke Type Track Rollers, Cam Rollers and Wire Straightening Wheels .......
