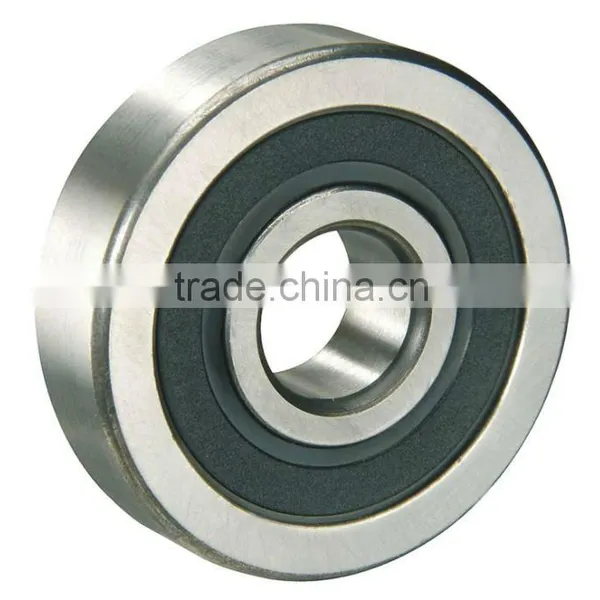

Cam Roller - LR52, LR53

Cam Roller - LR52, LR53 thumbnail-1
Cam Roller - LR52, LR53 photo-1
US$ 1 - 10 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
C&H
Bore Size:
5, 40
Outside Diameter:
17, 100
Contact Supplier Request Quote Chat Now
Shanghai Chenghui Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name C&H
Bore Size 5, 40
Outside Diameter 17, 100
Precision Rating ABEC-1,3,5
Seals Type ZZ OR 2RS
Number of Row Double Row
Place of Origin China

Specifications

double row angular contact ball bearings
Cylindrical or crowned profile outer ring

Cam roller - LR52, LR53 series



- Material:  Chrome Steel AISI52100;  Stainless Steel- AISI440C

- Runner Surface Shape: Cylindrical and Crowned



- Suffix and Prefix :

   ZZ     Double metal shields

   2RS  Double nitrile rubber Seals

   LR    Cylindrical unner surface

  LRU  Crowned runner surface with R=500



Tolerance and Clearance:  ABEC-1,3,5 ;  C0, C3



Characters:

- Double Row Angular Contact Ball Bearings

- Thicker Outer Rings, Heavy Duty

- Low resistance, long life, widely-use

- Easy installation,smooth running,minimun error



Bearing No Dimensions (mm) Load Ratings Speed Mass
2RS ZZ d D B C R Rs Cw(N) Cow(N) 2RS ZZ ≈(g)
LR 50/5 2RS LR 50/5 ZZ 5 17 7 7 - 0.2 1650 950 12000 16000 10
LRU 50/5 2RS LRU 50/5 ZZ 5 17 7 7 500 0.2 1650 950 12000 16000 10
LR 50/6 2RS LR 50/6 ZZ 6 19 9 9 - 0.3 2650 1310 11000 15000 20
LRU 50/6 2RS LRU 50/6 ZZ 6 19 9 9 500 0.3 2650 1310 11000 15000 20
LR 50/7 2RS LR 50/7 ZZ 7 22 10 10 - 0.3 3300 1690 10000 14000 20
LRU 50/7 2RS LRU 50/7 ZZ 7 22 10 10 500 0.3 3300 1690 10000 14000 20
LR 50/8 2RS LR 50/8 ZZ 8 24 11 11 - 0.3 4200 2360 10000 14000 30
LRU 50/8 2RS LRU 50/8 ZZ 8 24 11 11 500 0.3 4200 2360 10000 14000 30
LR 5000 2RS LR 5000 ZZ 10 28 12 12 - 0.3 4750 2850 9000 13000 30
LRU 5000 2RS LRU 5000 ZZ 10 28 12 12 500 0.3 4750 2850 9000 13000 30
LR 5001 2RS LR 5001 ZZ 12 30 12 12 - 0.3 4950 3100 8500 11000 30
LRU 5001 2RS LRU 5001 ZZ 12 30 12 12 500 0.3 4950 3100 8500 11000 30
LR 5002 2RS LR 5002 ZZ 15 35 13 13 - 0.3 6500 4100 7000 10000 50
LRU 5002 2RS LRU 5002 ZZ 15 35 13 13 500 0.3 6500 4100 7000 10000 50
LR 5003 2RS LR 5003 ZZ 17 40 14 14 - 0.3 7700 5200 6000 9000 70
LRU 5003 2RS LRU 5003 ZZ 17 40 14 14 500 0.3 7700 5200 6000 9000 70
LR 5004 2RS LR 5004 ZZ 20 47 16 16 - 0.6 11500 7700 5500 8000 120
LRU 5004 2RS LRU 5004 ZZ 20 47 16 16 500 0.6 11500 7700 5500 8000 120
LR 5005 2RS LR 5005 ZZ 25 52 16 16 - 0.6 11600 8100 4700 7000 150
LRU 5005 2RS LRU 5005 ZZ 25 52 16 16 500 0.6 11600 8100 4700 7000 150
LR 5006 2RS LR 5006 ZZ 30 62 19 19 - 1 17200 11100 4000 6000 250
LRU 5006 2RS LRU 5006 ZZ 30 62 19 19 500 1 17200 11100 4000 6000 250
LR 5007 2RS LR 5007 ZZ 35 68 20 20 - 1 17600 13100 4000 5300 300
LRU 5007 2RS LRU 5007 ZZ 35 68 20 20 500 1 17600 13100 4000 5300 300
LR 5200 2RS LR 5200 ZZ 10 32 14 14 - 0.6 6800 4050 8000 11000 70
LRU 5200 2RS LRU 5200 ZZ 10 32 14 14 500 0.6 6800 4050 8000 11000 70
LR 5201 2RS LR 5201 ZZ 12 35 15.9 15.9 - 0.6 8600 5100 7500 10000 80
LRU 5201 2RS LRU 5201 ZZ 12 35 15.9 15.9 500 0.6 8600 5100 7500 10000 80
LR 5202 2RS LR 5202 ZZ 15 40 15.9 15.9 - 0.6 9800 6200 7000 10000 110
LRU 5202 2RS LRU 5202 ZZ 15 40 15.9 15.9 500 0.6 9800 6200 7000 10000 110
LR 5203 2RS LR 5203 ZZ 17 47 17.5 17.5 - 0.6 12600 8200 5500 7500 170
LRU 5203 2RS LRU 5203 ZZ 17 47 17.5 17.5 500 0.6 12600 8200 5500 7500 170
LR 5204 2RS LR 5204 ZZ 20 52 20.6 20.6 - 1 15800 10500 5000 7000 230
LRU 5204 2RS LRU 5204 ZZ 20 52 20.6 20.6 500 1 15800 10500 5000 7000 230
LR 5205 2RS LR 5205 ZZ 25 62 20.6 20.6 - 1 18500 13000 4500 6500 340
LRU 5205 2RS LRU 5205 ZZ 25 62 20.6 20.6 500 1 18500 13000 4500 6500 340
LR 5206 2RS LR 5206 ZZ 30 72 23.8 23.8 - 1 24600 21400 3500 5000 510
LRU 5206 2RS LRU 5206 ZZ 30 72 23.8 23.8 500 1 24600 21400 3500 5000 510
LR 5207 2RS LR 5207 ZZ 35 80 27 27 - 1.1 30500 22400 2800 3900 660
LRU 5207 2RS LRU 5207 ZZ 35 80 27 27 500 1.1 30500 22400 2800 3900 660
LR 5208 2RS LR 5208 ZZ 40 85 30.2 30.2 - 1.1 34500 25500 2500 3500 750
LRU 5208 2RS LRU 5208 ZZ 40 85 30.2 30.2 500 1.1 34500 25500 2500 3500 750
LR 5302 2RS LR 5302 ZZ 15 47 19 19 - 1 14600 9200 6500 10000 150
LRU 5302 2RS LRU 5302 ZZ 15 47 19 19 500 1 14600 9200 6500 10000 150
LR 5303 2RS LR 5303 ZZ 17 52 22.2 22.2 - 1 17200 11100 4700 6500 210
LRU 5303 2RS LRU 5303 ZZ 17 52 22.2 22.2 500 1 17200 11100 4700 6500 210
LR 5304 2RS LR 5304 ZZ 20 62 22.2 22.2 - 1.1 21100 14500 4500 6500 340
LRU 5304 2RS LRU 5304 ZZ 20 62 22.2 22.2 500 1.1 21100 14500 4500 6500 340
LR 5305 2RS LR 5305 ZZ 25 72 25.4 25.4 - 1.1 27500 19500 3900 5500 500
LRU 5305 2RS LRU 5305 ZZ 25 72 25.4 25.4 500 1.1 27500 19500 3900 5500 500
LR 5306 2RS LR 5306 ZZ 30 80 30.2 30.2 - 1.1 36500 26500 3100 4300 670
LRU 5306 2RS LRU 5306 ZZ 30 80 30.2 30.2 500 1.1 36500 26500 3100 4300 670
LR 5307 2RS LR 5307 ZZ 35 90 34.9 34.9 - 1.5 44500 33000 2500 3600 970
LRU 5307 2RS LRU 5307 ZZ 35 90 34.9 34.9 500 1.5 44500 33000 2500 3600 970
LR 5308 2RS LR 5308 ZZ 40 100 36.5 36.5 - 1.5 56000 42000 2300 3300 1200
LRU 5308 2RS LRU 5308 ZZ 40 100 36.5 36.5 500 1.5 56000 42000 2300 3300 1200
