Spherical Plain Bearing Rod Ends Requiring Maintenance POS & PHS With Male and Female Thread Rod End Bearing Bearings

FOB Price

US$ 1 - 54 / Piece

100 Pieces(Min. Order)

Port Shanghai
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	C&H	Bore Size	5, 30
Model Number	POS & PHS	Place of Origin	Zhejiang, China
Precision Rating	ABEC-1

Product Description

Specifications

1,easy to install
2,Low friction
3,Durable
4,Short delivery time
5,Accept small order

spherical plain bearing rod ends requiring maintenance POS & PHS with male and female thread rod end bearing bearings

Product Description

Features:

- Outer race lined with bronze liner.

- Rod body with right or left-hand male & female thread.

- Surface of rod body zinc plated, rod body with a lubricating hole or grease nipple.

- Mainenance Required

Advantages:

- Easy to install
- Low friction
- Durable
- Short delivery time
- Accept small order

Technical Datas:

Part No.	Dimensions mm									Load ratings KN					Weight Kg
	d		d3 6g	B	C1	L1 min	d2	h	L2		dk	R1S	d1	α ≈			dyn. Cd	stat. Cs
POS 5		5	M5×0.8	8	6	20	16	33	41		11.11	0.3	7.70	13		3.25	5.70		0.013
POS 6		6	M6×1.0	9	6.75	22	18	36	45		12.70	0.3	8.96	13		4.30	7.20		0.020
POS 8		8	M8×1.25	12	9	25	22	42	53		15.875	0.3	10.4	14		7.20	11.6		0.030
POS 10		10	M10×1.5	14	10.5	29	26	48	61		19.05	0.3	12.9	13		10	14.5		0.055
POS 12		12	M12×1.75	16	12	33	30	54	69		22.225	0.3	15.4	13		13.4	17		0.085
POS 12-1		12	M12×1.25	16	12	33	30	54	69		22.225	0.3	15.4	13		13.4	17		0.085
POS 14		14	M14×2.0	19	13.5	36	34	60	77		25.40	0.3	16.9	16		17	24		0.14
POS 16		16	M16×2.0	21	15	40	40	66	86		28.575	0.3	19.4	15		21.6	28.5		0.21
POS 16-1		16	M16×1.5	21	15	40	40	66	86		28.575	0.3	19.4	15		21.6	28.5		0.21
POS 18		18	M18×1.5	23	16.5	44	44	72	94		31.75	0.3	21.9	15		26	42.5		0.28
POS 20		20	M20×1.5	25	18	47	50	78	103		34.925	0.3	24.4	14		31.5	52.5		0.38
POS 22		22	M22×1.5	28	20	51	54	84	111		38.10	0.3	25.8	15		38	57		0.48
POS 25		25	M24×2.0	31	22	57	60	94	124		42.86	0.3	29.6	15		47.5	68		0.64
POS 28		28	M27×2.0	35	24	62	66	103	136		47.63	0.3	32.3	15		58	75.5		0.96
POS 30		30	M30×2.0	37	25	66	70	110	145		50.8	0.3	34.8	17		64	88		1.10

Part No.	Dimensions mm										Load ratings KN						Weight Kg
	d		d3 6H	B	C1	W	L3 min	d2	L4	h1	L5	d4	d5	dk	d1	α ≈			dyn. Cd		stat. Cs
PHS 4		4	M4×0.7	7	5.25	8	8	14	31	24	4	8	9.5	9.525	6.5	13		3.0		5.0		0.009
PHS 5		5	M5×0.8	8	6	9	10	16	35	27	4	8.5	11	11.11	7.70	13		3.25		5.70		0.016
PHS 6		6	M6×1.0	9	6.75	11	12	18	39	30	5	10	13	12.70	8.96	13		4.3		7.20		0.022
PHS 8		8	M8×1.25	12	9	14	16	22	47	36	5	12.5	16	15.875	10.4	14		7.2		11.6		0.047
PHS10		10	M10×1.5	14	10.5	17	20	26	56	43	6.5	15	19	19.05	12.9	13		10		14.5		0.077
PHS 10-1		10	M10×1.25	14	10.5	17	20	26	56	43	6.5	15	19	19.05	12.9	13		10		14.5		0.077
PHS 12		12	M12×1.75	16	12	19	22	30	65	50	6.5	17.5	22	22.225	15.4	13		13.4		17		0.10
PHS 12-1		12	M12×1.25	16	12	19	22	30	65	50	6.5	17.5	22	22.225	15.4	13		13.4		17		0.10
PHS 14		14	M14×2.0	19	13.5	22	25	34	74	57	8	20	25	25.40	16.9	16		17		24		0.16
PHS 14-1		14	M14×1.5	19	13.5	22	25	34	74	57	8	20	25	25.40	16.9	16		17		24		0.16
PHS 16		16	M16×2.0	21	15	22	28	40	84	64	8	22	27	28.575	19.4	15		21.6		28.5		0.22
PHS 16-1		16	M16×1.5	21	15	22	28	40	84	64	8	22	27	28.575	19.4	15		21.6		28.5		0.22
PHS 18		18	M18×1.5	23	16.5	27	32	44	93	71	10	25	31	31.75	21.9	15		26		42.5		0.32
PHS 20		20	M20×1.5	25	18	30	33	50	102	77	10	27.5	34	34.925	24.4	14		31.5		42.5		0.42
PHS 22		22	M22×1.5	28	20	32	37	54	111	84	12	30	38	38.10	25.8	15		38		57		0.54
PHS 25		25	M24×2.0	31	22	36	42	60	124	94	12	33.5	42	42.86	29.6	15		47.5		68		0.73
PHS 28		28	M27×2.0	35	24	41	48	66	136	103	14	37	46	47.63	32.3	15		58		75		0.98
PHS 30		30	M30×2.0	37	25	41	51	70	145	110	15	40	50	50.8	34.8	17		64		88		1.10
PHS 30-1		30	M27×2.0	37	25	41	51	70	145	110	15	40	50	50.8	34.8	17		64		88		1.10

Packaging & Shipping

- Industry neutral packing

- Individual single boxes

- on customer's request

Our Services

1. Free sample

2. Customized specifications are accepted

3. Quickly delivery service

- In order to give better and on time service, most of our products have stock

- For the items we have no stock, it will only need 20 ~ 30 days to produce

Factory & Production Process

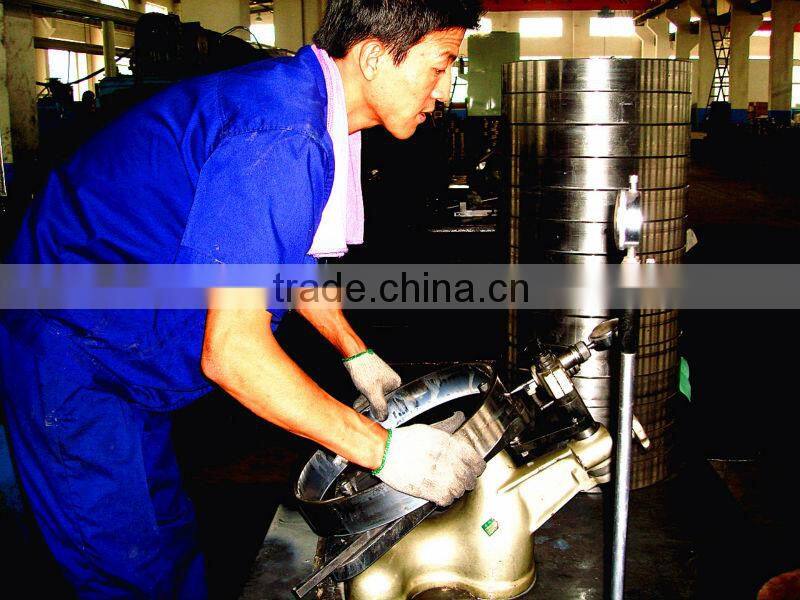

Heat Treating

Polishing

Final Products

Quality Testing

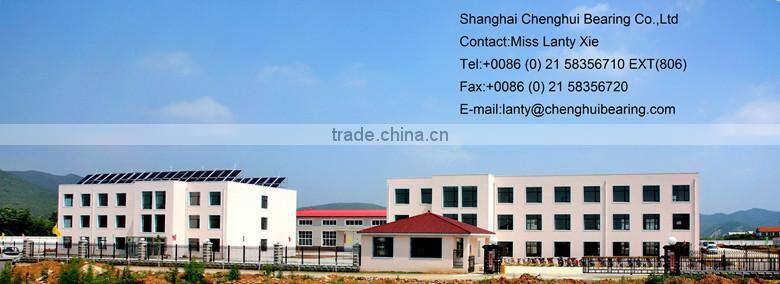

Factory Image
