building electrical cable single core strander copper wire BV/BVR electrical wires
- 1000000 Meter / Meters per Month
- Qingdao or as your requirement
- T/T L/C D/P D/A Credit Card PayPal
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Henan, China | Brand Name: | DAYUAN | Model Number: | BV/BVR-WL |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Other, building electrical cable |
Conductor Material: | Other, copper | Jacket: | PVC |
Product Description
building electrical cable single core strander copper wire BV/BVR electrical wires
The product description:
Type | H05V-U, H07V-U, H07V-R, BS6004 6491X, BV, BVR | |
Voltage Rate | 300/500V, 450/750V | |
Range of Nominal cross section: | 0.75 mm2 ~ 630 mm2 | |
Application | These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation. | |
Standard | IEC 60227, BS 6004, VDE0281, GB/T 5023, JB/T8734 | |
Constructions | Conductor: Class 1/2 Plain annealed copper wires, solid or stranded Insulation: PVC Core color: Red, Brown, Grey, Black, Blue, Green/Yellow or others on request | |
Max. Operating Temperature | 70°C, can be 90°C,105°C as per requirement | |

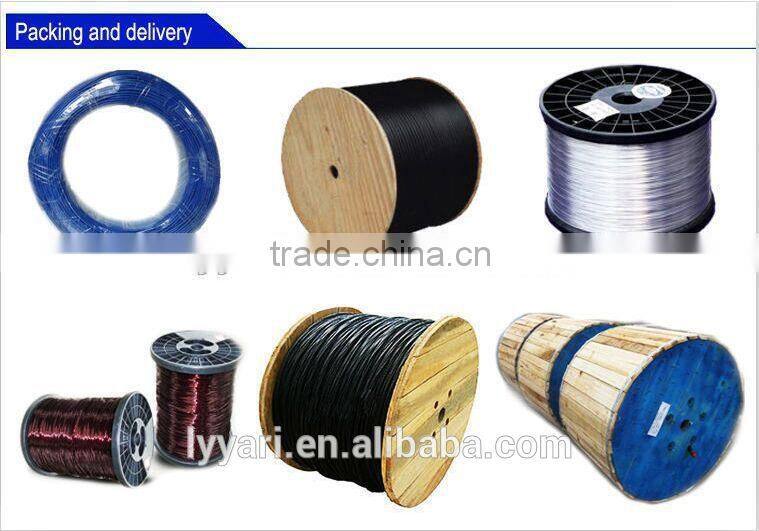

Packing | 100 meter/roll or as per requirement | |
Production Capacity | 100 kilometer/ day | |
MOQ | 10000 meters for small size, 5000 meters for middle size, 1000 meters for big size | |
Delivery time | 10~15 working days | |
Remark | The cable can be of flame retardance, fire resistance and other property |

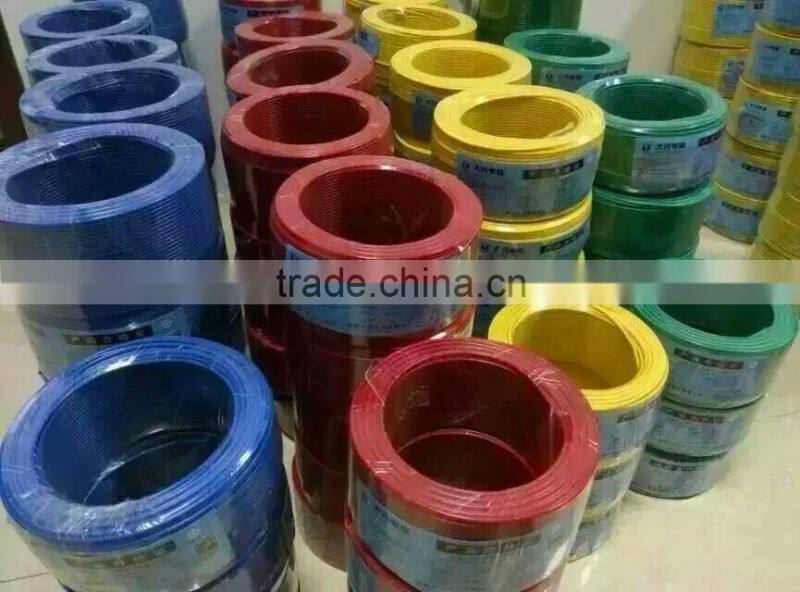

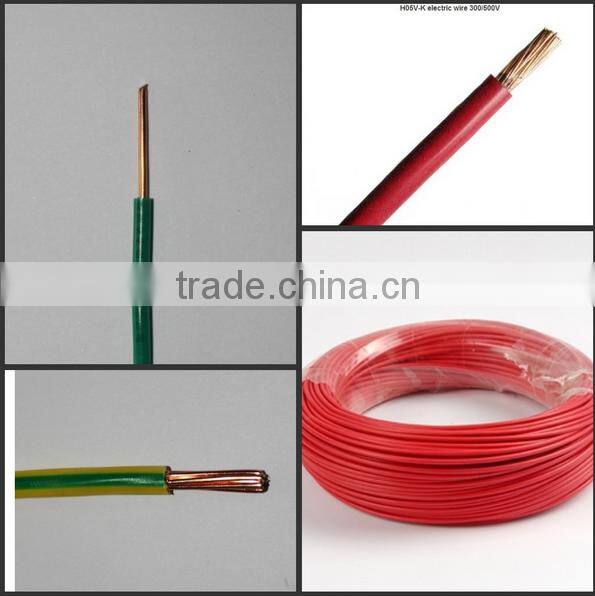

Product display :
Company Information
Luoyang Asian Sun Industrial Group Co., Ltd, a professional wires and cables manufacturer for 6 years in China. Asian Sun attends International Exhibitions every year, we support to offer many kinds of wires and cables, such as xlpe/pvc electrical cable, control cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc.

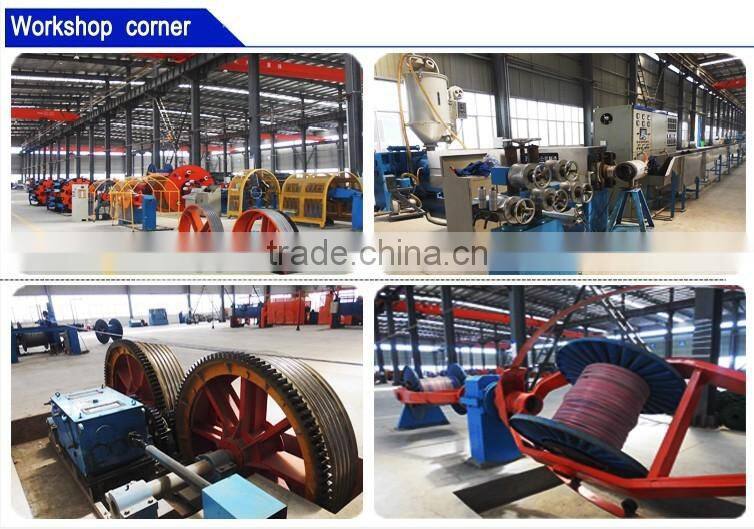

1. Factory: 200,081 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, ;
4. Payment terms: T/T, L/C;
5. Guarantee: 17 years;

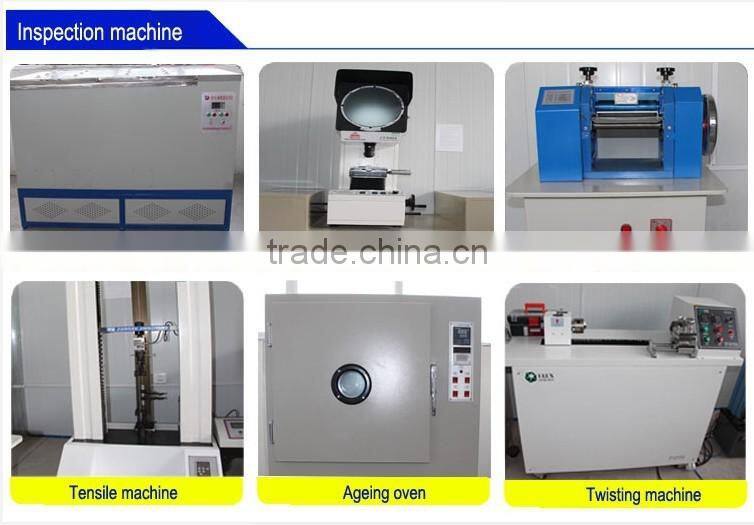

6. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
Specifications
solar cable 1, IEC, ASTM, DIN, BS VDE, UL, GOST,SAS standard.
2,TUV, ISO, CCC, CQC certification approved. 8 Years Experience of OEM
