Specifications
1, IEC, ASTM, DIN, BS VDE, UL, GOST,SAS standard.2, ISO, CCC, CQC certification approved. ABC cable

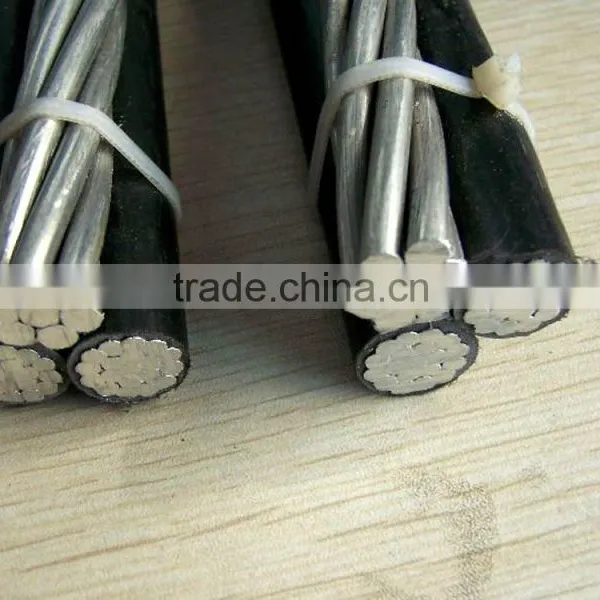

Application low voltage PE insulated 2+1 core aerial bundled ABC cables
Detail Description or Construction
Conductor
Concentric strand or compressed 1350-H19 Conductor, Concentric strand AAC, or AAAC alloy neutral messenger
Insulation
Polyethylene or Cross-Linked Polyethylene insulation (XLPE)
Application
To supply 600/1000 volt aerial service for
temporary service at construction sites,
as a Service Drop (Power pole to service entrance), as a secondary cable (pole to pole) or street lighting. For service at 600volts or lower at a maximum conductor temperature of 75°C for Polyethylene insulated cables or 90°C for Cross-Linked (XLPE) insulation.
Standards / Testing Specifications
NF C 33-209 0.6/1kV Aerial bundled cable
BS 7870-5 Polymer insulated aerial bundled conductors of rated voltage 0.6/1kV for overhead distribution.
NF C 31-122 Aluminum Wire, 1350-H19 for Electrical Purposes.
NF C 32-013 Aluminum Conductors, Concentric- Lay-Stranded.
NF C 32-013 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
Installation
As a Service Drop (power pole to service entrance), As a secondary cable (pole to pole) or street lighting.
Company & Workshop
Production Equipment
Producing Process
Testing Equipment
low voltage PE insulated 2+1 core aerial bundled ABC cables
Why Us
FAQ
Contact Us
low voltage PE insulated 2+1 core aerial bundled ABC cables
