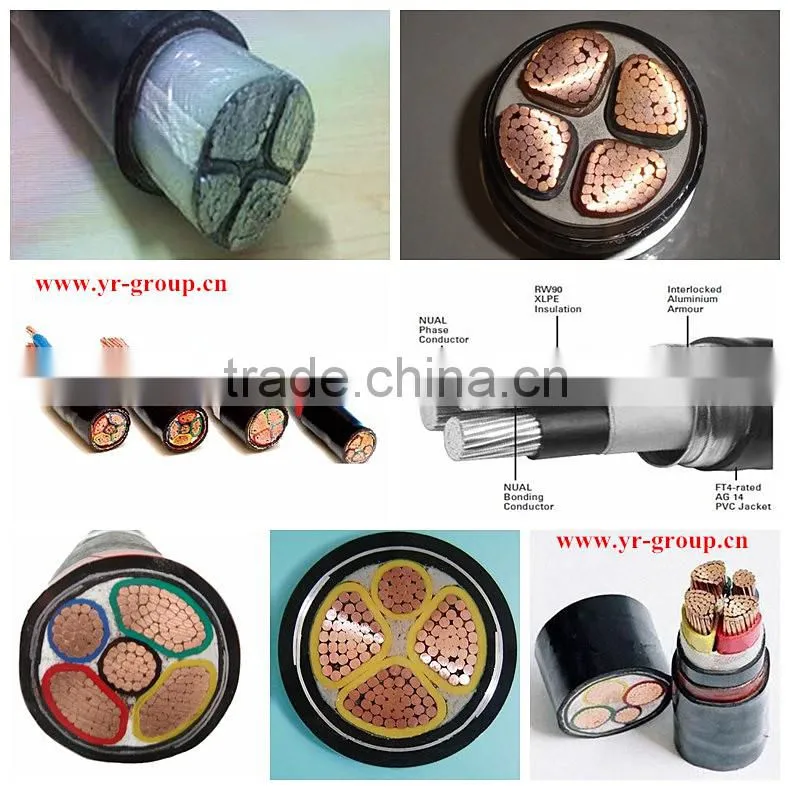

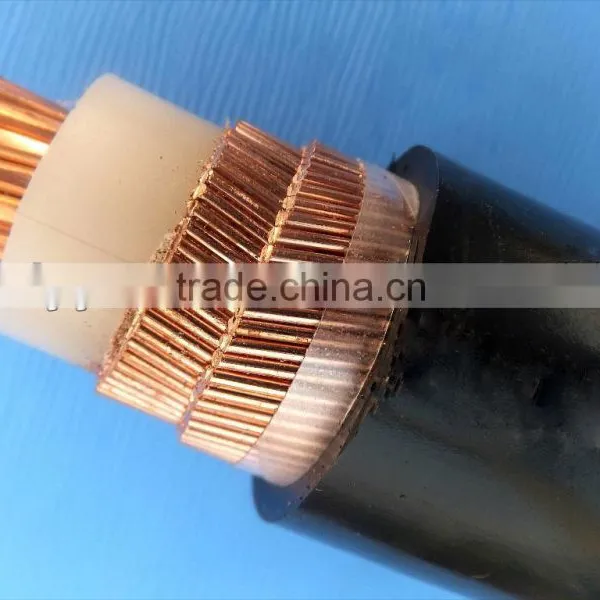

Help CenterAl/Cu Conductor 25 mm XLPE Insulated Thin Steel Wire Under Armoured PVC Sheath Power Cable
Related Products
-
6/10kv, XLPE Insulated, Steel Tape Armoured Power CableUS$ 0.8 - 108MOQ: 1 Kilometer -
25mm PVC Insulated AL/CU Core Steel Wire Armored PE Sheath Power Cable ElectricUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
0.6/1kv Rated Low Voltage Electrical Power Cable XLPE Insulated PVC Sheath Steel Armoured CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
0.6/1kv Rated Voltage PVC Insulated AL/CU Sheathed Power Cable ElectricUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
0.6/1kv Rated Voltages XLPE Insulated Copper/aluminium Electric Power CablesUS$ 0.48 - 99.8MOQ: 1 Kilometer
Specifications
Rated voltage:0.6/1kvConductor:AL/CU
Armor:steel tape,thin steel wire,thick steel wire
Sheath: PVC/PE
under armour
APPLICATION
under armour
For laying indoors , intunnel or cable trench,unable to bear external mechan-icalforces,Single-core cable in magnetic duct is not permissible. This product is applicable to being fixedly laid on the transmission and distribution line of alternative current rating 50Hz and rated voltage up to 0.6/1.0Kv with the use for power transmission, which is applied to the range of distribution network, industrial equipments, etc.
TYPE OF PRODUCT
under armour
Type |
Name of product |
|
CU |
AL |
|
YJV |
YJLV |
XLPE insulated PVC sheath power cable |
YJY |
YJLY |
XLPE insulated PE sheath power cable |
|
YJV22 YJY22 |
YJLV22 YJLY22 |
XLPE insulated steel tape armored PVC sheath power cable |
|
YJV23 YJY23 |
YJLV23 YJLY23 |
XLPE insulated steel tape armoured PE sheath power cable |
|
YJV32 YJY32 |
YJLV32 YJLY32 |
XLPE insulated thin steel-wire armoured PVC sheath power cable |
|
YJV33 YJY33 |
YJLV33 YJLY33 |
XLPE insulated thin steel-wire armoured PE sheath power cable |
|
YJV42 YJY42 |
YJLV42 YJLY42 |
XLPE insulated thin steel –wire armoured PVC sheath power cables |
|
YJV43 YJY43 |
YJLV43 YJLY43 |
XLPE insulated thin steel –wire armoured PE sheath power cables |
Bunched burning characteristic
Code |
Volume of non metal materials(L/m) |
Time of fire supply/s |
Acceptable index |
Test mode |
|
ZA ZB ZC ZD |
7 3.5 1.5 0.5 |
40 40 20 20 |
1.The length of carbonation is no more than 2.5m from the bottom of nozzle 2.The time of flaming combustion shall be no more than 1h, after fire supply is stopped. |
GB/T 18380.3 IEC 60332-3-25 |
ZD is suitable for the cables whose sample's outer diameter is no more than 12mm. | ||||
