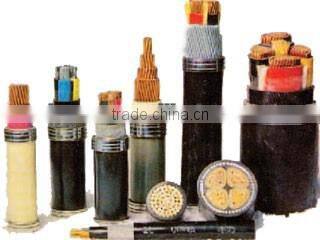

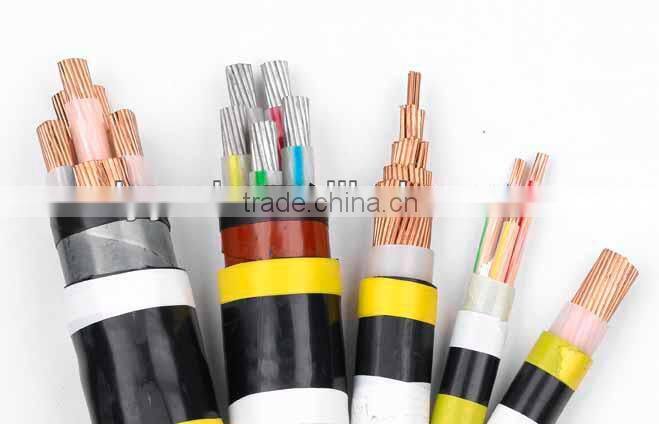

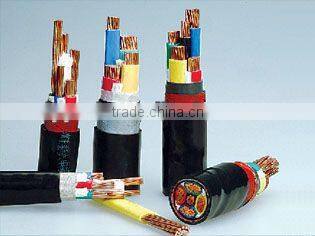

Help Center6/10kv, XLPE Insulated, Steel Tape Armoured Power Cable
Related Products
-
25mm PVC Insulated AL/CU Core Steel Wire Armored PE Sheath Power Cable ElectricUS$ 0.48 - 99.8MOQ: 1 Kilometer -
0.6/1kv Rated Low Voltage Electrical Power Cable XLPE Insulated PVC Sheath Steel Armoured CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
0.6/1kv Rated Voltage PVC Insulated AL/CU Sheathed Power Cable ElectricUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
0.6/1kv Rated Voltages XLPE Insulated Copper/aluminium Electric Power CablesUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
0.6/1kv, XLPE Insulated, Steel Tape Armoured Power CableUS$ 0.4 - 99.8MOQ: 1 Kilometer
Specifications
1, IEC, ASTM, DIN, BS VDE, UL, GOST,SAS standard.2, ISO, CCC, CQC certification approved. 8 Years Experience of OEM service.
Features/Description
XLPE insulated power cable not only has excellent electric, mechanic properties, but also has powerful resistance chemical corrosion, anti-aging and long life.
Voltage grade is up to 26/35kv, cross-section area is up to 630 sq-mm ( copper or aluminum conductor). The core number of conductor is from 1 to 5. Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.
Application
It is generally applied to the fields including substation, construction, mines, metallurgy, petrochemical industry for transmission and distribution electric energy. For laying indoor, tunnel, cable trench and underground.
Conductor
Copper, Aluminum, Alloy
ZR: Means Flame retardant
Model |
Nominal cross-sectional area |
|||||
Single-core |
2-core |
3-core |
4-core |
5-core |
||
|
YJV ZR-YJV |
YJLV ZR-YJLV |
1.5-630 |
1.5-300 |
1.5-300 |
1.5-300 |
1.5-300 |
|
YJV22 ZR-YJV22 |
YJLV22 ZR-YJLV22 |
10-630 |
4-300 |
4-300 |
4-300 |
4-300 |
|
YJV32 ZR-YJV32 |
YJLV32 ZR-YJLV32 |
10-630 |
4-300 |
4-300 |
4-300 |
4-300 |
4. Model and Name
Model |
Description |
Application |
|
Cu |
Al |
||
YJV |
YJLV |
XLPE insulation PVC sheath power cable (Cu/XLPE/PVC) |
For laying indoor, tunnel, cable trench and underground, the cable couldn't bear mechanical force outside |
YJY |
YJLY |
XLPE insulation PE sheath power cable (Cu/XLPE/PE) |
|
YJV22 |
YJLV22 |
XLPE insulation, steel tape armor, PVC sheath power cable (Cu/XLPE/PVC/STA/PVC) |
For laying indoor, tunnel, cable trench and underground, but it couldn't bear great pulling force. |
YJV23 |
YJLV23 |
XLPE insulation, steel tape armor, PE sheath power cable (Cu/XLPE/PVC/STA/PE) |
|
YJV62 |
YJLV62 |
XLPE insulation, no magnetism steel tape armor, PE sheath power cable |
|
YJV32 |
YJLV32 |
XLPE insulation, thin steel-wire armor, PVC sheath power cable (Cu/XLPE/PVC/SWA/PVC) |
Be applicable to the well, water inside and fall in the bad soil. The cable is able to bear external mechanical forces, and certain force. . |
YJV72 |
YJLV72 |
XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable |
|
YJV42 |
YJLV42 |
XLPE insulation, thick steel-wire armor, PVC sheath power cable |
Be applicable to the well, underwater with the bottom of sea. The cable is able to bear external mechanical forces, and certain force. |
