Help Center0.6/1kv Rated Voltage PVC Insulated AL/CU Sheathed Power Cable Electric
Related Products
-
0.6/1kv Rated Voltages XLPE Insulated Copper/aluminium Electric Power CablesUS$ 0.48 - 99.8MOQ: 1 Kilometer -
0.6/1kv, XLPE Insulated, Steel Tape Armoured Power CableUS$ 0.4 - 99.8MOQ: 1 Kilometer
-
High Voltage Aerial PE Insulated Aluminum Alloy Core Conductor Overhead Power CablesUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
Power Electric Cable Wire With AL/CU Conductor Multi Core 25mm XLPE Insulated PVC SheathUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
AL CU Conductor Multi Core 60mm XLPE Insulated PE Sheath Power Electric Cable WireUS$ 0.48 - 99.8MOQ: 1 Kilometer
Specifications
Rated voltage:0.6/1kvConductor:AL/CU
Armor:steel tape,thin steel wire,thick steel wire
Sheath: PVC/PE
Easy installation and
APPLICATION
1, Rated Voltage
Rated Voltage of cable U0/U(Um):0.6/1(1.2)kV
2,The rated temperature of conductor
The maximum assigned temperature of the cable conductor is 70°C.
During having a short circuit, lasting less than 5 seconds, the maximum temperature of the cable conductor shall not be above 160°C.
3,Ambient temperature for laying
The ambient temperature for laying shall be above 0°C, if not the cable need be preheated.
TYPE OF PRODUCT
type |
Name of product |
Applicability and surroundings |
|
Copper core |
Aluminum core |
||
VV |
VLV |
PVC insulated PVC sheath power cable |
For laying indoors , in tunnel or cable trench, unable to bear external machan-inforces.Single-core cable in magnetic duct is not permissible |
VY |
VLY |
PVC insulated PE sheath power cable |
|
VV22 |
VLV22 |
PVC insulated steel tape armored PVC sheath power cable |
For laying indoors , in tunnel, cable trench, or direct in ground,able to bear external mechanical forces, but unable to bear large pulling force . |
VV23 |
VLV23 |
PVC insulated steel tape armored PE sheath power cable |
|
VV32 |
VLV32 |
PVC insulated thin steel-wire armored PVC sheath power cable |
For laying indoors , in tunnel, cable French, well or direct in ground,able to bear external mechanical forces, and certain force . |
VV33 |
VLV32 |
PVC insulated thin steel-wire armored PE sheath power cable |
|
VV42 |
VLV42 |
PVC insulated thin steel –wire armored PVC sheath power cables |
|
VV43 |
VLV43 |
PVC insulated thin steel –wire armored PE sheath power cables |
|
Packaging:wooden drum steel wooden drum or as your request
Delivery:within 7 working days after payment

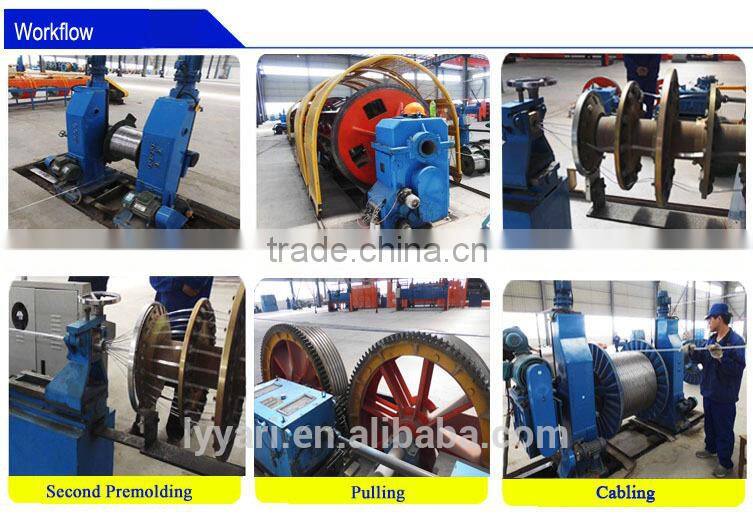

Producing Process
Testing Equipment
