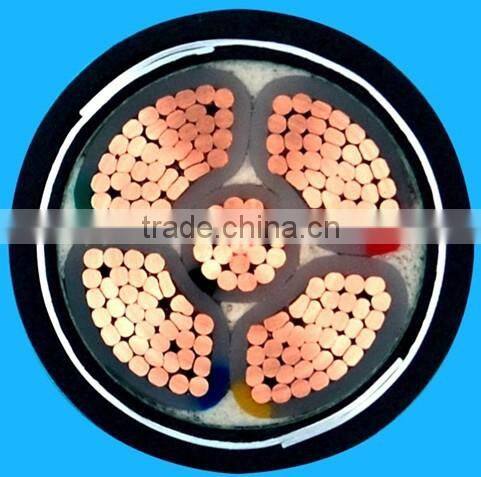

Help Center0.6/1kv Rated Low Voltage Electrical Power Cable XLPE Insulated PVC Sheath Steel Armoured Cable
Related Products
-
0.6/1kv Rated Voltage PVC Insulated AL/CU Sheathed Power Cable ElectricUS$ 0.48 - 99.8MOQ: 1 Kilometer -
0.6/1kv Rated Voltages XLPE Insulated Copper/aluminium Electric Power CablesUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
0.6/1kv, XLPE Insulated, Steel Tape Armoured Power CableUS$ 0.4 - 99.8MOQ: 1 Kilometer
-
High Voltage Aerial PE Insulated Aluminum Alloy Core Conductor Overhead Power CablesUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
Power Electric Cable Wire With AL/CU Conductor Multi Core 25mm XLPE Insulated PVC SheathUS$ 0.48 - 99.8MOQ: 1 Kilometer
Specifications
1.Rated voltage:0.6/1kv2.Conductor:AL/CU
3.Armor:steel tape,thin steel wire,thick steel wire
4.Sheath: PVC/PE
armoured cabl
Application
XLPE insulated power cables with rated voltages 0.6/1kV
Type |
Name of product |
|
CU |
AL |
|
YJV |
YJLV |
XLPE insulated PVC sheath power cable |
YJY |
YJLY |
XLPE insulated PE sheath power cable |
|
YJV22 YJY22 |
YJLV22 YJLY22 |
XLPE insulated steel tape armored PVC sheath power cable |
|
YJV23 YJY23 |
YJLV23 YJLY23 |
XLPE insulated steel tape armoured PE sheath power cable |
|
YJV32 YJY32 |
YJLV32 YJLY32 |
XLPE insulated thin steel-wire armoured PVC sheath power cable |
|
YJV33 YJY33 |
YJLV33 YJLY33 |
XLPE insulated thin steel-wire armoured PE sheath power cable |
|
YJV42 YJY42 |
YJLV42 YJLY42 |
XLPE insulated thin steel –wire armoured PVC sheath power cables |
|
YJV43 YJY43 |
YJLV43 YJLY43 |
XLPE insulated thin steel –wire armoured PE sheath power cables |
Bunched burning characteristic
Code |
Volume of non metal materials(L/m) |
Time of fire supply/s |
Acceptable index |
Test mode |
|
ZA ZB ZC ZD |
7 3.5 1.5 0.5 |
40 40 20 20 |
1.The length of carbonation is no more than 2.5m from the bottom of nozzle 2.The time of flaming combustion shall be no more than 1h, after fire supply is stopped. |
GB/T 18380.3 IEC 60332-3-25 |
ZD is suitable for the cables whose sample's outer diameter is no more than 12mm. | ||||
Fire-safe property
Temperature of flame |
Fire supply time+cooling time |
Test Voltage/V |
Acceptable index |
750+50°C |
90+15 |
Rated |
1. 2A no fusing 2. Indicator light immortalization |
Low-smoke halogen-free flame-retardant property
order |
Items |
Unit |
Indicator |
1 |
Low-smoke property least light penetration quotiety |
% |
≥60 |
2 |
zero-halogen property PH value electrical conductivity |
μs/mm |
≥4.3 ≤10 |
