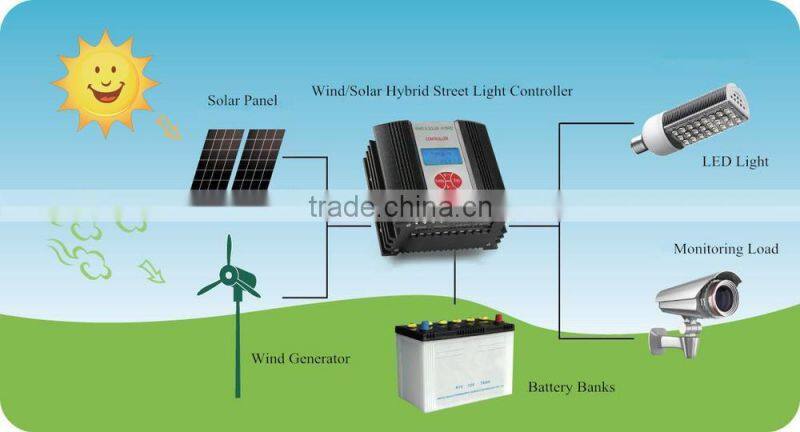

Chinese 600w 24v Wind Solar Hybrid Street Light Charge Controller

Model

NE-600M2

Rated power

600W

Maximum power

680W

Rated voltage

12/24V

Start-up wind speed

2.5m/s

Rated wind speed

10m/s

Survival wind speed

55m/s

Top net weight

16kg

Wheel diameter

1.75m

Number of blades

3

Blades material

Nylon fiber

Generator type

Three phase permanent magnet AC synchronous generator

Magnet material

NdFeB

Generator case

Casting aluminum alloy

Control system

Electromagnet/wind wheel yaw

Speed regulation

Automatically adjust windward direction

Working temperature

-40°C  -  80°C

Design life

20 y

Certificates

CE, ISO14001, ISO 9001,TUV

TECHNICAL SPECIFICATIONS

Model

                Mono solar panel 100W

Maximum power at STC(Pmax)

100W

Efficiency rate per cell

17.8%

Efficiency rate per panel

15.5%

Open circuit voltage(Voc)

21.6V

Optimun operating voltage(Vpmax)

17.8V

Short circuit current(Isc)

6.74A

Optimun operating current(Ipmax)

5.62A

Temp. Coeff. of Isc (TK Isc)

+0.1%/

Temp. Coeff. of Voc (TK Voc)

-0.38%/

Max. Power Temp. Coefficient %/°C

-0.47%/

Maximum system voltage

1000V

Normal Operating Cell Temperature [NOCT]

45.3±2ºC

Temperature cycling range

-40 to +85

Damp heat, Humidity freeze,

25

Static load front and back (e.g. wind)

60m/s

Front loading (e.g. snow)

200kg/

 Hailstone impact

Maximum diameter of 25mm with impact speed of 23m/s

Dimension of Module(mm)

1200*540*30mm

Weight(kg)

7.5

Size of solar cells (mm)

125*125

Number of cells (Pcs)

36

Junction Box Type

Random but good quality

Output tolerance (%)

±3%

Standard Test Conditions

AM1.5   1000W/    25±2

Warranty

90% for 10 years , 80% for 25 years
