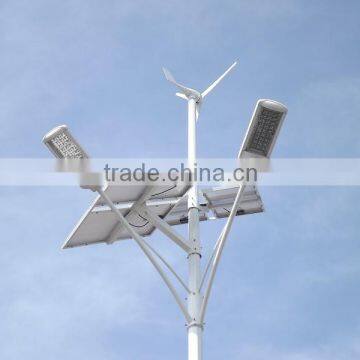

600w wind turbine + 200w solar panel hybrid system

Model

NE-600M2

Rated power

600W

Maximum power

630W

Rated voltage

12/24/48V

Start-up wind speed

2.5m/s

Rated wind speed

13m/s

Survival wind speed

45m/s

Top net weight

16kg

Wheel diameter

1.75m

Number of blades

3

Blades material

Nylon fiber

Generator type

Three phase permanent magnet AC synchronous generator

Magnet material

NdFeB

Generator case

Casting aluminum alloy

Control system

Electromagnet/wind wheel yaw

Speed regulation

Automatically adjust windward direction

Working temperature

-40°C  -  80°C

Design life

20 y

Certificates

CE, ISO14001, ISO 9001, TUV

Power(W)

200W

Best working voltage(V)

28.8

 Best operating current(A)

6.94

Open -circuit voltage(V)

35.4

Short-circuit current(A)

7.63

panel Dimension (mm)

1640×992×40

Cell(mm)

156*156

cell power

3.43W

No. of cell

6*10

Product Model

WWSI0610-24

Rated Wind Power

600W

Rated Solar Power

180W

Floating Charge Voltage

29V

Dump load Current

25A

Rated Output Capacity

1kVA

Rated Battery Voltage

24V_DC

Over Voltage Shutoff

34V_DC

Over Voltage Recovery

33V_DC

Under Voltage Shutoff

21.6V_DC

Under Voltage Recovery

24V_DC

No-load Loss Current

≤0.7A

Net Weight

16kg

Dimension

400×340×160mm

Output Wave

Pure Sine Wave

Display Mode

LCD

Cooling

Fan

Rated Output Voltage

110/120/220/230/240 VAC

Wave Distortion

≤4%

Output Frequency

50/60 Hz±0.5Hz

Dynamic Response

5%

Power Factor

≥0.8

Over-load Capacity

120%  1min,150%  10s

Inverter Efficiency

Maximum 90%

Isolating Mode

Frequency Toroidal transformer

Noise (1 m)

≤40dB

Insulating Strength

1500VAC,1 min

Protection Function

Solar reverse charge protection , Solar reverse connection protection, Battery over voltage protection, Battery over discharge protection,Battery reverse connection protection, Output overload protection, Output short circuit protection, Overheating protection. Wind turbine automatic brake and manual brake.
