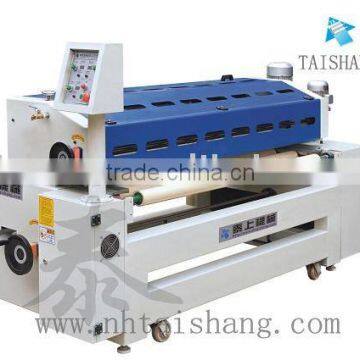

uv Roller Coater /uv Roller Coating Machine

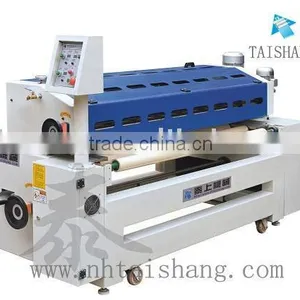

uv Roller Coater /uv Roller Coating Machine thumbnail-1
uv Roller Coater /uv Roller Coating Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TISAN
Model Number:
760# 1100# 1420#
Contact Supplier Request Quote Chat Now
Foshan Taishang Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TISAN
Model Number 760# 1100# 1420#
After-sales Service Provided Engineers available to service machinery overseas

Specifications

These coating machine can use the fluorin paint on the pvc window's surface.And making it can keep for 15-20 years outside.



1. The equipment is mainly applicable in roller painting of all kinds of flat plates such as wood board,furniture,metal materials ,glass,plastic and PVC sheets etc;

2,This machine takes the place of traditional coating.It can save time and money.It is high efficient and protects the environment.It can save the painting amount 48.8% comparatively;

3,The motors of conveyor belts,PU robber roller and measure wheels are all independent and adopt speed regulation by frequency variation that the process are more precise;

4,The products that are process by this equipment have smooth surface and good satiation without any paint piles.The painting effort has no difference with that of curtain coating but thickness of paint is greatly reduced;

5,The coating roller are easy to remove and accurate to position.The height

is precisely controlled by count table;



Model TS-760# TS-1100# TS-1420#
Working width 650MM 1000MM 1320MM
Working height 2-80MM 2-80MM 2-80MM
Feeding speed  0-30M/MIN 0-30M/MIN 0-30M/MIN
Feeding power 0.75KW 0.75KW 0.75KW
lift power 0.375KW 0.375KW 0.375KW
coating roller power 0.75KW 0.75KW 0.75KW
Measurement roller power 0.375KW 0.375KW 0.375KW
Paint type UV/PU/NC/PE UV/PU/NC/PE UV/PU/NC/PE
Paint thickness 0.003MM-0.2MM 0.003MM-0.2MM 0.003MM-0.2MM
Paint dosage 5-25G/M2 5-25G/M2 5-25G/M2
Paint container capacity 20L 20L 20L
Air pressure 0.6MPa 0.6MPa 0.6MPa
Air supply 400L/MIN 400L/MIN 400L/MIN
Power supply 220V/380V50HZ 220V/380V50HZ 220V/380V50HZ
Machine dimension 1000*1750*1390 1000*2050*1390

1000*2450*1390
Machine weight 0.8T 1.0T 1.2T
