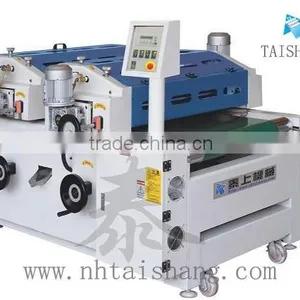

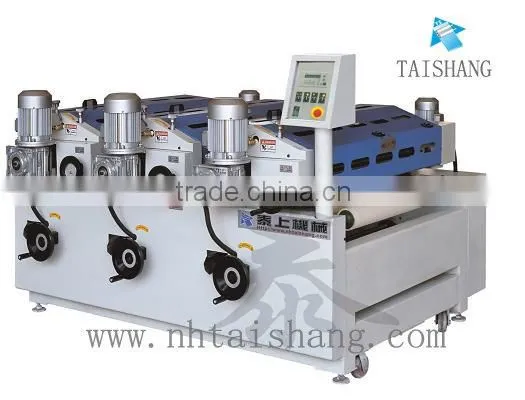

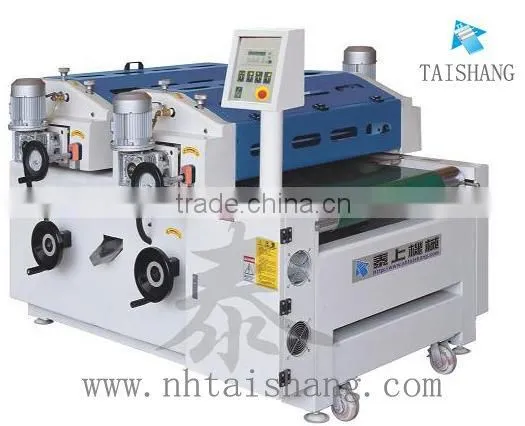

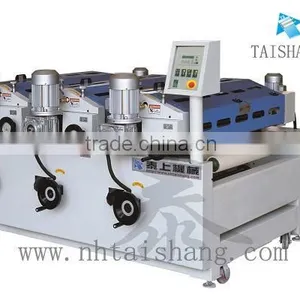

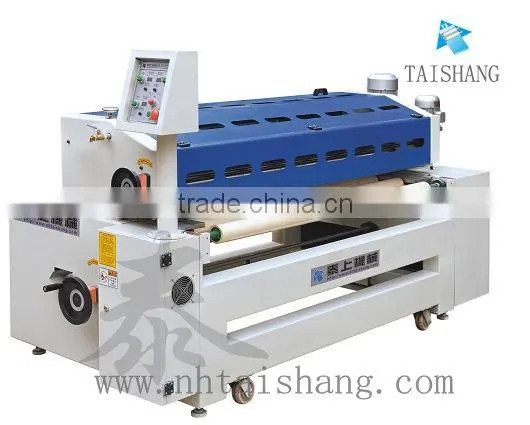

Help CenterRoller Coating Machine
US$ 200 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
TAISAN
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double-side Roller Coater Window Blinds/Wooden Floor/PVC SheetUS$ 500 - 5,000MOQ: 1 Set -
UV Curtain Coating MachineUS$ 500 - 5,000MOQ: 1 Set
-
PVC Edge Banding Printing LineUS$ 20,000 - 200,000MOQ: 1 Set
-
uv Automatic Spraying Machine<Reciprocating>NegotiableMOQ: 1 Set
-
UV Roller Coating MachineUS$ 200 - 20,000MOQ: 1 Set
Condition
New
Place of Origin
Guangdong, China
Brand Name
TAISAN
Model Number
760#,1100#,1420#
Usage
Other, primer roller coating on panel-type furniture and so on
Automatic Grade
Automatic
Dimensions(L*W*H)
2100*1600*1100
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
this machine is mainly applicable for the primer roller coating of panel-type furniture,flat doors,handiwork and blinds etc.1,This equipment is mainly used for the primer coating of panel-type furniture,flat doors,handiword and blinds ect;
2,This machine takes the place of traditional coating,It can save time and money.It is highlly efficient and protects the environment.It can comparatively save the painting amount by 48.8%.
3,This machine adopts AC motor frequency speed control.
4,The coating rollers are easy to remove and accurate to position.The height is precisely controlled by count table.
5,The paintng roller are made by Japanese imported materials,which are solvent resistant and have a good coating effets;
6,Imported paint extracting air pump is installed that the paint can be circulated through paint groove.There will be almost no waste.
| Model | TS-760# | TS-1100# | TS-1420# |
| Working width | 650MM | 1000MM | 1320MM |
| Working height | 2-80MM | 2-80MM | 2-80MM |
| Feeding speed | 0-30M/MIN | 0-30M/MIN | 0-30M/MIN |
| Feeding power | 1HP | 2HP | 3HP |
| Paint type | UV/PU/NC/PE | UV/PU/NC/PE | UV/PU/NC/PE |
| Paint thickness | 0.002-0.35MM | 0.002-0.35MM | 0.002-0.35MM |
| Paint container capacity | 20L | 20L | 20L |
| Air pressure | 0.6MPa | 0.6MPa | 0.6MPa |
| Air supply | 400L/MIN | 400L/MIN | 400L/MIN |
| Power supply | 220V/380V50HZ | 220V/380V50HZ | 220V/380V50HZ |
| Machine dimension | 2100*1600*1100 | 2100*1750*1100 | 2100*2300*1100 |
| Machine weight | 0.7T | 0.9T | 1.3T |
