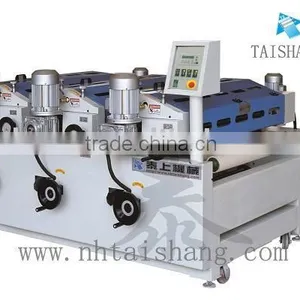

Help CenterHigh Glazed Surface Coating Machine
Related Products
-
Curtain Coating MachineUS$ 200 - 2,000MOQ: 1 Set -
Roller Coating MachineUS$ 200 - 2,000MOQ: 1 Set
-
Double-side Roller Coater Window Blinds/Wooden Floor/PVC SheetUS$ 500 - 5,000MOQ: 1 Set
-
UV Curtain Coating MachineUS$ 500 - 5,000MOQ: 1 Set
-
PVC Edge Banding Printing LineUS$ 20,000 - 200,000MOQ: 1 Set
Specifications
Coating machine is applicable in roller painting of all kinds of flat plates such as wood board,furniture,plastic and PVC sheetating machine is mainly applicable in roller painting of all kinds of flat plates such as wood board, furniture, metal materials, glass, plastic and PVC sheets etc.
2. This machine takes the place of traditional coating. It can save time and money. It is highly efficient and protects the environment. It can comparatively save the painting amount by 48.8%;
3. The products that are processed by this equipment have smooth surface and good satiation without any paint piles. The painting effort has no difference with that of flow painting but the thickness of paint is greatly reduced.
4. The painting rollers are made by Japanese imported materials, which are solvent resistant and have good effects of inking;
5. Imported paint extracting air pump is installed that the paint can be circulated through paint groove. There will be almost no waste.
| Model | TS-760# | TS-1100# | TS-1420# |
| Working width | 650MM | 1000MM | 1320MM |
| Working height | 2-80MM | 2-80MM | 2-80MM |
| Feeding speed | 0-30M/MIN | 0-30M/MIN | 0-30M/MIN |
| Feeding power | 0.75KW | 0.75KW | 0.75KW |
| lift power | 0.375KW | 0.375KW | 0.375KW |
| coating roller power | 0.75KW*3 | 0.75KW*3 | 0.75KW*3 |
| Measurement roller power | 0.375KW*3 | 0.375KW*3 | 0.375KW*3 |
| Paint type | UV/PU/NC/PE | UV/PU/NC/PE | UV/PU/NC/PE |
| Paint thickness | 0.003MM-0.35MM | 0.003MM-0.35MM | 0.003MM-0.35MM |
| Paint dosage | 10-50G/M2 | 10-50G/M2 | 10-50G/M2 |
| Paint container capacity | 20L | 20L | 20L |
| Air pressure | 0.6MPa | 0.6MPa | 0.6MPa |
| Air supply | 400L/MIN | 400L/MIN | 400L/MIN |
| Power supply | 220V/380V50HZ | 220V/380V50HZ | 220V/380V50HZ |
| Machine dimension | 2250*1750*1390 | 2250*2050*1390 | 2250*2450*1390 |
| Machine weight | 1.2T | 1.4T | 1.6T |
