Multi Function Heat Pump
- Shunde Guangzhou
- T/T
You May Like
-
Heat Pump Water Heater With Sanyo Scroll Compressor
-
Air Source Heat Pump for Heating or Cooling
-
Industrial Heat Pump Water Heater Air to Water
-
Air to Water Heat Pump Water Heater for Domestic Hot Water
-
Air To Water Hot Water and Floor Heating Heat Pump Water Heater
-
Air To Water House Heating and Domestic Hot Water Heat Pump
Product Details
| Type | Air Source Heat Pump | Installation | Freestanding | |
| Storage / Tankless | Instant / Tankless | Housing Material | Stainless Steel | |
| Use | Bathroom | Certification | CB, CE, EMC, Other, UL, CB, CE, EMC, UL, CB, CE, EMC, RoHS, UL, CB, CE, EMC, RoHS, UL | |
| Place of Origin | Guangdong, China | Brand Name | Macon | |
| Model Number | MACHRW(S)050ZA/(02) |
Product Description
Specifications
Multi function heat pump:oling,heating,hot water
2.heating capacity:13.5kW
3.Refrigerant:R410a
4.CE,RoHS
Residential Air to water multi-function heat pump water boiler
| Model | MACHRW | 030ZA/(02) | 040ZA/(02) | 050ZA/S(02) | 060ZA/S(02) |
| Rated Output Water | L/h | 205 | 270 | 380 | 445 |
| Rated Cooling Capacity | kW | 7.5 | 10.0 | 12.5 | 15.0 |
| BTU/h | 25600 | 34200 | 42700 | 51200 | |
| Rated Input Power(Cooling) | kW | 2.40 | 3.20 | 4.00 | 4.70 |
| Rated Input Current(Cooling) | A | 10.9 | 14.5 | 7.0 | 8.2 |
| Rated Heating Capacity | kW | 9.0 | 12.0 | 15.0 | 18.0 |
| BTU/h | 30800 | 41000 | 51200 | 61500 | |
| Rated Input Power(Heating) | kW | 2.70 | 3.60 | 4.50 | 5.30 |
| Rated Input Current(Heating) | A | 12.3 | 16.4 | 7.9 | 9.3 |
| Power Supply | V/PH/Hz | 220/1/50 | 220/1/50 | 380/3/50 | 380/3/50 |
| Compressor | Rotary | Scroll | Scroll | Scroll | |
| Compressor Qty | 1 | 1 | 1 | 1 | |
| Fan Qty | 1 | 1 | 2 | 2 | |
| Noise | dB(A) | 55 | 55 | 57 | 57 |
| Hot water side | |||||
| Water Connection | inch | 1 | 1 | 1 | 1 |
| Water Flow Volume | m3/h | 3-4 | 4-5 | 5-6 | 5-6 |
| Air condition side | |||||
| Water Connection | inch | 1 | 1 | 1 | 1 |
| Water Flow Volume | m3/h | 1.5-2.5 | 2-3 | 2.5-3.5 | 3-4 |
| Fan Direction | Horizontal | Horizontal | Horizontal | Horizontal | |
| Refrigerant Gas Type | R410a | ||||
| Main Unit Net Dimensions(L/M/H) | mm | 1115/470/945 | 1115/470/945 | 1115/470/1250 | 1115/470/1250 |
| Main Unit Shipping Dimensions(L/M/H) | mm | 1205/525/975 | 1205/525/975 | 1205/525/1280 | 1205/525/1280 |
| Net Weight | kg | 112 | 125 | 150 | 155 |
| Shipping Weight | kg | 132 | 145 | 170 | 175 |
1.Patent product with Multi-usage function

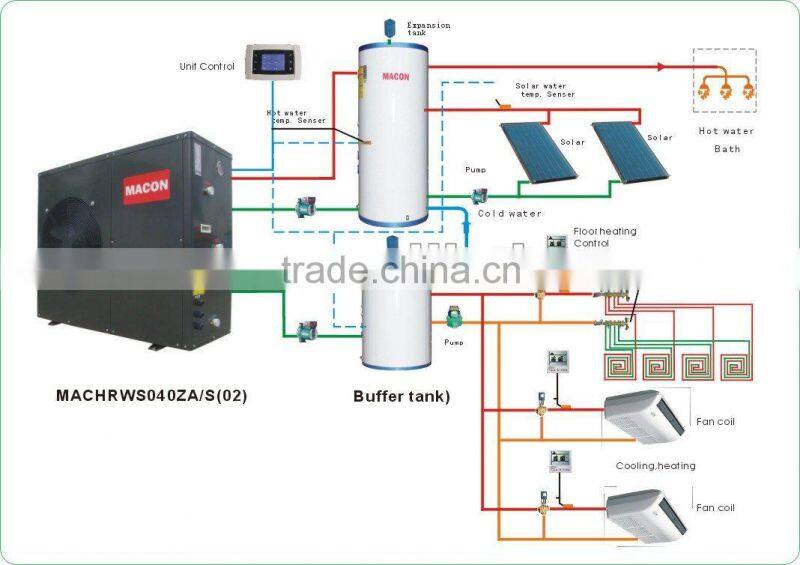

The multi-function heat pump is one of MACON patent with five modes : air heating,air cooling,domestic hot water,air heating &domestic hot water at the same time,air cooling+ domestic hot water at the same time. And also can with pool heating all at the same time
2.High efficiency and energy saving
Using energy efficient scroll compressors and 2 plate heat exchanger to provide hot water and cold water/hot water respectively and independently which’s efficiency will be much higher no matter hot water side or air conduction side. And when you just need hot water, the two heat exchanger will heat the water together to greatly improved efficiency much more than a normal hot water heat pump but use same electricity. So compared to the same traditional products ,it improve energy efficiency is 10%.Comprehensive energy consumption is only65% of the solar energy water heater,25% of electric water heater. When it is cooling + hot water, the COP will be more than 6.
3.Advanced solar temperature difference control
For solving traditional solar problem. MACON multi-function heat pump invent the solar temperature difference control, which will keep solar temperature higher than the tank temperature forever.
4.Integrated design,multi-protec and reliable
Built-in protections of hot water flow and air flow, compressor exhaust temperature, high and low pressure compressor, compressors flow and power fault phase, power supply fault and lack of phase ,freeze protection, automatic defrost and automatic load adjusting etc built-in .Multiple protections.
5.Working environment
Applicable to -15°C~45°C- the outdoor harsh environment temperature, all-weather work.
