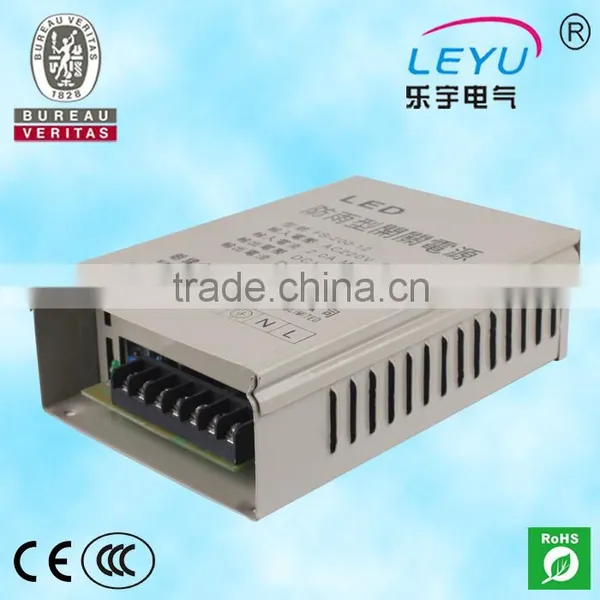

CE CCC High Performance Input 220v Output 24v Transformer

Name: CE CCC High Performance Input 220v Output 24v Transformer
Brand: LEYU
SKU: 113145269
Availability: InStock

US$ 15 - 18.5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

LEYU

Model Number:

FS-250-24 input 220v output 24v transformer

Yueqing Leyu Electric Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo / Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name LEYU

Model Number FS-250-24 input 220v output 24v transformer

Output Power 201 - 300W

Output Type Single

Input Voltage Other, 180-264VAC

Output Voltage 24V

Output Frequency 60-100KHZ

Output Current 10A

Specifications

input 220v output 24v transformer :

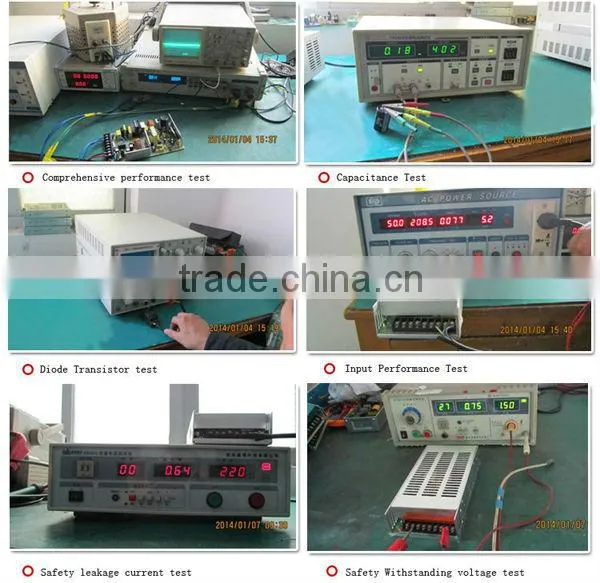

100% full load burn-in test
PROTECTION: Short circuit/Over load/Over voltage

CE CCC high performance input 220v output 24v transformer

Full specification

SPECIFICATIONS
OUTPUT
Model	FS-250-12	FS-250-15	FS-250-24
DC Voltage	12V	15V	24V
Rated Current	20A	16.6A	10A
Current Range	0-20A	0-16.6A	0-10A
Rated Power	240W	249W	240W
Ripple & Noise	150mVp-p	150mVp-p	150mVp-p
Voltage Adj. Range	-16%,+10%	-10%,+20%	-16%,+10%
Voltage Tolerance	±1%	±1%	±1%
Inlet stability	±0.5%	±0.5%	±0.5%
Load stability	±1%	±1%	±1%
Setup, Rise, Hold Up Time	200ms,50ms,20ms at full load

INPUT
Voltage Range	90~132 VAC/180~264VAC 47~63 Hz;selected by switch 254~370VDC
Efficiency	78%	78%	82%
Inrush Current	50A/115V 50A/230V
Leakage Current	<3.5 mA/240VAC

PROTECTION
Over Load	105%~150%
	Protection: Current limiting, recovers automatically after fault condition is removed
Over Voltage	115%~135%
	Protection: voltage limiting, recovers automatically

ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃(Refer to output derating curve), 20%~90%RH
Storage Temp., Humidity	-20℃~+85V, 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes

SAFETY
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD
Safety Standard	Design refer to UL1950
EMC Standard	Design refer to FCC Part15 J Conduction Class A
