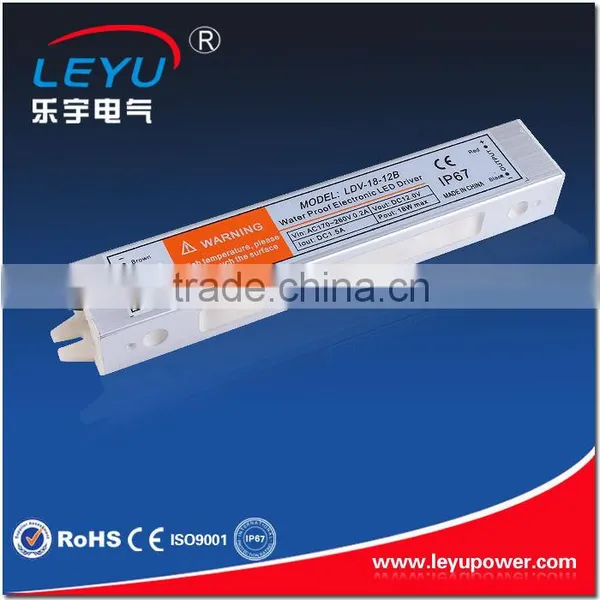

IP67 2 Years Warranty Mini Led Driver

Name: IP67 2 Years Warranty Mini Led Driver
Brand: Leyu
SKU: 113145305
Availability: InStock

US$ 3.2 - 5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Leyu

Model Number:

LDV-18-5 mini led driver

Yueqing Leyu Electric Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo / Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Leyu

Model Number LDV-18-5 mini led driver

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 180-264 VAC

Output Voltage 5V

Output Frequency 60-10khz

Output Current 3A

Specifications

mini led driver :
Can withstand 300VAC surge input for 5sec
Short circuit,over load/voltage/temperature protections

IP67 2 years warranty mini led driver

Full specification

Click to see more ...

1. 5V

2. 12V

3. 24V

4. 48V

SPECIFICATION
OUTPUT
Model	LDV-18-12	LDV-18-24
DC Voltage	12V	24V
Rated Current	1.5A	0.75A
Current Range	0-1.5A	0-0.75A
Rated Power	18W	18W
Ripple & Noise	100mVp-p	100mVp-p
Voltage Adj. Range	±10%	±10%
Voltage Tolerance	±1%	±1%
Inlet Stability	±0.5%	±0.5%
Load Stability	±0.5%	±0.5%
Setup, Rise, Hold Up Time	800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC

INPUT
Voltage Range	176~264VAC 47~63Hz
AC Current	0.7A/115V 0.3A/230V
Efficiency	76%/115VAC	80%/115VAC
Inrush Current	Cold-start current 15A/115V 30A/230V
Leakage Current	<0.75mA/240VAC

PROTECTION
Over Load	105%~150%
	Protection type: plusing hiccup shutdown Reset:auto recovery

ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃(Refer to output derating curve),20%~90%RH
Storage Temp., Humidity	-20℃~+85℃, 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes

SAFETY
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD
Safety Standard	ApprovedIP67
EMC Standard	CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification

OTHERS

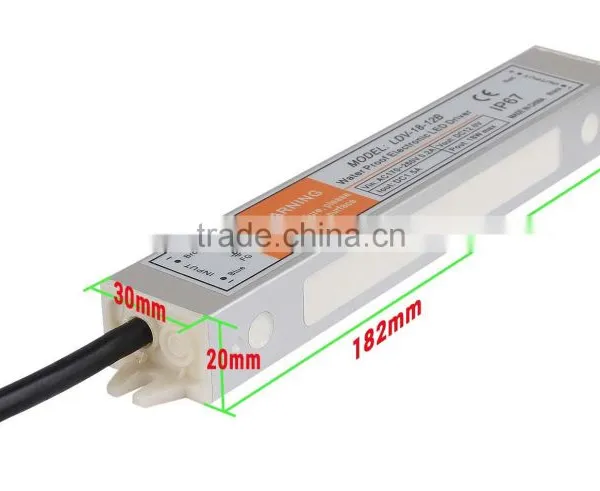

Dimension	1612819mm(LWH)
Weight	0.2Kg
