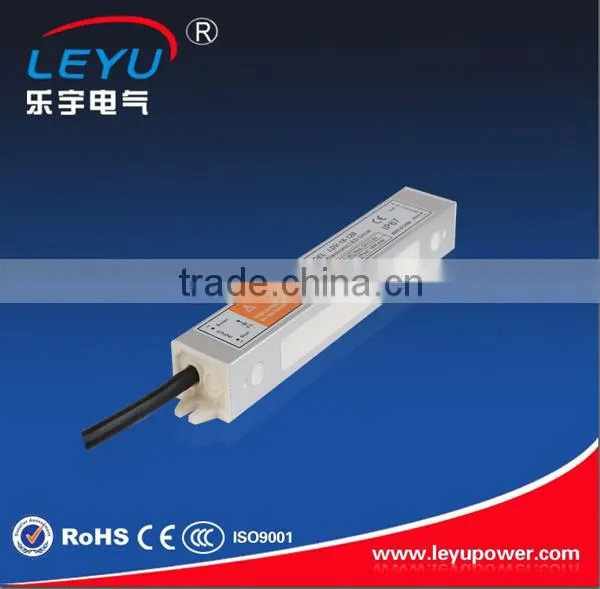

CE ROHS IP67 150w Stabilizing Power Supply Waterproof

Name: CE ROHS IP67 150w Stabilizing Power Supply Waterproof
Brand: Leyu
SKU: 113145293

US$ 21.67 - 25.33 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Leyu

Model Number:

LDV-150

Yueqing Leyu Electric Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Leyu

Model Number LDV-150

Output Power 101 - 200W

Output Type Single

Input Voltage Other, 180~264VAC

Output Voltage 12v 24v 48v

Output Frequency 50/60hz

Output Current 16.7A 8.5A 4.2A

Specifications

150w stabilizing power supply'
A.Passed ip67 waterproof dustproof grade test
B. LED street lighting outdoor LED lighting use

CE ROHS IP67 150w stabilizing power supply waterproof

Notice:

a.We do have enough ability to produce your customized order

b.Samples are available

c.High quality and competive price .

d.If need samples, pls click this link of our aliexpress shop, much more discount on our store. /store/1452633

e.2 years warranty ,buy with confidence

Data sheet :

we can stick customers' label as long as you can purchase enough quantity in a time.

150W Single Output Waterproof Switching Power Supply LDV-150 series

Model		LDV-150-12	LDV-150-24	LDV-150-36	LDV-150-48
output	DC voltage	12V	24V	36V	48V
	Voltage tolerance	±1%	±1%	±1%	±1%
	Rated current	12.5A	6.3A	4.2A	3.1A
	Current range	0~12.5A	0~6.3A	0~4.2A	0~3.1A
	Rated power	150W	151.2W	151.2W	148.8W
	Ripple&noise	120mvp-p	150mvp-p	180mvp-p	180mvp-p
input	Voltage range	180~264VAC,255~373VDC
	Frequency	47~63HZ
	AC current	1.6A/230VAC
	Efficiency	82%	84%	84%	85%
	Inrush current	Cold start current 40A/230VAC
	Leakage current	<2.5mA/240VAC
protection	Over load	Rated output power 105%~135%start over load protection
		Protection type: hiccup mode,auto-recovery after fault condition is removed
	Over voltage	15.6~17.8V	30.6~33.2V	42.6~44.2V	54.8~56.6V
		Protection type: hiccup mode,auto-recovery after fault condition is removed
	Over temperature	Shell temp≥85°C,start over temperature protection
		Protection mode: cutoff output,auto-recovery after temperature become normal
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storage temp.humidity	-20°C~+85°C,10%~95%RH non condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60minutes,each axes
safety	Withstand voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC
Fits tandard	Safety standard	Fit UL1012,IP67 protect level
	EMC standard	Fit EN55022,CLASSA
Others	Dimension	2426744mm (LWH)
	Weight/packing	1.28kg/9pcs/12kg
