Help CenterLDV-30-12V Single Output High Quality 30w Waterproof Led Driver 12v
Related Products
-
CE ROHS Approved Waterproof Led Driver ,30w Led Driver ,led Driver 24vUS$ 4.5 - 5.5MOQ: 1 Piece -
For LED Equipment 12V DC Waterproof Led Power Supply 30wUS$ 5 - 8MOQ: 10 Pieces
-
30W Constant Voltage Waterproof LED 12v LDV-30-12 Power SupplyUS$ 3.97 - 4.76MOQ: 1 Piece
-
Waterproof IP67 60w CE RoHS Approved 24v Regulated Power SupplyUS$ 8.35 - 10MOQ: 10 Pieces
-
Factory Outlet IP67 Waterproof 60W 12v Led DriverUS$ 8.35 - 10MOQ: 10 Pieces
Specifications
led driver 12v1.Warranty :2 years
2.Dimension:213*38*21mm
3.Brand Name :LEYU led driver 12v
waterproof led driver
Specification:
30W Single Output Waterproof Switching Power Supply LDV-30 series
SPECIFICATION | ||
OUTPUT |
|
|
Model |
LDV-30-12 |
LDV-30-24 |
DC Voltage |
12V |
24V |
Rated Current |
2.5A |
1.25A |
Current Range |
0-2.5A |
0-1.25A |
Rated Power |
30W |
30W |
Ripple & Noise |
100mVp-p |
100mVp-p |
Voltage Adj. Range |
±10% |
±10% |
Voltage Tolerance |
±1% |
±1% |
Inlet Stability |
±0.5% |
±0.5% |
Load Stability |
±0.5% |
±0.5% |
Setup, Rise, Hold Up Time |
800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC |
|
|
|
|
INPUT |
|
|
Voltage Range |
85~132VAC 47-63Hz |
|
AC Current |
0.7A/115V |
|
Efficiency |
76%/115VAC |
80%/115VAC |
Inrush Current |
Cold-start current 15A/115V 30A/230V |
|
Leakage Current |
<0.75mA/240VAC |
|
|
|
|
PROTECTION |
|
|
Over Load |
105%~150% |
|
Protection type: plusing hiccup shutdown Reset:auto recovery | ||
|
|
|
ENVIRONMENT |
|
|
Working Temp., Humidity |
-10℃~+60℃(Refer to output derating curve),20%~90%RH |
|
Storage Temp., Humidity |
-20℃~+85℃, 10%~95%RH |
|
Temp. Coefficient |
±0.03%/℃(0~50℃) |
|
Vibration |
10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes |
|
|
|
|
SAFETY |
|
|
Withstand Voltage |
I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|
|
|
|
STANDARD |
|
|
Safety Standard |
ApprovedIP67 |
|
EMC Standard |
CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification |
|
|
|
|
OTHERS |
|
|
Dimension |
220*29*20mm(L*W*H) |
|
Weight |
0.37Kg |
|

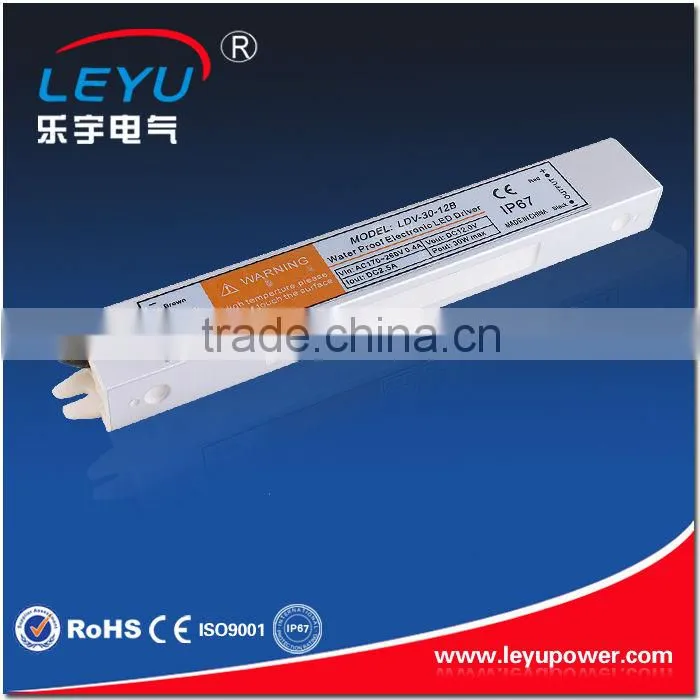

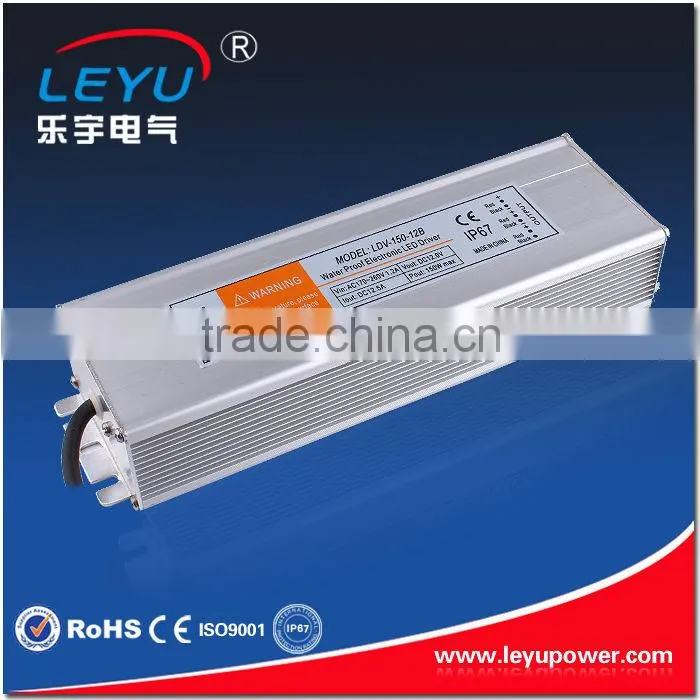

Products photo:
Waiting for your kind inquiry ! contact : Skype leyusale1
