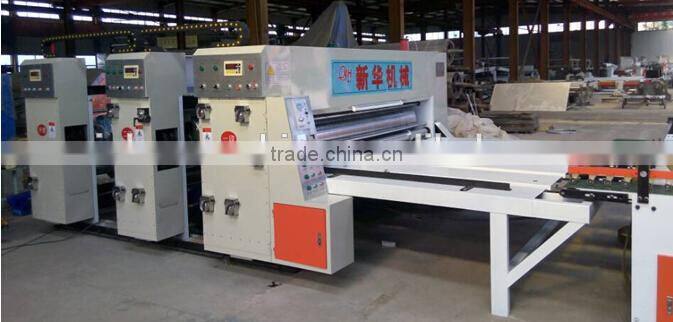

Flexo printing slotting die cutting machine
|
Model number |
Roller diameter |
Over the paper width |
Area of valid printing |
Electrical power |
MJBL-6-1600 |
695 |
1800 |
2100×1600 |
5.5 |
MJBL-6-1600 |
800 |
1800 |
2450×1600 |
5.5 |
MJBL-6-1800 |
800 |
2000 |
2450×1800 |
7.5 |
MJBL-6-2000 |
800 |
2200 |
2450×2000 |
7.5 |
MJBL-6-1800 |
908 |
2000 |
2800×1800 |
10 |
MJBL-6-2000 |
908 |
2200 |
2800×2000 |
10 |
Some parts brand
Name |
Remark |
1,mail electric |
zhengtai |
2,PLC |
Delta |
3,bearing |
China Haerbin, wafangdian, |
4,main motor |
Hebei hengshui yongshun |
5,small motor, gear motor |
Zhengjiang Taizhou |
6,tension connecting sleeve |
Shanxi Xianyang |
7,clutch |
Shanxi Xianyang |
8,diaphragm pump |
Hubei Wuhan |
9,pneumatic component |
Zhengjiang Ningbo |
10,transmission screw rod |
Shandong Jining Bote |
11,rubber roller |
Hebei Jinghui |
12,anilox roller |
dongguang |
13,touch screen |
Weilun |
14,slotting knife |
hebei |
15,die cutting pad |
Taiwan chaonai |
Detailed Product Description
1. This machine adopts the up-to-date international design idea of electromechanical integration for high-grade printing.
2. It features in elegant appearance, compact structure, and high-degree automation.
3. It provides high printing sharpness,low topping error, and convenient adjustment.
4. Phase adjustment is made electrically, locking and stencil plate lifting are made pneumatically, And the ink distribution can be done automatically.
5. The adjustment system can realize high-standard, high-precision prompt phase adjustment within360°circumferentially.
6. The adjustment can be made with high precision via computer control without shutting down the overall machine. Gear lubrication device is adopted.
7. The slotting positions and carton height are adjusted manually. The four cutter are adjusted simultaneously to save the changing time.

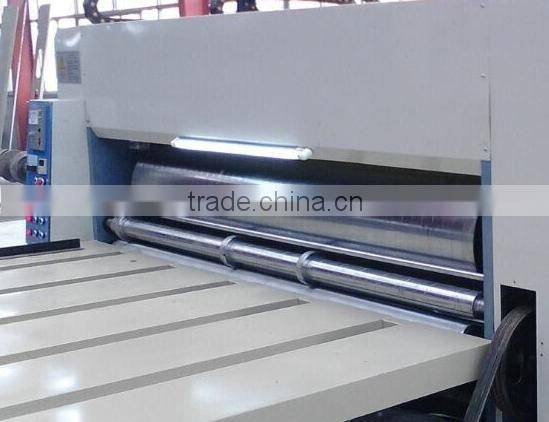

Printing part
Printing roller
1. Steel material, surface grinding and hard chrome plating.
2. Balance correction, stable operation.
3. Rachit fixed plate axis.
4. Full plating slot is suitable for 9mm plate.
5. Loading and unloading the printing plate, pedal switch control the forward and backward.
The printing pressure roller
1. The surface of the steel roller is grinding and hard chrome plating.
2. Balance correction, steady operation.
3. The gap between the printing pressure roller and the printing roller,the scal shows, adjusted by hand, the scope is 0-12mm. Adopt crosshead device, the transmitting gear will keep meshing while adjusting.
Metal anilox roller
(The high quality anilox roller adopts domestic famous manufacturers)
1. Surface adopts the advanced hard chrome plating, hard, slipper, and wearproof.
2. Anilox roller: three parts divided reasonable mesh, first unit 200mesh, second unit 220 mesh, third unit 250 mesh.
3. Pneumatic lifting the anilox roller matched with the paper feeding roller to prevent double inking and the dry of ink while stopping the machine.
4. The rubber roller(80% natural rubber and goes through high-temperater treatment)
5. Without gap steel wrapped with wearproof rubber, balance correction.
6. The middle and high of the rubber roller grinding, good transferring ink effect.
7. The rubber roller equiped with overload device, can pre-long the using life.
8. Upper and lower paper feeding roller
9. The upper roller: equipment with left and right adjustable wheel, and surface fixed with 50 degree rubber.
10. The lower roller: without gap steel surface grinding, hard chrome plating.
11.Scale shows the space between the upper and lower paper feeding roller, worn-wheel adjusting, the scope is 0-12mm, adopts crosshead connection, the gears keeps meshing while adjusting.
12. Phasing adjustable structure
13. Differential action planetary gear
14. The printing phasing adopts PLC and electrical digital adjustment ( no matter the machine are working or stopping).
15. For the horizontal position, the scale type manual adjusting.
16. Each printing unit can find its former position before stopping, which can achieve fast correcting.
17. Inking circulating
18. It adopts pneumatic diagram pump for inking, stable and easy to operate and keep in good repair.
19. The inking filter net to filter the inclusion.
20. Automatic distributing the ink device, without stopping the ink while machine stops, can prevent the ink going dry.
21. The ink cup prevent the inking splashing.
22. Steel ink fountain, automatic inking and circulating cleaning.

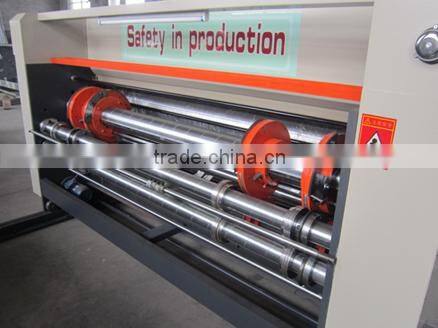

Slotting part
1. Electrical adjustment the horizontal moving of the four slotting knives pedestal.
2. Synchronous adjustment the space between the two sltting knives ( the height of box)
3. Synchronous moving the upper and lower slotting knives, paper-kicking knives, up and down creasing wheel.
4. Alloy steel materials, hearing treatment, grinding and tooth form slotting knife, width is 5-7mm
5. The alloy steel through heart treatment and grinding the edge iron which is keen and high accuracy.

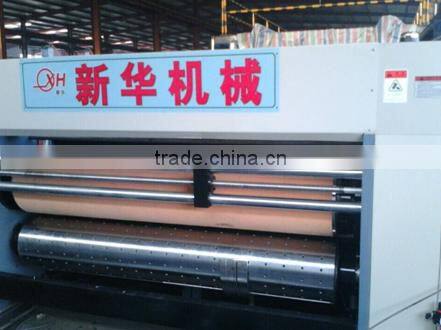

Die cutting part:
1. Electric adjustment phase (die cutter )position.
2. Die cutter rubber pad roller has automatic linear speed compensation device, to rectify the die cutter error of rubber cushion wear, axle direction automatic move left and right 60mm device
3. Die cutter roller can move left and right± 20mm
4. Equipped With rubber grinding device, rubber cushion can use again and again, lengthen the life of rubber cushion
Sample
You may like:
1. We need to test the machine working condition before delivery to customer country.
2. If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.
3. Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee.
If any questions, send me email by 24 hours, we also help you solve these problems.
Dongguang XINHUA Packing Machinery CO., Ltd. is a modern company specialized in making carton packing machines and printing machines. Our company is located near the capital city – Beijing, with Tianjin Port in the north and Jinan city in the south. We enjoy convenient transportation.
We insist on the tenet of “quality first, good faith”. We follow the spirit of “Developing and Enterprising. Hard working and Facing the world, Strict Management, Keep improving”. “People oriented” is our idea, and “clients first” is our sales policy.
Our company produces various types of machines, with beautiful looking and various sizes to meet different clients’ requests. Our products have won great popularity because of good quality, timely delivery and good services. By adhering to the concept of “technology-based development; market request as orientation; cooperating with customers honestly”, we constantly develop new products, improve product quality and perfect after-sales services.
1. Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Zhuwa industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about 2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our sole purpose providing the products with excellent quality, professional technology XINHUA packing machinery CO., LTD always attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
