ESP Electric Submersible Pump Power Cable
Specifications:
Votage: 3/6KV
Application: Electric Submersible Pump Units Power Supply
Chracteristics: Oil Rsistance, Heat Resistance and Corrosion Resistance.
1. Breif Introduction:
The ESP Electric Submersible Pump Power Cable products are used for electric submersible pump units power supply, whose rated voltage is less than 3kv or 6kv.The conductors’ permanent working temperature is 90℃,with excellent resistances to oil, heat and corrosion.
2. Voltage Class:
3KV,4KV,5KV,6KV
3. Carried Standard:
GB/T16750-2008, APIRP 11S6-2008
4. Storage Requirements:
Submersible Pumps Cables are not allowed to bump, twist, both ends of which need to keep away from moisture.
Attn: According to users' requirements, the company can produce nominal cross and corresponding wire gauge. Delivery by rolling can be packed in all-steel corrugated plate.
5. Types and Descriptions:
Model |
Products Structure |
Maximum Working Temperature |
QYYEQ type submersible power cable |
Polyimide-F46 coextruded film/EPDM composite insulation, lead sheath, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable |
150℃ |
QYJYEQ type submersible pump lead cable |
Polyimide-F46 coextruded film/EPDM composite insulation, lead sheath, PTFE band, chinlon fiber woven, galvanized(steel stainless, Monel ) steel tape armored |
150℃ |
QYYFN type submersible power cable |
Polyimide-F46 coextruded film/ fluoroplastic composite insulation, nitrile rubber sheath, PTFE band, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable |
150℃ |
QYEQNY type submersible power cable |
EPDM insulation, lead sheath, fiber band lapped, nitrile rubber public sheath, galvanized(steel stainless, Monel ) steel tape armored round submersible pump power cable |
120℃ |
QYYEQNY type submersible power cable |
Polyimide-F46 coextruded film/EPDM composite insulation, lead sheath, fiber band lapped, nitrile rubber public sheath, galvanized(steel stainless, Monel ) steel tape armored round submersible pump power cable |
150℃ |
QYEQ type submersible power cable |
EPDM insulation, lead sheath, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable |
120℃ |
QYPNY type submersible power cable |
Polypropylene insulation, complex sheath of nitrile and PVC, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable |
90℃ |
QYJYFF type submersible pump lead cable |
Polyimide-F46 coextruded film/ fluoroplastic composite insulation, chinlon fiber woven, galvanized(steel stainless, Monel ) steel tape armored submersible pump lead cable |
205℃ |
QYENY type submersible power cable |
EPDM insulation, PTFE band/ fiber band lapped, nitrile rubber sheath, galvanized(steel stainless, Monel ) steel tape armored round submersible pump power cable |
120℃ |
QYEN type submersible power cable |
EPDM insulation, nitrile sheath, PTFE band/ fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable |
120℃ |
QYPF type submersible power cable |
Polypropylene insulation, complex sheath of nitrile and PVC, PTFE band/ fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable |
90℃ |
QYPN type submersible power cable |
Modified polypropylene insulation, nitrile rubber sheath, PTFE band/ fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable |
90℃ |
QYYFF type submersible power cable |
Polyimide-F46 film/ fluoroplastic composite insulation, fluoroplastic sheath, PTFE band, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable |
180℃ |

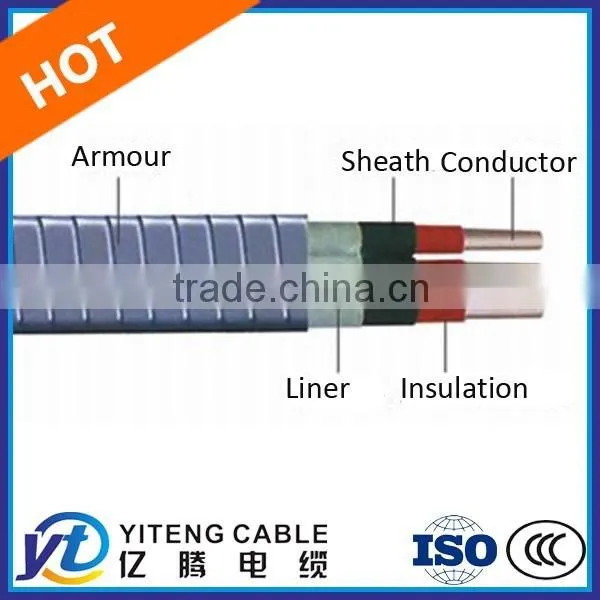

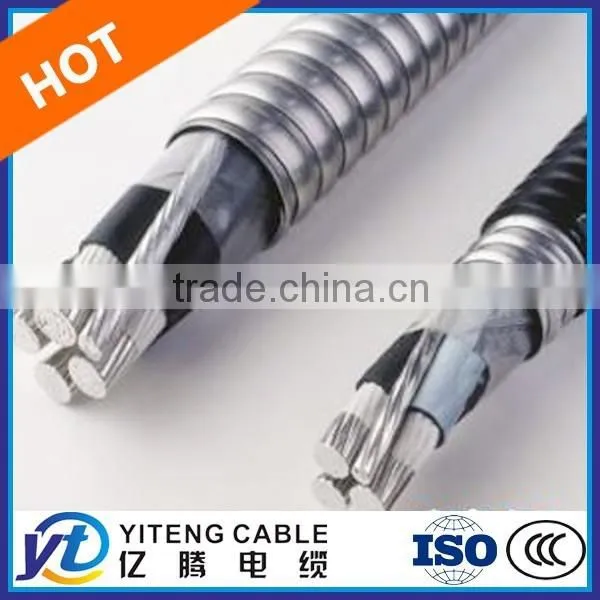

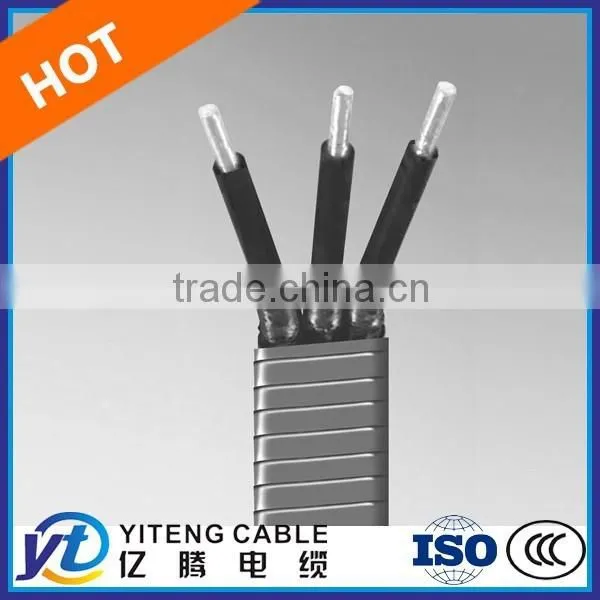

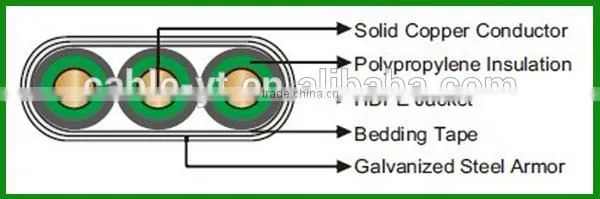

6. Structure and Picture Reference
