submersible deep well pump cable AWG standard submersible pump power cable
- 5000 Kilometer / Kilometers per Month
- TIANJIN SHANGHAI QINGDAO
- T/T Credit Card PayPal
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Hebei, China | Brand Name: | YITENG | Model Number: | QYJYEQ QYYEQ |
Insulation Material: | XLPE | Type: | Low Voltage | Application: | Other, Industrial, Computer, Mobile Phone, Network |
Conductor Material: | Copper | Jacket: | Other, Galvanized Steel |
Product Description

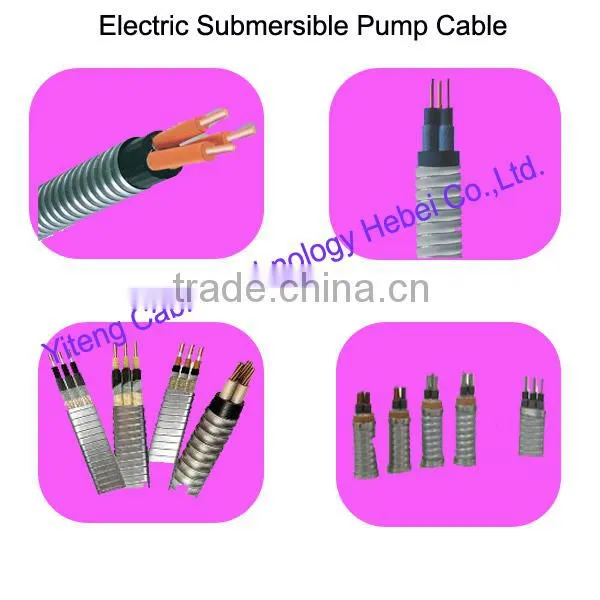

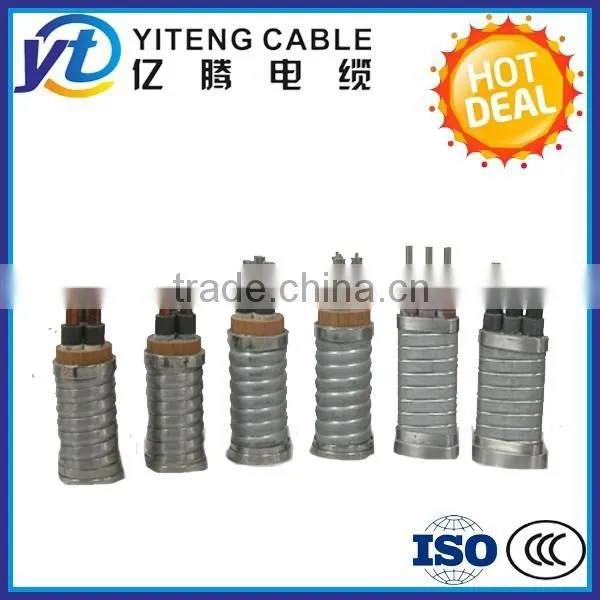

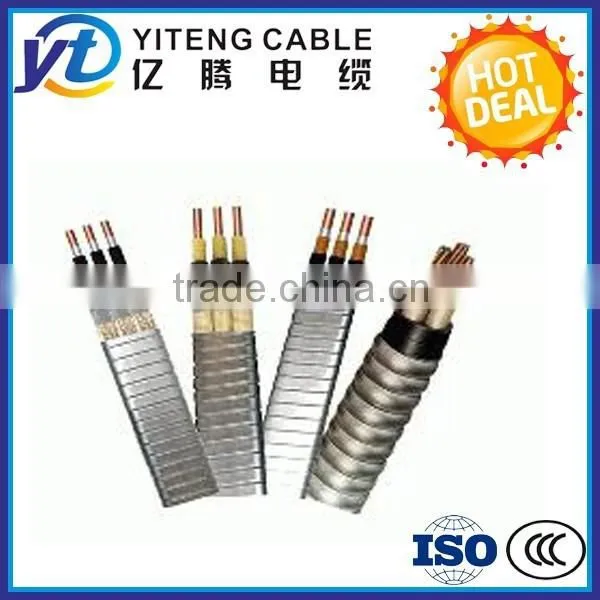

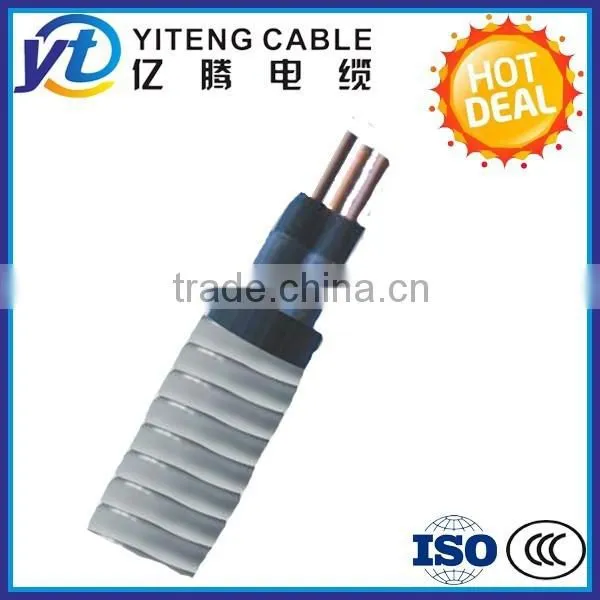

Submersible deep well pump cable AWG standard submersible pump power cable
Storage Requirements:Submersible Pumps Cables are not allowed to bump, twist, both ends of which need to keep away from moisture.
Voltage Class: 3KV,4KV,5KV,6KV
Model and Data
Model | Products Structure | Maximum Working Temperature |

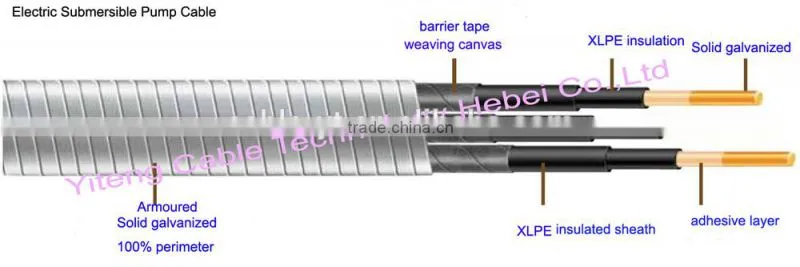

QYYEQ type submersible power cable | Polyimide-F46 coextruded film/EPDM composite insulation, lead sheath, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 150℃ |
QYJYEQ type submersible pump lead cable | Polyimide-F46 coextruded film/EPDM composite insulation, lead sheath, PTFE band, chinlon fiber woven, galvanized(steel stainless, Monel ) steel tape armored | 150℃ |
QYYFN type submersible power cable | Polyimide-F46 coextruded film/ fluoroplastic composite insulation, nitrile rubber sheath, PTFE band, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 150℃ |
QYEQNY type submersible power cable | EPDM insulation, lead sheath, fiber band lapped, nitrile rubber public sheath, galvanized(steel stainless, Monel ) steel tape armored round submersible pump power cable | 120℃ |
QYYEQNY type submersible power cable | Polyimide-F46 coextruded film/EPDM composite insulation, lead sheath, fiber band lapped, nitrile rubber public sheath, galvanized(steel stainless, Monel ) steel tape armored round submersible pump power cable | 150℃ |
QYEQ type submersible power cable | EPDM insulation, lead sheath, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 120℃ |
QYPNY type submersible power cable | Polypropylene insulation, complex sheath of nitrile and PVC, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 90℃ |
QYJYFF type submersible pump lead cable | Polyimide-F46 coextruded film/ fluoroplastic composite insulation, chinlon fiber woven, galvanized(steel stainless, Monel ) steel tape armored submersible pump lead cable | 205℃ |
QYENY type submersible power cable | EPDM insulation, PTFE band/ fiber band lapped, nitrile rubber sheath, galvanized(steel stainless, Monel ) steel tape armored round submersible pump power cable | 120℃ |
QYEN type submersible power cable | EPDM insulation, nitrile sheath, PTFE band/ fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 120℃ |
QYPF type submersible power cable | Polypropylene insulation, complex sheath of nitrile and PVC, PTFE band/ fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 90℃ |
QYPN type submersible power cable | Modified polypropylene insulation, nitrile rubber sheath, PTFE band/ fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 90℃ |
QYYFF type submersible power cable | Polyimide-F46 film/ fluoroplastic composite insulation, fluoroplastic sheath, PTFE band, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 180℃ |
