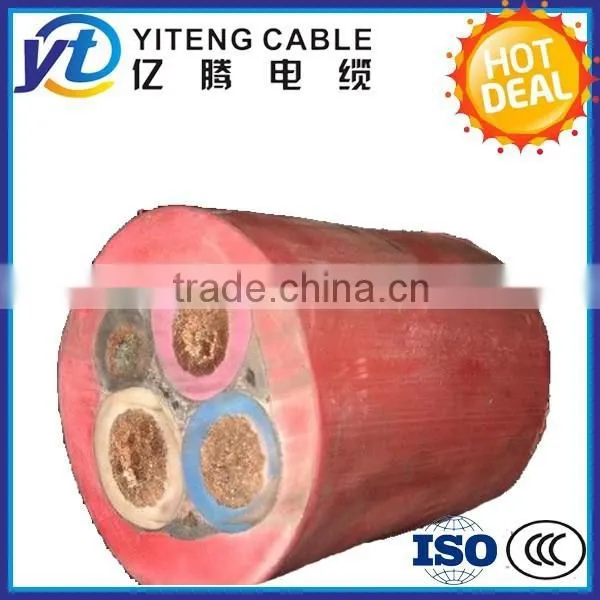

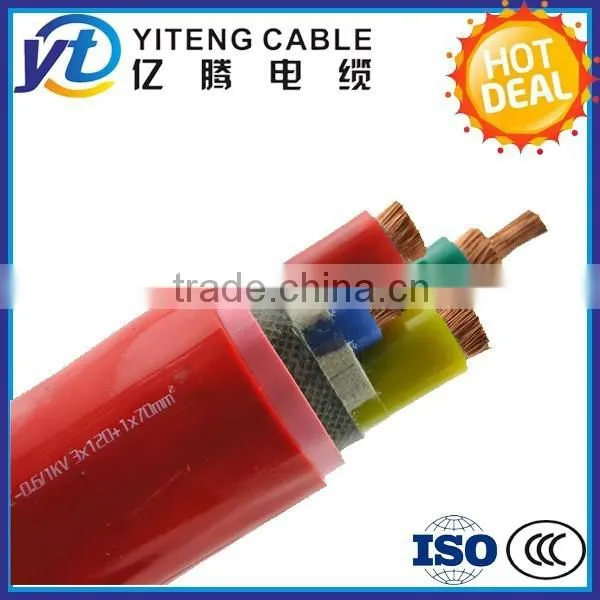

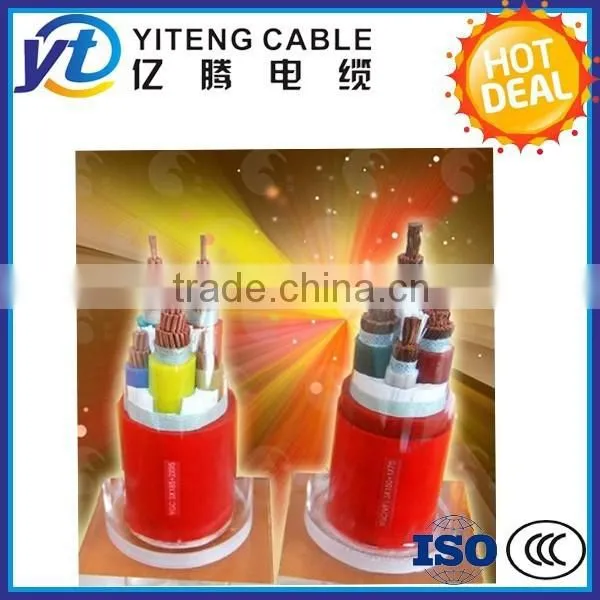

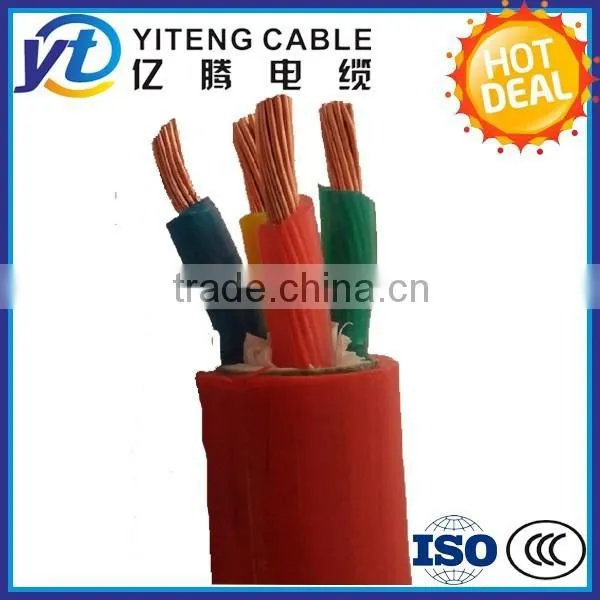

Silicone rubber insulated heat-resistant silicone rubber sheath flexible cable
Standard
Q/12JH4065.1-2002
Scope
This product is suitable for steel, metallurgy industry and other high-temperature environments, AC rated voltage 300-500V ,450-750V, 1140V and below electrical equipment electrical wiring .
Use features
1 Rated voltage :. U0 / U is 300/500V ,450-750V, 1140V.
2 cable conductor allowable working temperature does not exceed 180 ℃.
3 Laying temperature should not be lower than -60 ℃.
4 Recommended bending radius:
Flat flexible cable bending radius of the cable should be not less than 15 times the size of the small side .
Other cables should be no less than 6 times the cable diameter.
Type of cable
Model |
Name |
The main purpose |
JHXG |
Silicone rubber insulated electrical wiring |
H grade electrical wiring |
YGZ |
Silicone rubber insulated heat-resistant silicone rubber sheath flexible cable medium |
For a variety of mobile electric equipment and tools |
YGZB |
Silicone rubber insulated silicon rubber sheathed flat flexible cable medium heat |
For a variety of mobile electric equipment and tools |
YGC |
Silicone rubber insulated heat-resistant silicone rubber sheath flexible cable for heavy |
For a variety of mobile electronic equipment , can withstand greater mechanical force |
YGCB |
Silicone rubber insulated heat-resistant silicone rubber sheath heavy flat flexible cable |
For a variety of mobile electronic equipment , can withstand greater mechanical force used |
Cable specifications
Model |
Rated voltage (V) |
Number of cores |
Nominal cross section (mm2) |
JHXG |
1140 |
1 |
0.5-150 |
YGZ |
300/500 |
2,3 4,5,6 4(Three small) |
0.3-6 0.75-6 1.5-6 |
YGZB |
300/500 |
2,3,4,5,6 |
0.75-6 |
YGC |
450/750 |
1 2 3,4 5 4(Three small) |
1.5-400 1.5-95 1.5-150 1.5-25 2.5-150 |
YGCB |
450/750 |
2,4,4(Three small) 3 5 |
1.5-120 1.5-150 1.5-70 |
YITENG COMPANY
Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
