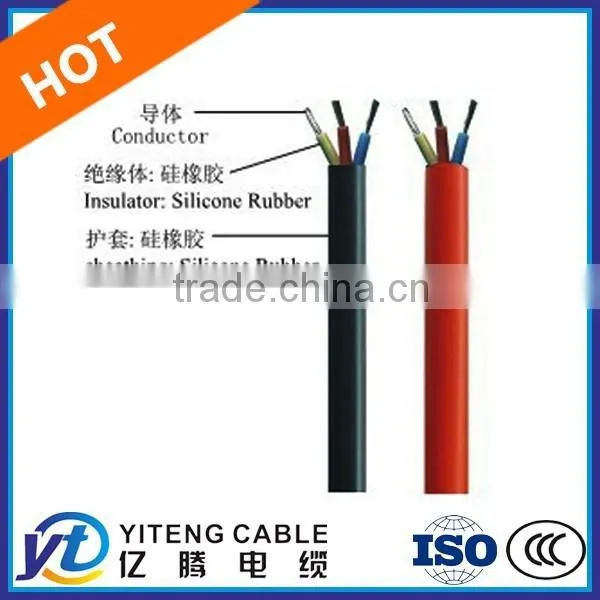

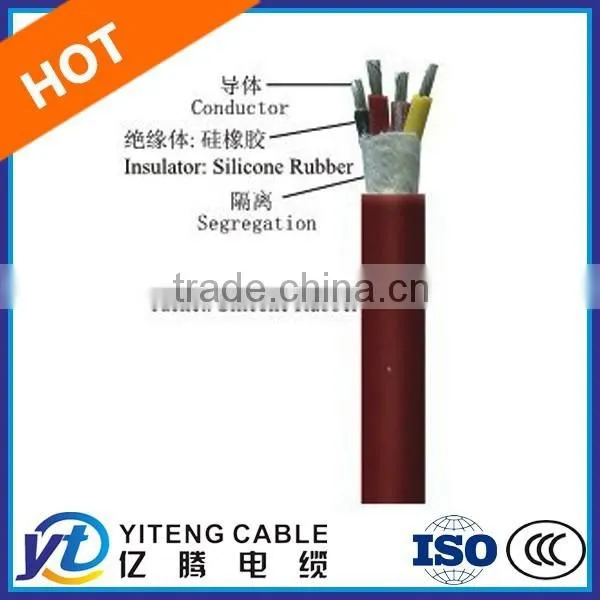

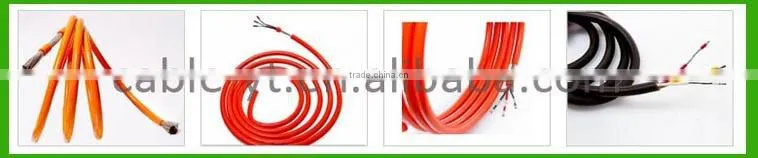

High Flexible Silicone Rubber Insulated High Temperature Power Cable
1. Brief Introduction to High Flexible Silicone Rubber Insulated High Temperature Power Cable
The silicon rubber insulated and sheathed power cable takes advantages of extruded tubing technique which improves many properties of our product, such as reliability, water proof property, resistance to acid, alkali, aging, radiance, corrosive gas as well as low temperature, etc. Meanwhile, it also offers stable performance under high temperature, and it is widely applied for harsh environment.
2. Technical Parameters for High Flexible Silicone Rubber Insulated High Temperature Power Cable
1. Rated voltage U0/U: 0.6/1kV Silicone Rubber Insulated High Temperature Power Cable
2. Max. working temperature: 180℃
3. Min. ambient temperature for working: -60℃ for fixed laying
4. Min. ambient temperature for laying: -25℃
5. Min. bending radius: 10 times of the overall diameter
3. Related Names for High Flexible Silicone Rubber Insulated High Temperature Power Cable
Temperature Resistant Cable Manufacturer | Industrial Energy Supply | Flexible Installation Electrical Product
4. Model Explanation for High Flexible Silicone Rubber Insulated High Temperature Power Cable
| Model | Descriptions |
| YGC | Silicon rubber insulated and sheathed power cable |
| YGCR | Silicon rubber insulated and sheathed flexible power cable for movable applications |
| YGCP | Silicon rubber insulated and sheathed copper braid shielded power cable |
| YGG2G | Silicon rubber insulated and sheathed power cable with steel tape armor |
| JGG | Silicon rubber insulated and sheathed installation wire |
| JGGR | Movable silicon rubber insulated and sheathed soft installation wire |
| JGGP | Silicon rubber insulated and sheathed, copper braid shielded installation wire |
| Code | Meaning |
| Y | Series code (movable soft cable) |
| G | Silicon rubber |
| C | Heavy type |
| 2 | Steel tape armor |
| P | Copper braid shield |
| R | Multi-strand conductor |
Q/321011 KLA2003-2009: silicon rubber insulated and sheath high temperature resistant cables
8. Qualification for High Flexible Silicone Rubber Insulated High Temperature Power Cable
1. The DC resistance of R type conductor meets the requirements of GB 3956.
2. The insulation resistance at 20℃ is not lower than 100MΩ•km.
3. The finished product is able to pass the voltage withstand test without breakdown, and the test condition is AC 50Hz, 3.5kV, 5 minutes.
9. Applications for High Flexible Silicone Rubber Insulated High Temperature Power Cable
This silicon rubber insulated and sheathed high temperature power cable is suitable for fixed power transmission and portable electrical apparatus whose rated voltage is 0.6/1kV AC or lower. This product is soft, and it allows convenient laying as well as long service life. Thus, it is widely used in different fields, such as metallurgy, petrochemical product, electrical industry, electronic product, automobile manufacturing industry and others.
With Yiteng, all cables are produced by strict inspection and testing:
1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.
2). Production Procedure: Cables in Yiteng are produced by advanced cable production machines.
3). Testing: Cables in Yiteng will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…
4). Package and Shippment:
With Yiteng Cable,
1. Cables are packed in standard export drums or other ways per customer's requirement;
2. Cables are handled and shipped carefully to ensure perfect package upon customer's receipt.
Yiteng Cable Technology Hebei Co., Ltd. sincerely ensure every present and potential customers and friends that we will always:
1. Make A Response with 12 Hours to All Custoemers;
2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;
3. Factory Direct Supply and OEM Service of Cable Products;
4. Yiteng Cable will not only serve goods before selling, but will be better and better during sales and after sales;
5. All Customers' Information will be kept confidential without permission.
6. Yiteng Cable can also help customers to seek for and inspect goods and factories of other categories once our cable deal is stable.
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables, including:
√ Aluminum Alloy Cable with or without Armor and Interlock,
√ Control Cable with Multi-Cores,
√ Computer Cable with Individual and General Shileding and PE/ PVC/ XLPE Insulation,
√ Shielded Cable or Screened Cable,
√ ABC Cable in Aluminum for Overhead Application,
√ Power Cable with PE/PVC/XLPE Insulation and PVC Sheath and Armor,
√ Rubber Cable for General Purposes, Welding Machines or for Mining,
√ Armored Cable with Steel Tape or Steel Wire Armor,
√ PVC Cable with PVC Insulation and PVC Sheath,
√ Low Voltage Power Cable,
√ Medium Voltage Power Cable,
√ Fire Resistant Cable and Flame Retardant Cable,
√ Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable,
√ High Temperature Cable, including silicone rubber insulated cable and Teflon insulated cable
