Fluoroplastics Insulated Heat-Resistant Power Cable
Brief Introduction
The processing of fluoroplastic is not easy, but we successfully overcome this technical difficulty, and this material is used to make our fluoroplastics insulated heat-resistant power cable. Due to the superb stability of fluoroplastic, our product features stable electrical performance, and it is also resistance to acid, alkali, oil, corrosion, water, aging, corrosive gas, high temperature, etc.
Related Names
Electrical Cable Wholesaler | Flame Retardant Power Supply | Power System Component

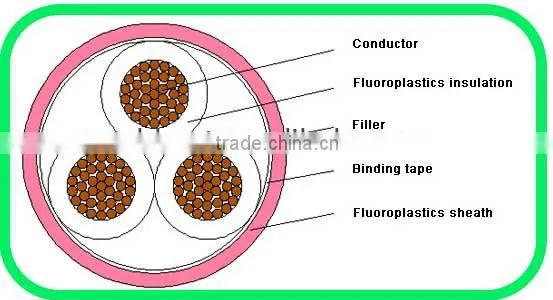

Structure
Fluoroplastics insulated heat-resistant power cable
Application Properties
1. Rated voltage U0/U: 0.6/1kV AC
2. Max. working temperature: 200℃ for FEP (F46), and 260℃ for PFA.
3. Min. ambient temperature for working: -60℃ for fixed fluoroplastic or silicon rubber sheath, and -15℃ for the non-fixed laying
4. Ambient temperature for laying: ≥0℃ (≥-25℃ for fluoroplastic, silicon rubber and NBR sheathed cables)
5. Min. bending radius: 15 times of overall diameter for single core type, and 10 times of overall diameter for multi-core type.

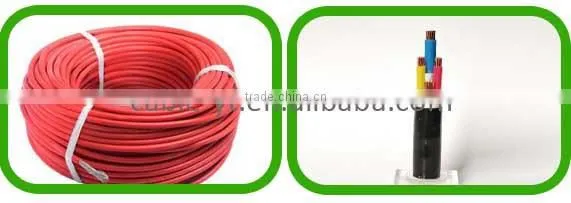

Picture Reference
Model Explanation
| Model | Descriptions | Working Temperature (℃) |
| FF46 | Fluoroplastics insulated and sheathed power cable | -60~200 |
| FF46P | Fluoroplastics insulated and sheathed, copper braid shielded power cable | -60~200 |
| ZR-F46(FV) | Fluoroplatics insulated and flame-retardant PVC sheathed power cable | -40~105 |
| YGC-F46(FG) | Fluoroplastics insulated and silicon rubber sheathed power cable | -60~180 |
| YVF-F46 | Fluoroplastics insulated and flame-retardant NBR PVC sheathed power cable | -60~105 |
Code Explanation
| Code | Meaning |
| Series Code | Omitted |
| F (F46) | FEP (F46) |
| VF | NBR |
| G | Silicon rubber |
| ZR (V) | Flame-retardant PVC (70℃, 90℃, 105℃) |
| 22 | Steel tape armored and PVC sheathed outside |
| 32 | Thin steel wire armored and PVC sheathed outside |
| P | Copper braid shield |
| R | Multi-strand soft conductor |
Standards
Q/321011KLA209-2009
Qualification
1. The DC resistance of this heat-resistant power cable is in accordance with GB 3956.
2. The insulation resistivity at 20℃ is higher than 500MΩ•km.
3. The end product is detected by the voltage withstand test, and it should not be damaged during the 5-minute-testing. Additionally, the test voltage is 3.5kV AC, and the frequency is 50Hz.
Applications
This fluoroplastics insulated power cable is used as the fixed power transmission and distribution line, or linking wire for motor. It offers stable electrical performance under high temperature, and it also shows the advantages of large current carrying ability as well as long lifespan. As a result, this product is widely accepted in the metallurgy, electrical industry, petrochemical field, large construction, automobile manufacturing and others.
Quality Assurance:
With Yiteng, all cables are produced by strict inspection and testing:
1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.
2). Production Procedure: Cables in Yiteng are produced by advanced cable production machines.
3). Testing: Cables in Yiteng will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…
4). Package and Shippment:
With Yiteng Cable,
1. Cables are packed in standard export drums or other ways per customer's requirement;
2. Cables are handled and shipped carefully to ensure perfect package upon customer's receipt.
Yiteng Cable Technology Hebei Co., Ltd. sincerely ensure every present and potential customers and friends that we will always:
1. Make A Response with 12 Hours to All Custoemers;
2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;
3. Factory Direct Supply and OEM Service of Cable Products;
4. Yiteng Cable will not only serve goods before selling, but will be better and better during sales and after sales;
5. All Customers' Information will be kept confidential without permission.
6. Yiteng Cable can also help customers to seek for and inspect goods and factories of other categories once our cable deal is stable.
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables, including:
√ Aluminum Alloy Cable with or without Armor and Interlock,
√ Control Cable with Multi-Cores,
√ Computer Cable with Individual and General Shileding and PE/ PVC/ XLPE Insulation,
√ Shielded Cable or Screened Cable,
√ ABC Cable in Aluminum for Overhead Application,
√ Power Cable with PE/PVC/XLPE Insulation and PVC Sheath and Armor,
√ Rubber Cable for General Purposes, Welding Machines or for Mining,
√ Armored Cable with Steel Tape or Steel Wire Armor,
√ PVC Cable with PVC Insulation and PVC Sheath,
√ Low Voltage Power Cable,
√ Medium Voltage Power Cable,
√ Fire Resistant Cable and Flame Retardant Cable,
√ Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable,
√ High Temperature Cable, including silicone rubber insulated cable and Teflon insulated cable
Experts of Yiteng Cable will always wait to answer all your questions!
