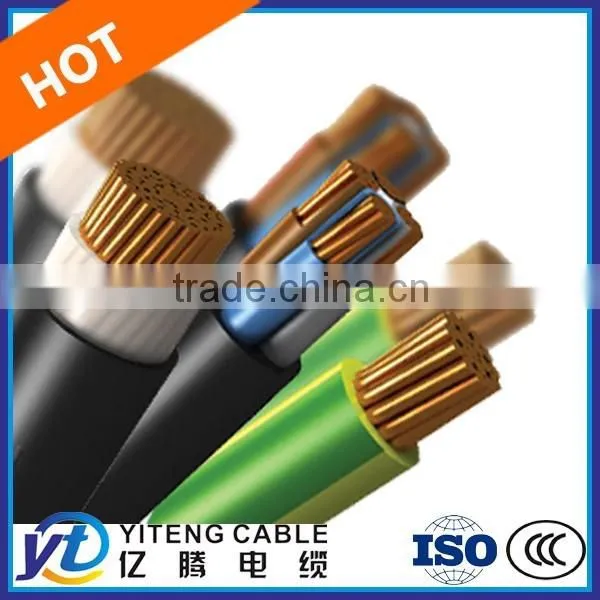

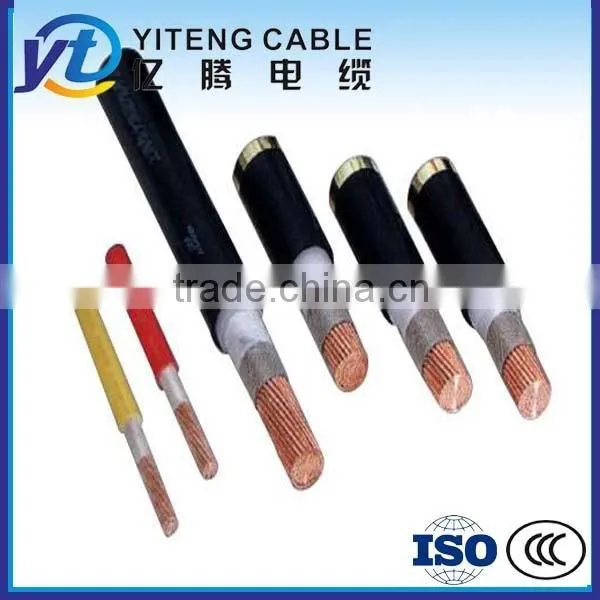

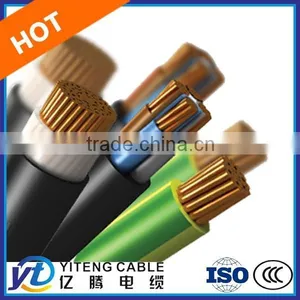

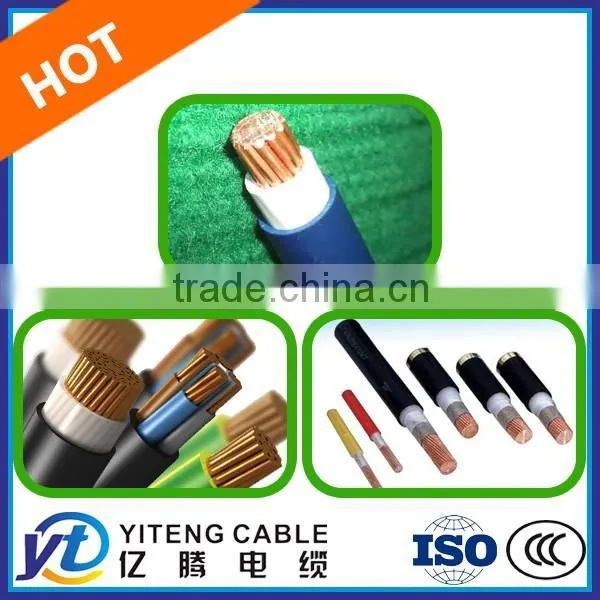

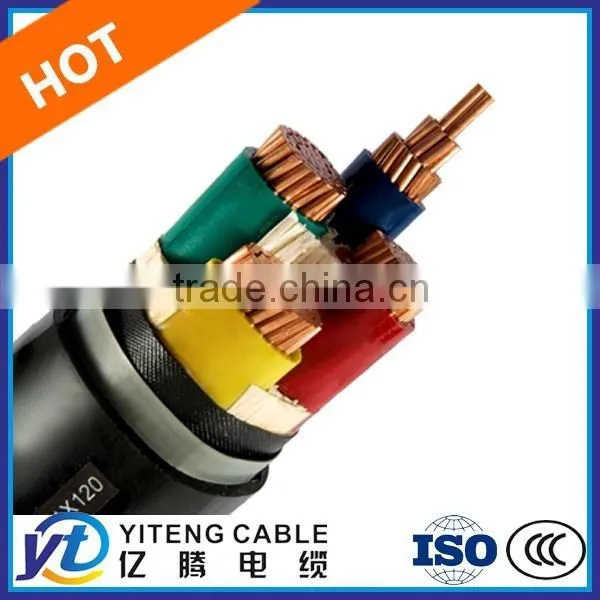

0.6/1KV Plastic Insulated Fire-Resistant Power Cable
- 1000000 Meter / Meters per Month
- Tianjin/ Xingang
- T/T Credit Card PayPal
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Hebei, China | Brand Name: | YITENG | Model Number: | YJV,NH-YJV,YJV22,NH- YJV22,YJLV,NH-YJLV |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Underground |
Conductor Material: | Other, Aluminium or Copper | Jacket: | PVC |
Product Description
0.6/1KV Plastic Insulated Fire-Resistant Power Cable
This 0.6/1kV plastic insulated fire-resistant power cable is our qualified product, and it can offer fire proofing performance. It is resistant to fire and high temperature, so it can still work safely for some time even if fire takes place. Meanwhile, the conductor uses fire-proof tape which can relieve or stop the fire caused by the heat generated during the long time working. Thus, this product is suitable for place that highly requires fire resistant performance.
1). Standards for 0.6/1KV Plastic Insulated Fire-Resistant Power Cable
The 0.6KV/1KV PVC insulated (fire-resistant) power cable meets the national standard of GB/T 12706-2008 which is equal to IEC 60502-2004. The fire resistant property conforms to the GB/T 18380-2008 which means that it also satisfies IEC 60332-2004.
2). Application Properties for 0.6/1KV Plastic Insulated Fire-Resistant Power Cable
1. Rated voltage U0/U: 0.6/1kV
2. Permitted long-term working temperature: 70℃
3. Short circuit: Conductor temperature ≤160℃, lasting time ≤5 seconds
4. The ambient temperature should above 0℃ when laying, and preheating is necessary if the temperature is below 0℃. The laying process is not affected by the drop height.
5. Minimum bending radius during laying: 20 times of outer cable diameter for single core type, and 15 times for multi-core type.
6. The neutrality of five-core power cable is distinct from the earth wire, and the system is very stable.
3). Applications for 0.6/1KV Plastic Insulated Fire-Resistant Power Cable
This PVC insulated power cable is suitable for electricity transmission and distribution line whose rated voltage is 0.6/1kV. The fire resistant type is used in places where high cable density and good fire-proof property are required, such as subway, power station, high-rise building, entertainment place, large industrial and mining enterprises, etc.
4). Model Explanation for 0.6/1KV Plastic Insulated Fire-Resistant Power Cable
Model | Nominal Cross Section (mm2) | ||||
Single Core | Two Core | Three Core | Four Core | Five Core | |
NH-VV NH-YJV | 1.5-800 | 1.5-800 | 1.5-800 | 1.5-800 | 1.5-800 |
NH-VV22 NH-YJV22 | 6-400 | 4-300 | 4-300 | 4-300 | 4-300 |
NH-VV32 NH-YJV32 | 10-800 | 4-300 | 4-300 | 4-300 | 4-300 |
Note:
1. The models also contain fire-resistant type.
2. When signing the contract, the fire resistant type must be specified. For example, if type A is preferred, please add "A" to the end of "FR", forming "FRA", and A is usually used in places where the fire resistant property is highly required. B and C follow the same rule. In addition, if there is no letter after "FR", the cable will be produced following "FRC".
5). Production Range for 0.6/1KV Plastic Insulated Fire-Resistant Power Cable
Note:
1. For the four-core type, the four cores have equal cross sections, or three of them have bigger cross section than the left one. For the five-core type, the five cores may share the same cross section, or four of them are bigger than the rest, or three of them are bigger while the other two are smaller.
2. Non-magnetic material or material with reduced magnetic structure is used to armor the single core cable.
6). Correction Factors of Current Capacity for Different Thermal Resistivity Coefficients of Soil
Rated Voltage (kV) | Cross Section (mm2) | Thermal Resistivity Coefficient of Soil (K·m/W) | ||||
0.8 | 1.0 | 1.2 | 1.5 | 2.0 | ||
0.6/1 1.8/3 | 35 and below | 1.06 | 1.00 | 0.95 | 0.88 | 0.87 |
50-100 | 1.08 | 1.00 | 0.94 | 0.87 | 0.77 | |
185 and above | 1.09 | 1.00 | 0.93 | 0.85 | 0.76 |
Note: Thermal resistivity coefficient of soil: PT=1.0 K•m/W.
7). Correction Factors of Current Capacity at Different Ambient Temperature
Operating Temperature (℃) | Air Temperature (℃) | Soil Temperature (℃) | ||||||||||||||
10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | |
90 | 1.26 | 1.22 | 1.18 | 1.14 | 1.09 | 1.04 | 1.00 | 0.94 | 0.89 | 1.14 | 1.11 | 1.07 | 1.04 | 1.00 | 0.96 | 0.92 |
Note: Ambient temperature: 40℃ for air and 25℃ for soil.
8). Cable Length for 0.6/1KV Plastic Insulated Fire-Resistant Power Cable
The fire-resistant power cable is usually delivered in drums, and the total length is over 100 meters. Meanwhile, 20 meter long cable is also transferred, but its amount should within 10% of the total length. Based on the negotiation, our product can be delivered at any length, and the length error is ±0.5%.

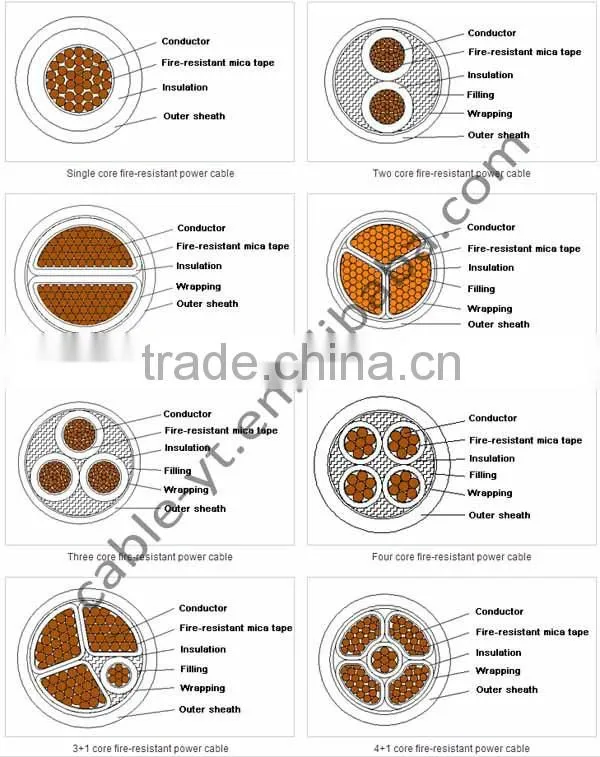

9). Structure for 0.6/1KV Plastic Insulated Fire-Resistant Power Cable
With Yiteng, all cables are produced by strict inspection and testing:
1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.
2). Production Procedure: Cables in Yiteng are produced by advanced cable production machines.
3). Testing: Cables in Yiteng will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…
4). Package and Shippment:
With Yiteng Cable,
1. Cables are packed in standard export drums or other ways per customer's requirement;
2. Cables are handled and shipped carefully to ensure perfect package upon customer's receipt.
Yiteng Cable Technology Hebei Co., Ltd. sincerely ensure every present and potential customers and friends that we will always:
1. Make A Response with 12 Hours to All Custoemers;
2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;
3. Factory Direct Supply and OEM Service of Cable Products;
4. Yiteng Cable will not only serve goods before selling, but will be better and better during sales and after sales;
5. All Customers' Information will be kept confidential without permission.
6. Yiteng Cable can also help customers to seek for and inspect goods and factories of other categories once our cable deal is stable.
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables, including:
√ Aluminum Alloy Cable with or without Armor and Interlock,
√ Control Cable with Multi-Cores,
√ Computer Cable with Individual and General Shileding and PE/ PVC/ XLPE Insulation,
√ Shielded Cable or Screened Cable,
√ ABC Cable in Aluminum for Overhead Application,
√ Power Cable with PE/PVC/XLPE Insulation and PVC Sheath and Armor,
√ Rubber Cable for General Purposes, Welding Machines or for Mining,
√ Armored Cable with Steel Tape or Steel Wire Armor,
√ PVC Cable with PVC Insulation and PVC Sheath,
√ Low Voltage Power Cable,
√ Medium Voltage Power Cable,
√ Fire Resistant Cable and Flame Retardant Cable,
√ Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable,
√ High Temperature Cable, including silicone rubber insulated cable and Teflon insulated cable
