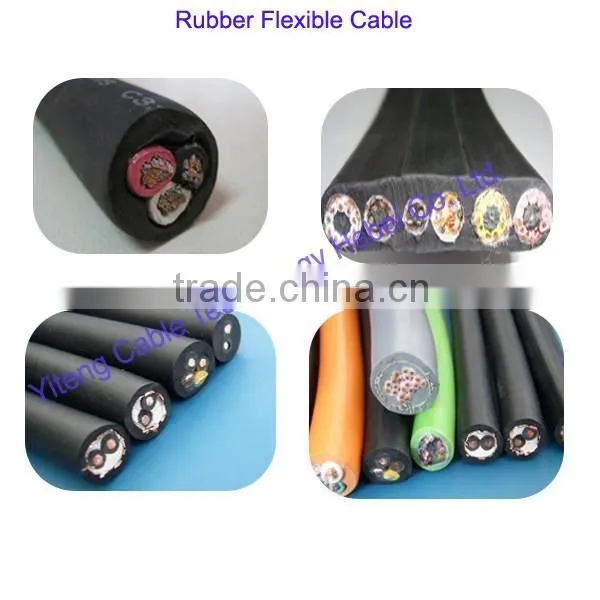

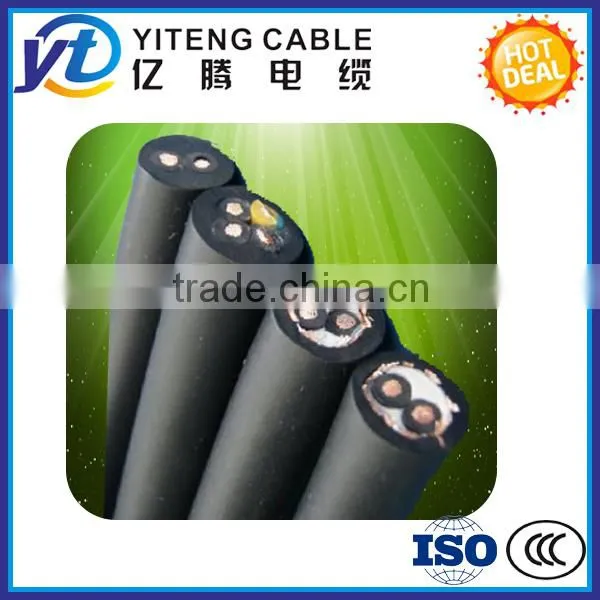

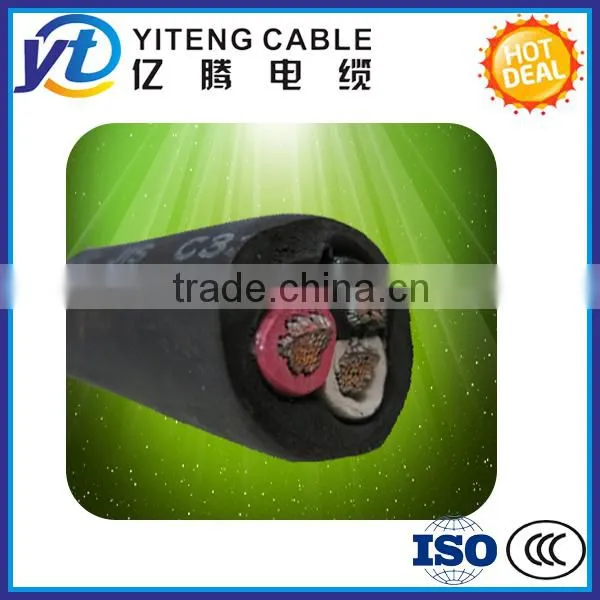

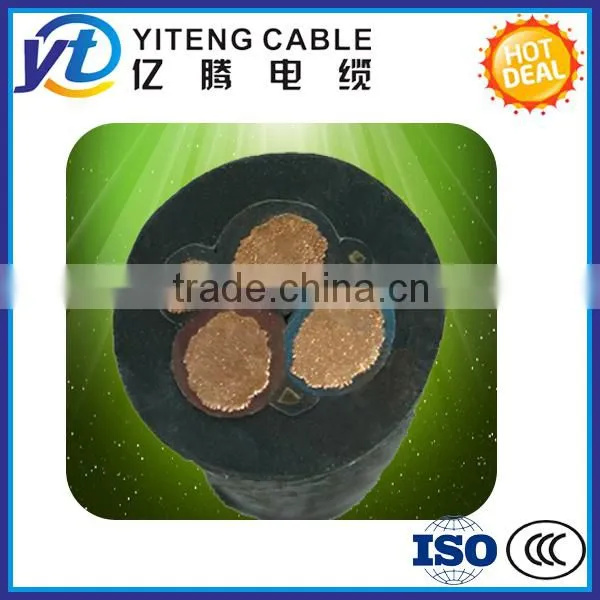

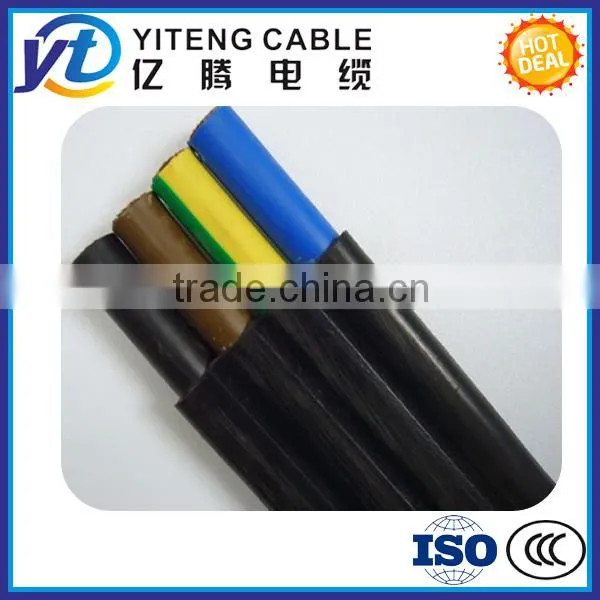

450/750V for mining purpose Flexible rubber sheathed cable
Specifications
General Rubber Sheathed Flexible Cable is suitable for use in electric equipment like daily-use electric appliances, agricultural machinery, engineering machinery, elevating and transport machinery and electric machinery etc.
1. Standard: According to GB5013-85(Equal to IEC245), also can do by standard of ASTM, BS, DIN and AS/NZS or other standards.
2. Rated Voltage: 450/750V; 300/500V; 300/300V
3. Construction: Conductor: Copper; Insulation: Rubber Inner sheath: Rubber
4. No. Of cable cross:1 core(Single core), 2cores(Double cores), 3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core), 5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores). We provide armored type and non-armored type for the cables stated above. Also can do according to the customer's request.
5. Characters: A. Max long-time operating temperature of conductor: 65° C B. Light-duty/Medium-duty/Heavy-duty rubber sheathed flexible cable optional C. Insulation resistance within the insulated cores of the cable converted to 20° C. Section 35mm2 and below should be not less than 50MΩ . KM, 50~150 mm2 not less than 30 MΩ . KM. 185~400 mm2 not less than 20 MΩ . KM.
Technical data
Model |
Name |
Main usage |
YQ,YQW |
Light model rubber sheath flexible cable |
Used for light portable electric equipment and tools |
YZ,YZW |
Middle model rubber sheath flexible cable |
Used for various portable electric equipment and tools |
YC,YCW |
Heavy model rubber sheath flexible cable |
Used for various portable electric equipment which can bear larger mechanical force effect. |
Application
Type |
Name |
Application scope |
YC |
Heavy neoprene rubber sheathed flexible cable |
For connecting various movable electric equipment, able to bear large mechanical force. |
YCW |
Field heavy neoprene rubber sheathed flexible cable |
For connecting various movable electric equipment, able to bear large mechanical force and to resist weather and oil. |
YZ |
Medium-sized neoprene rubber sheathed flexible cable |
For connecting various movable electric equipment, able to bear general mechanical force. |
YZW |
Field medium-sized neoprene rubber sheathed flexible cable |
For connecting various movable electric equipment, able to resist weather and oil. |
Cores No.
Type |
Core number |
Nominal sectional area of conducting core (mm) |
YC(YCW) |
1 2 3/4/3+1 5 |
1.5-400mm 1.5-95mm 1.5-150mm 1.5-25mm |
YZ(YZW) |
1 2 3/4/3+1 5/6 |
0.75-6mm |
Nominal cross-section mm2
Nominal cross-section mm2 |
No. /Dia of stranding mm |
Nominal sheath thickness mm |
Average of the max. outer diameter mm |
conductor resistance at 20 degree ≤ Ω /km |
Weight kg/km |
10 |
322/0.20 |
1.8 |
9.7 |
1.91 |
151.6 |
16 |
513/0.20 |
2.0 |
11.5 |
1.61 |
224.0 |
25 |
798/0.20 |
2.0 |
13.0 |
0.758 |
326.0 |
35 |
1121/0.20 |
2.0 |
14.5 |
0.536 |
430.0 |
50 |
1596/0.20 |
2.2 |
17.0 |
0.379 |
600.0 |
70 |
2214/0.20 |
2.4 |
19.5 |
0.268 |
818.1 |
95 |
2297/0.20 |
2.6 |
22.0 |
0.198 |
1082.7 |
Superiorities:
Product details 1. Insulation: Neoprene rubber 2. Rated voltage: U 0 /U 450/750V and 300/500V. 3. Purpose: For power units, various movable field electric equipment. 4. Properties: "W" is to resist weather and oil, suitable for use outdoors or at oil contact places. 5. Long-term highest working temperature of cable core: 60º C 6. Ambient temperature for cable layin: YC, YZ: ≥ -40º C, YCW, YZW: ≥ -15º C
Length of delivered cable The length of single cable delivered shall not be less than 100m. According to the agreement reached between two parties, it is allowed to deliver the cables of any length. Packaging & shipping Packaging Detail: International wooden drums or according to your requirement. Delivery Detail: In 10 working days or as the quantity required.
Yiteng Cable Technology Hebei Co., Ltd
Main products:Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc
FAQ
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, HebeiProvince, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy? A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list? A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
