Flexible Rubber Sheath Electrical Cable for Welding | Welding Cable
Yiteng Cable - Your Best Business Partner in the Cable Field!
Yiteng Cable - Always At Your Service!
Company Profile:
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables, including:
Δ Aluminum Alloy Cable with or without Armor and Interlock,
Δ Control Cable with Multi-Cores,
Δ Computer Cable with Individual and General Shileding and PE/ PVC/ XLPE Insulation,
Δ Shielded Cable or Screened Cable,
Δ ABC Cable in Aluminum for Overhead Application,
Δ Power Cable with PE/PVC/XLPE Insulation and PVC Sheath and Armor,
Δ Rubber Cable for General Purposes, Welding Machines or for Mining,
Δ Armored Cable with Steel Tape or Steel Wire Armor,
Δ PVC Cable with PVC Insulation and PVC Sheath,
Δ Low Voltage Power Cable,
Δ Medium Voltage Power Cable,
Δ Mining Cable,
Δ High Temperature Cable,
Δ Fire Resistant Cable and Flame Retardant Cable,
Δ High Temperature Cable,
and other kinds of cables per customer's specific requirement...
Product Description
Flexible Rubber Sheath Electrical Cable for Welding | Welding Cable
1. Service Cnditions for Flexible Rubber Sheath Electrical Cable for Welding | Welding Cable
1.1. The rubber welding cable can be used in the connectors of electric weld and pliers of the electrical welding
whose toward earth voltage of the low voltage is not more than AC 200V and the pulsating DC peak value is 400V.
1.2. The long term permissible working temperature of cable conductive core is not more than 65°C.
Nominal Cross-section 10mm2-185mm2
2. Type & Specification for Flexible Rubber Sheath Electrical Cable for Welding | Welding Cable
Welding Cable Type and Description | ||||||
Welding Cable Types |
Welding Cable Name
|
≤(℃) |
||||
YH |
Natural rubber sheath for welding machine cable
|
65℃ |
||||
YHF |
Horoprene rubber or other syntheitic rubber sheath welding machine cable |
65℃ |
||||
| Yiteng Cable Technology Produces Flexible Rubber Cable for Welding Machine. Welcome Your Inquiry! | ||||||
Welding Cable Specification | ||||||
Welding Cable Cross-section (mm2) |
Welding Cable Conductor
Wires*Dia.
|
Welding Cable Insulation Thickness(mm) |
Diameter
Min.
|
Diameter
Max
|
Resistance at 20 degree ≤(Ω/km) |
Weight
Kg/km
|
10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
146 |
16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
218.9 |
25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
316.6 |
35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
426 |
50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
592.47 |
70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
790 |
95 |
2997/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
1066.17 |
120 |
1702/0.30 |
2.8 |
19.0 |
24.0 |
0.161 |
1348.25 |
150 |
2135/0.30 |
3.0 |
21.0 |
27.0 |
0.128 |
1648.5 |
185 |
1443/0.40 |
3.2 |
22.0 |
29.0 |
0.106 |
1983.8 |

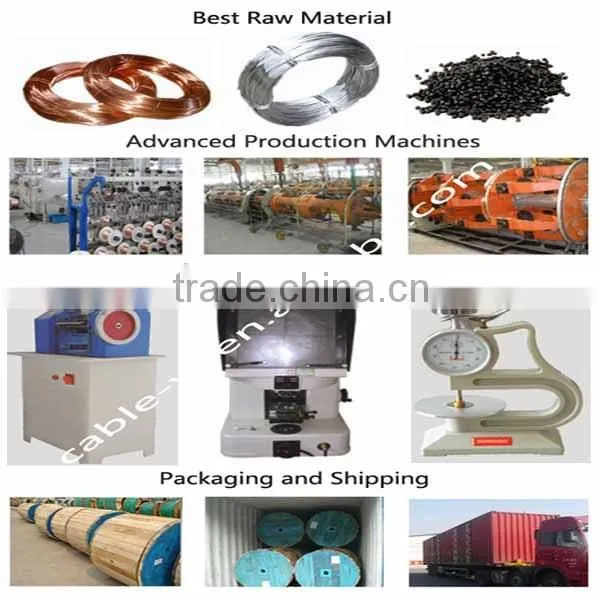

Quality Assurance:
With Yiteng, all cables are produced by strict inspection and testing:
1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.
2). Production Procedure: Cables in Yiteng are produced by advanced cable production machines.
3). Testing: Cables in Yiteng will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…
4). Package and Shippment:
With Yiteng Cable,
1. Cables are packed in standard export drums or other ways per customer's requirement;
2. Cables are handled and shipped carefully to ensure perfect package unpon customer's receiving.
Service Commitment-Why Choose US?
Yiteng Cable’s business philosophy is and always remains “Helping Customers to Succeed”. We commit ourselves and our resources to the development of the cable industry by establishing strategic cooperation with global agents and customers.
All for Customers—More Than A Promise
Apart from supplying good quality cables, our service teams are always ready to provide expertise to customers.
Questions and Answers!
Experts of Yiteng Cable will always wait to answer all your questions!
1. When was Yiteng Cable founded?
Our factory was first establlished in Year 1994 and then it changed names several times.
2. What kinds of cables does Yiteng Cable produce?
1). Overhead Line Cables: Bare Conductor: AAC, AAAC, ACAR, ACSR;
ABC Cable( Aerial Bundle Cable): Solid Core, Duplex, Triplex, Quadruplex Service Drop, etc;
2). Alluminum Alloy Cable;
3). Shield Cable;
4). Control Cable;
5). Power Cable;
6). Special Cable in accordance with Customer's specific requirement.
3. What certificates does Yiteng Cable has been approved?
Yiteng Cable has been approved successfully by CCC, ISO9001 and ISO14001, SGS, etc;
4. What's the Minimum Order Quantity?
It depends on the production line. For the Overhead Line Cable, the production line is long, so the MOQ should be long enough for the production line to run.
5. Can customers audit Yiteng Cable?
Sure, Yiteng Cable alwlays welcome customers, home and aborad, come and audit the factory before cooperation. Cables in Yiteng can also be inspected by customers personally or the third party every time before shippment.
Pls click and contact us for any question or problem! YITENG CABLE will always be at your service.
