EPR Insulated Power Cable for Power Plant, Power Station and Mining Areas

EPR Insulated Power Cable  for Power Plant, Power Station and Mining Areas

--Yiteng Cable-- a Specialized Cable Manufacturer for 20 Years!

--OEM Service Provided,

--Cable in accordance with AWG Standard

--Best Cable Quality, Premium Service

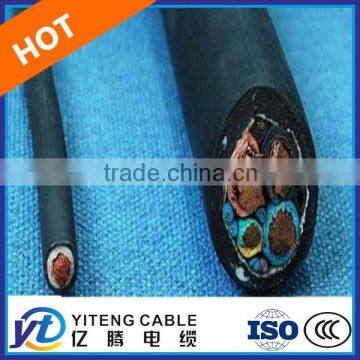

EPR Insulated Power Cable  for Power Plant, Power Station and Mining Areas

•Applications
EPR insulated power cables are widely used in power plant, power station, mining areas, harbors and petrochemical industries. This kind of products has such characteristics as softness, high mechanical intensity, abrasion-resistance, stable electrical performance in damp conditions.
The cable can be installed in interlines of substations, on viaducts,in underground tunnels and in cable troughs or on the cable bridges etc.
•Standards
They comply well with international standards, such as IEC 60502, IEC 60332, IEC60754, IEC61031, GB12706 etc.
•Features
The maximum allowable temperature of conductor is 70 ⁰C at normal operation.
The maximum temperature of conductor, in case of short circuit for less than 5S continuously, shall in no case exceed 160 ℃
The temperature not below 0 ⁰C when cables laid.
Installation bending radius of cable: 20D for single core cable. (D=overall diameter of cable)
                                                                 15D for multi-core cable. (D=overall diameter of cable).
•Type, Description & Size

Remark: the armor of single core cable should adopt non-magnetic materials or the construction to decrease magnetic loss.

Quality Assurance:

With Yiteng, all cables are produced by strict inspection and testing:

1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.

2). Production Procedure: Cables in Yiteng are produced by advanced cable production machines.

3). Testing: Cables in Yiteng will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…

Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables, including:

Δ Aluminum Alloy Cable with or without Armor and Interlock,

Δ Control Cable with Multi-Cores,

Δ Computer Cable with Individual and General Shileding and PE/ PVC/ XLPE Insulation,

Δ Shielded Cable or Screened Cable,

Δ ABC Cable in Aluminum for Overhead Application,

Δ Power Cable with PE/PVC/XLPE Insulation and PVC Sheath and Armor,

Δ Rubber Cable for General Purposes, Welding Machines or for Mining,

Δ Armored Cable with Steel Tape or Steel Wire Armor,

Δ PVC Cable with PVC Insulation and PVC Sheath,

Δ Low Voltage Power Cable,

Δ Medium Voltage Power Cable,

Δ Fire Resistant Cable and Flame Retardant Cable,

Δ Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable,

Δ High Temperature Cable, including silicone rubber insulated cable and Teflon insulated cable,

Besides, Yiteng Cable also produce cables of customers' special requirement.

These cables can be used for power transmission in air, underground or industrial, such as power station, coal, railway, agriculture and estate, etc...

We hope to get in touch with you!
