H05RR-F H05RN-F H07RN-F Flexible Rubber Cable,Rubber Welding Cable,Rubber Cable
Application
For connection of electrical appliances when exposed to low to medium mechanical stress in households and offices and for light utilities. Anywhere where there is minimal physical damage expected.
Technical Information
Conductor: Class 5 – fine copper wire strands manufactured to IEC 60228
Insulation: Rubber
Sheath:Rubber
Sheath Colour: Black
Voltage Rating: 300/500V
Number of cores: 12,3,3+1,4,5,6
Cross Sectional Area:0.5sqmm up to 6sqmm
Temperature Rating: Flexing -25°C to +60°C Static -40°C to +60°C
Minimum Bending Radius:Flexing: 15 x Ø Static: 6 x Ø
Core Identification
2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 Cores: Green/Yellow, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
6 Cores and above: Black with White numerals, Green/Yellow
Model Name
Model |
Name |
Use |
MHYV |
Coal insulated PVC sheathed communication cables |
For drift, Inclined and mechanical chamber |
MHJYV |
Coal with enhanced core PE insulated PVC sheathed communication cables |
For high drift and mechanical damage Inclined |
MHYBV |
Coal insulated galvanized steel wire braid armored PVC sheathed communication cables |
For high mechanical shock drift and Inclined |
MHYAV |
Coal insulated aluminum - polyethylene sheath bonded PVC sheathed communication cables |
More humid inclined to peace Lane |
MHYA32 |
Polyethylene sheath bonded steel wire armored PVC sheathed communication cables - Coal insulated aluminum |
For shaft and inclined |
Technical Data
Normal section |
20 DC resistance not more than |
Normal areas |
20 DC resistance not more than |
Copper wire |
Copper wire |
||
0.5 |
39.0 |
50 |
0.386 |
0.75 |
26.0 |
70 |
0.272 |
1.0 |
19.5 |
95 |
0.206 |
1.5 |
13.3 |
120 |
0.161 |
2.5 |
7.98 |
150 |
0.129 |
4 |
4.95 |
185 |
0.106 |
6 |
3.30 |
240 |
0.081 |

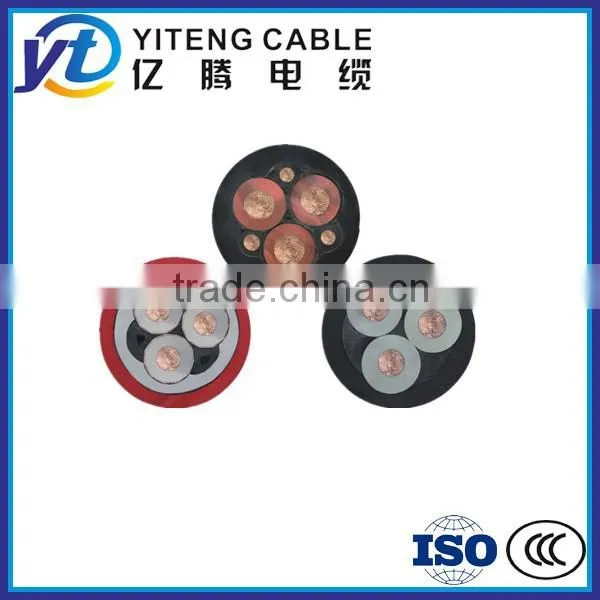

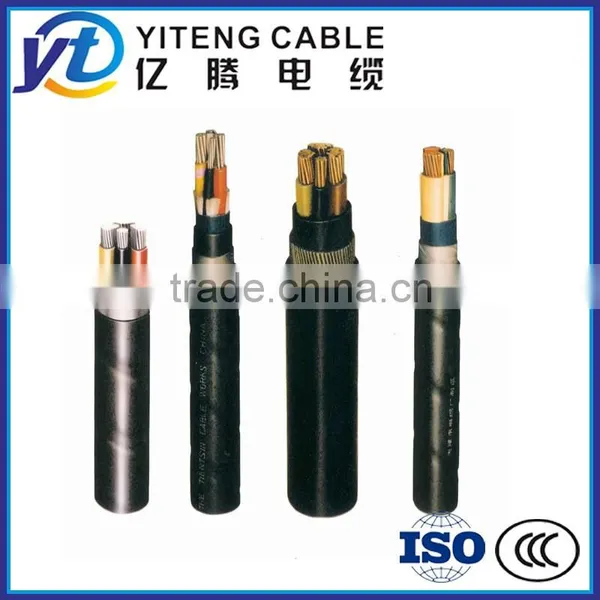

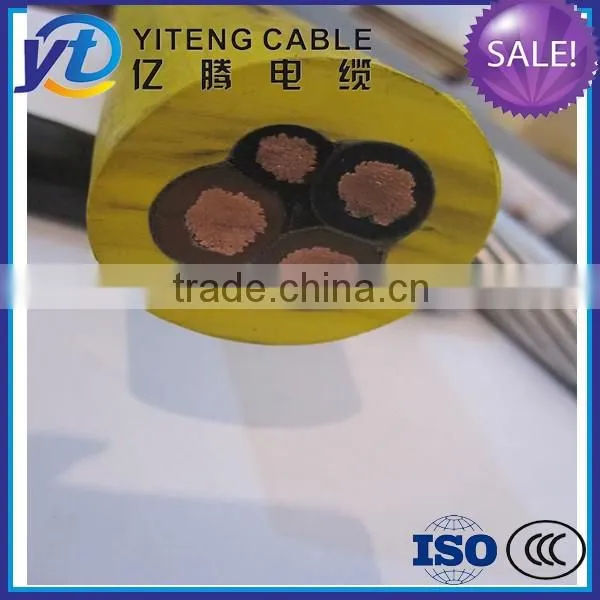

Cable Structure
Yiteng Cable Technology Hebei Co., Ltd.
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc
FAQ
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, HebeiProvince, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy? A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list? A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
