Flexible Copper Conductor Rubber Welding Cable H01N2-D
Product Description

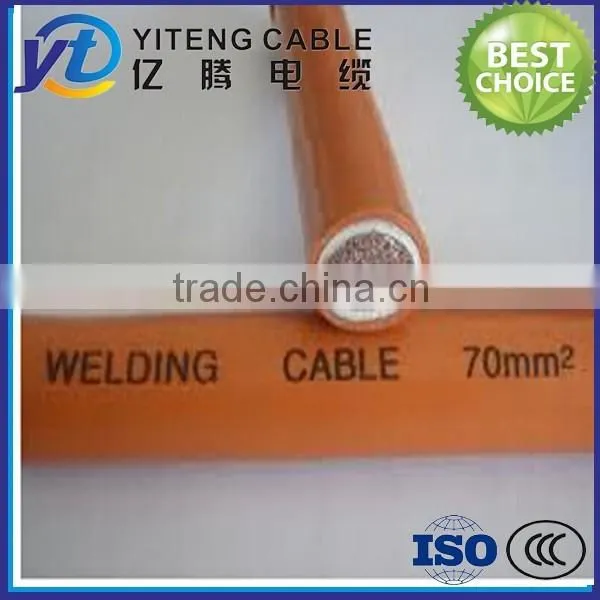

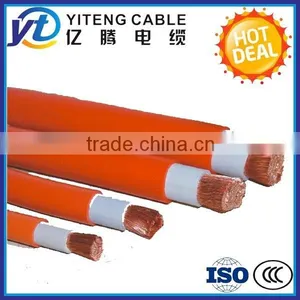

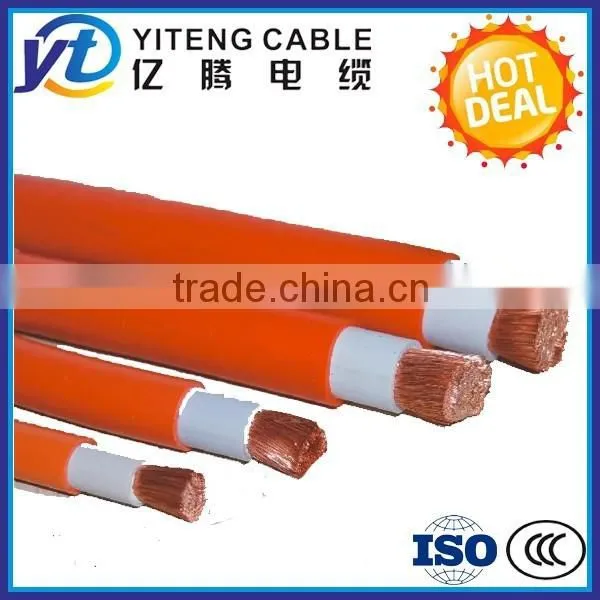

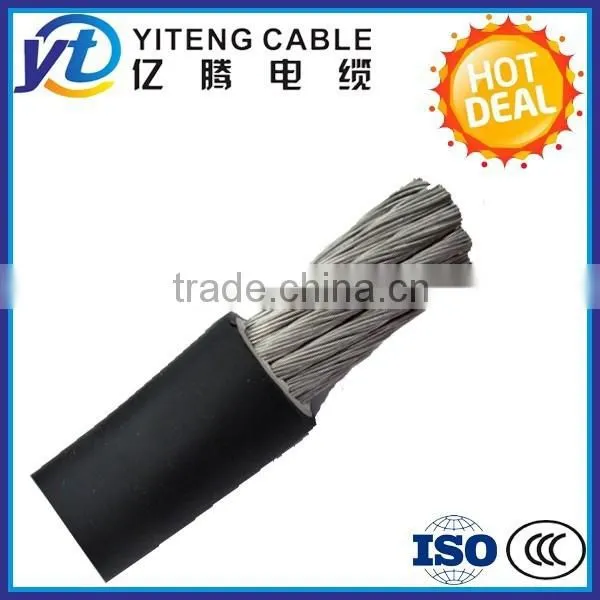

Welding cable: H01N2-D
Rated Voltage: 100/100V
Cores: 1
Insulation: CPE sheath, temperature: -15~75º C
Application:
These cables are used for connecting the electrodes to the Welding equipment. These cables are suitable
for welding Equipment in industry, in automated welding equipment, in Tooling constructions, automobile and ship building as well as for hand-held electrodes.

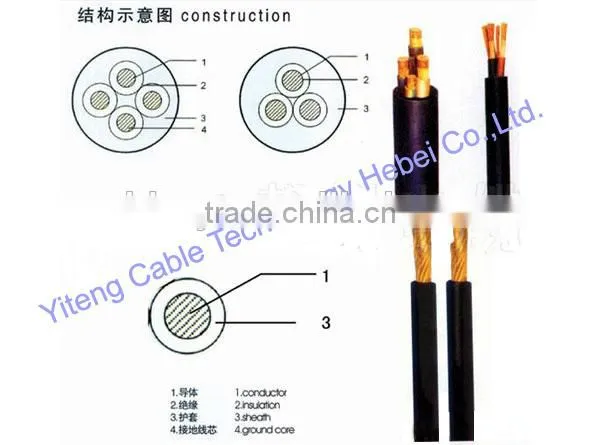

H01N2-D welding cable struction | |||||
Conductor section: 10-185mm2 Rated voltage: 100/100V | |||||
Line core number and conductor nominal section |
Norminal thinkness of insulation/sheath(mm) |
Overall Diameter (mm) |
At 20 DC Resistance of conductor (Ω /km) |
||
Min mm |
Max mm |
Tinned conductor |
Non-tinned conductor |
||
1x10 |
2.0 |
7.7 |
9.7 |
1.95 |
1.91 |
1x16 |
2.0 |
8.8 |
11.0 |
1.24 |
1.21 |
1x25 |
2.0 |
10.1 |
12.7 |
0.795 |
0.780 |
1x35 |
2.0 |
11.4 |
14.2 |
0.565 |
0.554 |
1x50 |
2.2 |
13.2 |
16.5 |
0.393 |
0.386 |
1x70 |
2.4 |
15.3 |
19.2 |
0.277 |
0.272 |
1x95 |
2.6 |
17.1 |
21.4 |
0.210 |
0.206 |
1x120 |
2.8 |
19.2 |
24.0 |
0.164 |
0.161 |
1x150 |
3.0 |
21.1 |
26.4 |
0.132 |
0.129 |
1x185 |
3.2 |
23.1 |
28.9 |
0.108 |
0.106 |
Cable detailed information:
1. Cable working temperature should not exceed 65 degree
2. Cable have a certain extent of temperature resistance and oild resistance, fit to work outdoor
and smeary enviroment
3. Reach standard GB/T18380.1-2001 vertical flame test
4. When cable working in temperature 20 degree, the insulation between
Conductors above 50M .KM
Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
Why choose Us
1. Fast delivery
2. Sample available .
3.Top cable supplier in China
4. ISO, IEC,CE ,CCC certifications.
5. Honest Manufacturer.
6.Advanced customization
7.Strong technical support
8.Strict quality control system
9. Quality guarantee after delivery

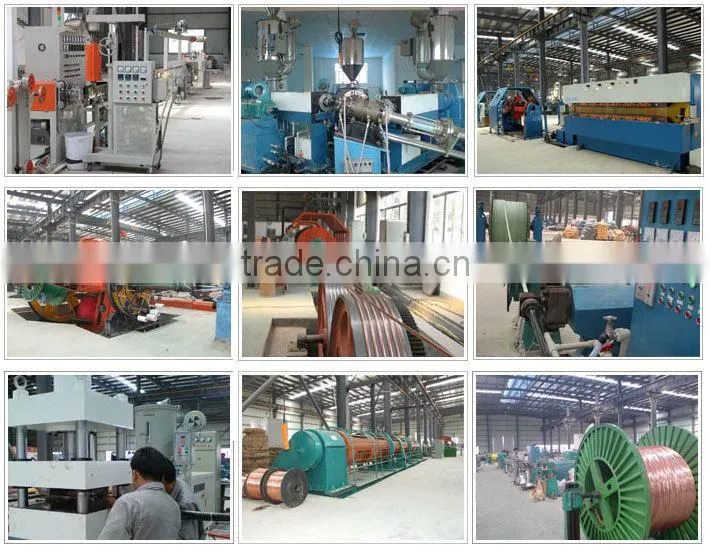

Workshop
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, HebeiProvince, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
