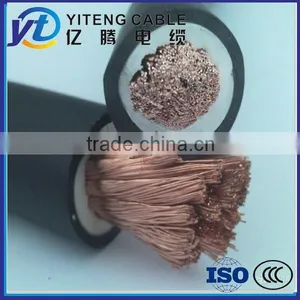

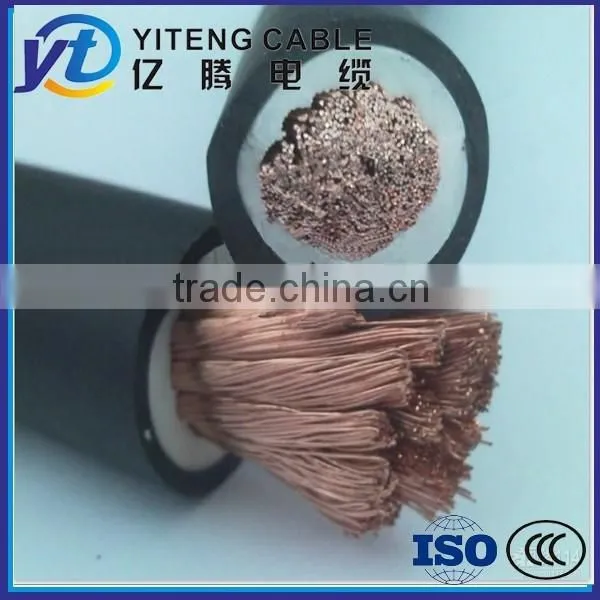

Flexible Copper Conductor Rubber Welding Cable
Application:
For the transmission of high currents from the electric welding machine to the welding tool. Suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, for manually and automatically operated line and spot welding machines.
Standards:
BS638 Part 4* BS EN 60332-1-2
Conductor: Class 6 extra flexible plain copper conductors to BS EN 60228: 2005 (previously BS6360)(Class 5 flexible plain copper conductors for 120mm² And above)
Separator: PETP (Polyethylene Terephthalate)
Insulation: EPR (Ethylene Propylene Rubber) to BS7655
Sheath: HOFR (Heat and Oil Resistant and Flame Retardant)to BS7655Sheath
Colour: Orange
Voltage Rating: 100V (450V for non-welding applications if suitably protected from mechanical damage)Temperature Rating: -20° C to +85° C
Minimum Bending Radius: 6 x overall diameter
Note: * Sizes up to and including 185mm² Confirm to BS 638 Part 4. Sizes above 185mm² Are generally to BS638 Part 4.
RoHS Compliant
0361TQ Black Welding Cable to BS638
Black Welding Cable to BS638 |
|
Nominal Cross Sectional Area mm² |
Nominal Overall Diameter mm |
1 x 16 |
9.7 |
1 x 25 |
11.2 |
1 x 35 |
12.4 |
1 x 50 |
14.3 |
1 x 70 |
16.3 |
1 x 95 |
18.6 |
1 x 120 |
20.3 |
1 x 150 |
22.6 |
1 x 185 |
24.7 |
1 x 240 |
27.8 |
Applicable scope: Rated voltage 300/500V or below, Applied in electric Appliance, elctromotive tools and equipment.
Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
Why choose Us
1. Fast delivery
2. Sample available .
3.Top cable supplier in China
4. ISO, IEC,CE ,CCC certifications.
5. Honest Manufacturer.
6.Advanced customization
7.Strong technical support
8.Strict quality control system
9. Quality guarantee after delivery
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, HebeiProvince, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
