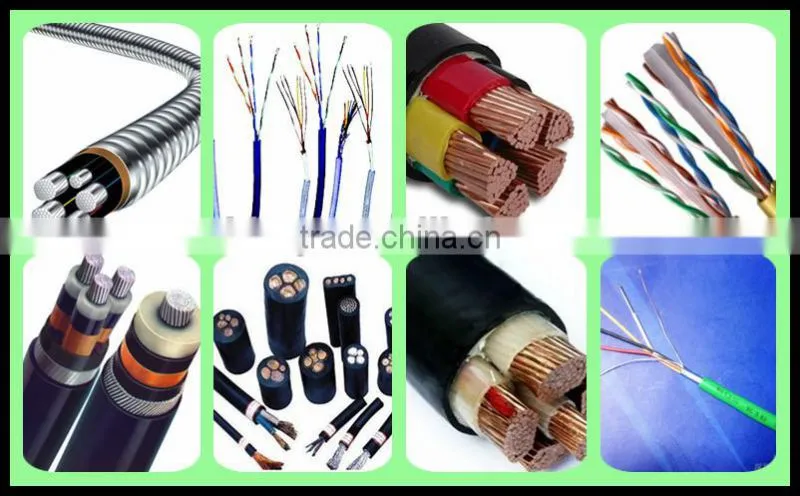

XLPE Insulated Steel Wire Armoured Standed Power Cable

Name: XLPE Insulated Steel Wire Armoured Standed Power Cable
Brand: yiteng
SKU: 113021479

XLPE Insulated Steel Wire Armoured Standed Power Cable thumbnail-1

XLPE Insulated Steel Wire Armoured Standed Power Cable photo-1

US$ 0.5 - 25 MOQ: 100 Meters

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

yiteng

Insulation Material:

XLPE

Contact Supplier Request Quote Chat Now

Yiteng Cable Technology Hebei Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port or any port in china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name yiteng

Insulation Material XLPE

Type Medium Voltage

Application Industrial

Conductor Material Copper

Jacket Other, PVC, PVC, XLPE, PE or other

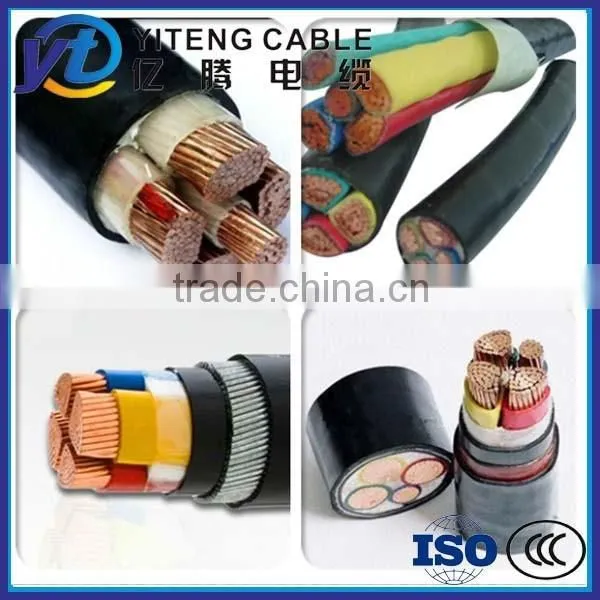

XLPE insulated steel wire armoured standed power cable

Main advantage

ISO9001

Factory

OEM

SGS

Product Description

Single core: ≥20(d+D)±5%.

Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor)

1. Material: Cooper, Aluminum

2. Rated voltage: low and medium voltage

3. Wire identification: Red, yellow, blue, white, black

4. No. Of cores : Single core cable: from 1.5 mm2 to 800 mm2; Multi-core cable: from 1.5 mm2 to 400 mm2

5. Standard: Low voltage: IEC60502-1 Medium voltage :IEC60502-2 or other requirement.

6. Insulation: PVC, XLPE, PE

7. Application: Suitable for indoor, channel, conduit,underground,vertical well etc.

8. Nominal cross section area: from 1.5 mm2 to 800 mm2.

Rated Voltage,Core Numbers & Nominal Cross-section Area as following Table 1-1

U0/Um(kv)	1st class	0.6/1	1.8/3	3.6/6	6/10	8.7/15	12/20	18/30	21/35
No.of Core	2nd class	1/1	3/3	6/6	8.7/10	12/15	18/20	-	26/35
1 Core	Section area(mm2)	1.5-800	25-800	25-800	25-800	35-800	50-800	50-800	50-800
2 Core	Section Area(mm2)	1.5-185	/	/	/	/	/	/	/
3 Core	Section area(mm2)	1.5-400	25-400	25-400	25-400	35-400	50-400	50-400	50-400
4 Core	Section Area(mm2)	2.5-400	25-400	/	/	/	/	/	/
5 Core	Section area(mm2)	2.5-400	25-400	/	/	/	/	/	/

Description & Application Occasion of cable

Type		Description	Application n
Cu	Al	Description	Application n
YJV	YJLV	XLPE insulation PVC sheath power cable	To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside
YJY	YJLY	XLPE insulation PE sheath power cable
YJV22	YJLV22	XLPE insulation, steel tape armor, PVC sheath power cable	To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force.
YJV23	YJLV23	XLPE insulation, steel tape armor, PE sheath power cable
YJV62	YJLV62	XLPE insulation, have no the magnetism steel tape armor, PE sheath power cable
YJV32	YJLV32	XLPE insulation, thin steel-wire armor, PVC sheath power cable	Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint .
YJV72	YJLV72	XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable
YJV42	YJLV42	XLPE insulation, thick steel-wire armor, PVC sheath power cable	Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint.
Special Note	,6272.,. The single-core magnetism material packs the cable is not suitable for to use for the AC power supply back track, the necessity hour eligibility uses the single-core 62 or 72 type pack the cable. Disallow the cent to cross the magnetism piping mutually when single-core cable establish, the in order to prevent results in the descent that cable transport electric current ability.
