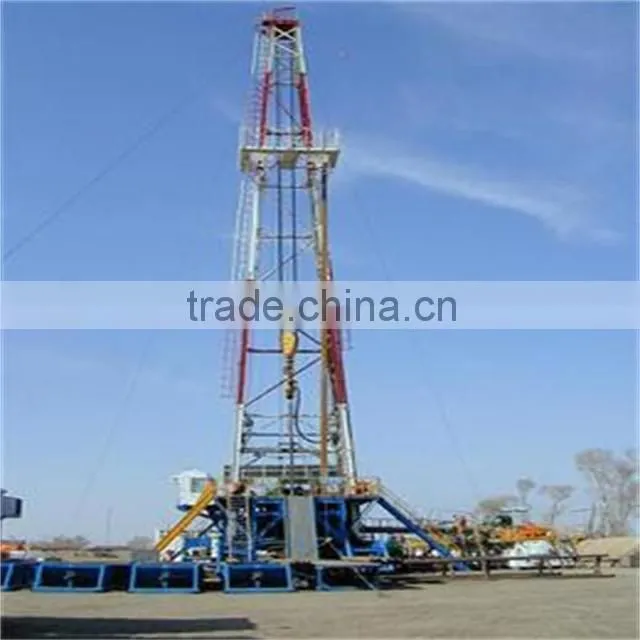

API Standard Land Drilling Rigs ZJ50 for Oilfield

Name: API Standard Land Drilling Rigs ZJ50 for Oilfield
Brand: Hongsheng
SKU: 112984651
Availability: InStock

US$ 1,000,000 - 6,000,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Oil Land Drilling Rig ZJ50

Power Type:

Other, Your choice

Lijin Hongsheng Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Oil Land Drilling Rig ZJ50

Power Type Other, Your choice

Place of Origin Shandong, China

Brand Name Hongsheng

Certification API ISO

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Meet standard of API and ISO.
2.With strong technology and competitive price.
3.High quality and good after-sales service.

5000M Drilling Rigs

Model:U.S Met	ZJ50/3150L	ZJ50/3150LD	ZJ50/3150DZ	ZJ50/3150DB	ZJ50/3150DBF
Nominal drilling depth :	11500~16400 3500~5000
4-1/2″ Drill ft m	9200~14800 2800~4500
5″Drill ft m
Maximum static hook load: KIPS KN	695 3150
Maximum drill negative: KIPS KN	350 1600
Maximum input power winch: hp Kw	1500 1100			2680 2000
DW gear	4 forward + 2 reverse	4	4/Stepless	Stepless
Main brake type	Disc brake / with brake
Auxiliary brake type	Eddy current brake / E.T. N brakes		Dynamic braking / eddy current brake / E.T. N brakes
Rope diameter: in mm	1-3/8 35
Enhance the system's largest tethered	6×7
Wearing rope ways to improve the system	Shun wear / wore flowers
Swimming pulley diameter: in mm	50 1270
Opening diameter turntable: in mm	37-1/2 952.5
Wheel drive mode	Composite drive	Independent drive	Composite drive independent drive
Mast type	“∏”
Derrick effective height: ft m	148 45
Base height: ft m	20.5,29.5,34.5 7.5,9,10.5
Headroom base: ft m	20,25,30 6.12,7.62,9.12
Mud single power: hp KW	1600 1180
Mud pump sets	2
Transmission	Whole chain box		AC-SCR-DC	AC-DC-AC(VFD)	AC-DC-AC(VFD)
					/Pump group
Main engine power: hp KW	1500 1100
Main engine number of units	3				4
Mud tanks with a total capacity: BBL m3	2100 320

We can according to your needs to provide you a different standard, similar products with different specifications

Host device	Wellhead Tools	Traveling system	Rotating system	Circulation purification system	Well Control System	Air purification system	Safety aids
Derrick	Hydraulic tongs	Tour car	Turntable	Mud Desander	Annular BOP	Compressor	Fire appliances
Crane	Hydraulic Power Station	Hook	Kelly Bushing	Hose desilter	Ram BOP	Dryer	Gas detection equipment
Winch	Elevator	Faucet		Mud tank degasser	Kill Manifold	Air tanks	Alarm
Base	Kava			Shaker	Choke manifold	Drying room	Gas masks
Diesel	Spinner			Stirrer	Ground remote control system		Explosion circuit
Generator				Centrifuge
