Help CenterAPI Standards ZJ40(1000HP) Drilling Rig
Related Products
-
2014 Hot Sales Oil Well Rig Drilling RigNegotiableMOQ: 1 Set -
API AC Variable Frequency Electric Drive Drilling RigUS$ 492,000,000 - 690,000,000MOQ: 1 Set
-
New Condation and API Electromechanical Combination Drive RigsUS$ 492,000,000 - 690,000,000MOQ: 1 Set
-
API Standard Mechanical Compound Drive RigUS$ 492,000,000 - 690,000,000MOQ: 1 Set
-
API and New Condation 3000M Drilling RigsUS$ 492,000,000 - 690,000,000MOQ: 1 Set
Specifications
1.Modular design,Diesel-driven2.Hydraulic drive, mechanical drive, electric drive
3.Can be equipped with wellhead equipment
1 , powered by a Caterpillar engine and Allison hydraulic transmission , a reasonable match , stable performance , strong power and high efficiency. Compact drive unit ministries structure, reasonable layout.
2 , down from the tank using a large multi- shaft center distance can be passed to the platform power winch, front axle or rear axle and interlocking respectively .
3, the winch brake rod using a complex mechanism , reducing the intensity of the driller 's operation , the brake hub forced circulation cooling , favorable winch work to ensure that the main brake sensitive and reliable. Using two chamber
Pneumatic water-cooled auxiliary brake , broadening the auxiliary brake function, and enhance the role of the auxiliary brake .
4 , the turntable can achieve positive , rewind, and can adapt to a variety of drill pipe rotary operations , equipped with anti- torque release device to ensure the safe release of the drill pipe deformation energy .
5 , Derrick is a front opening , double four-point support package shaped derrick mast , telescopic hydraulic cylinder double put the overall effect , easy operation , safe and reliable.
6 , for the spin -up rig structure, function complete, easy lifting and transportation , table size and height according to user requirements to develop.
7 , perfect solid control , well control , pressure manifold and auxiliary equipment to meet user requirements,

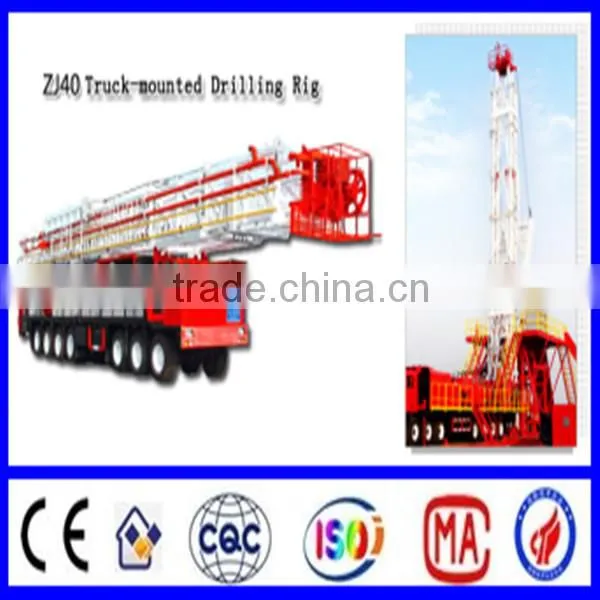

8 , relocation moving very fast and convenient . Carrier vehicle both to ensure flexible steering , and to ensure adequate capacity, through the good , and good off-road . In order to meet the needs of our customers , our company truck-mounted
Rig , the existing five models ready for you to choose . ZJ10, ZJ15, ZJ20, ZJ30, ZJ40 truck-mounted drilling rig .
Model |
ZJ30 |
Drilling Depth m(41/2″Drill Pipe) |
3000 |
Workover Depth m(31/2″Drill Pipe) |
6500 |
Max Hook Load kN |
1700 |
Hook Speed m/s |
1.36 |
Derrick Height m |
36 |
Engine Model |
CAT C15 |
Engine Power kW |
403 |
Model of Hydraulic Transmission |
ALLISON-S5600 |
Travel System |
5×6 |
Dia.of Rope Line mm |
Φ29 |
Rotary Table Model |
ZP205 |
Chassis Driven |
14×8 |
Min.clearance mm |
340 |
Max.gradient |
26% |
Min.turming Diameter m |
21 |
Overall Dimension m |
22.07×3.3×4.49 |
