Despription:
This Vibrating Screw Charging Machine can convey sorts of material. Combined with the package-machine of our company, it can do material situation tracing. Also can be used separately. Complete machine made in stainless steel, except for the electrical machine, gearing, and the framework.
Characteristics:
l Vibrating screw feeding machine is composed of double motor, feeding motor, vibrating motor and each switch control.
l Hopper is adjustable and vibrational which make material to be flowing easily. It is good to material.
l Hopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading.
l Characteristic dustproof, bearing won’t be polluted by the dust and powder.
l To cleanup scrapped materials conveniently and design the machine to be: Discharging the material reversally, storing materials at the bottom of hopper pipe, taking out the whole screw.
Technical Data:
Model |
JB-3 |
JB-5 |
JB-6 |
JB-8 |
JB-10 |
Capacity |
3m3/h |
5 m3/h |
6 m3/h |
8 m3/h |
12 m3/h |
Speed |
20-140 |
20-140 |
20-140 |
20-140 |
20-140 |
Inverter |
Select |
Select |
Select |
Select |
Select |
Pipe Diameter |
Φ 114 |
Φ 141 |
Φ 159 |
Φ168 |
Φ219 |
Motor |
0.77W |
1.57KW |
2.26KW |
3.06KW |
4.06KW |
Power |
1.52KW |
2.22KW |
3.02KW |
4.02KW |
5.57KW |
Weight |
130kg |
170kg |
200kg |
220kg |
270kg |
Hopper Volume |
200L |
200L |
200L |
200L |
200L
|

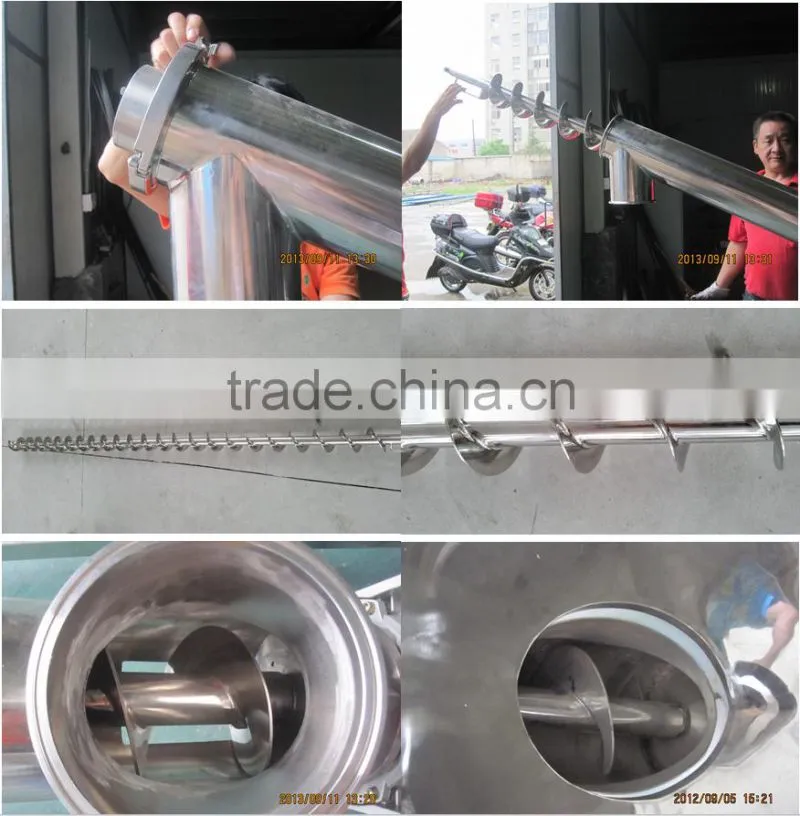

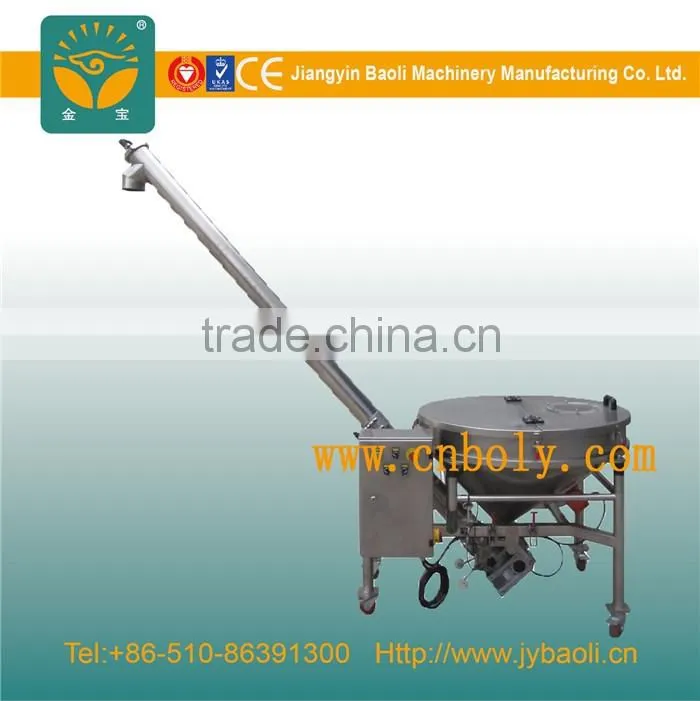

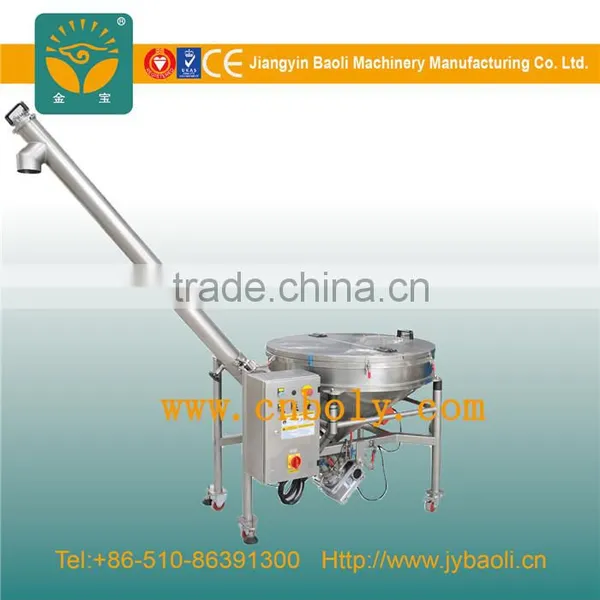

Machine Picture:
This is Vacuum Charging Machine below:
This is Peneumatic Vacuum Conveyor Machine below:
They are hot selling in your market:

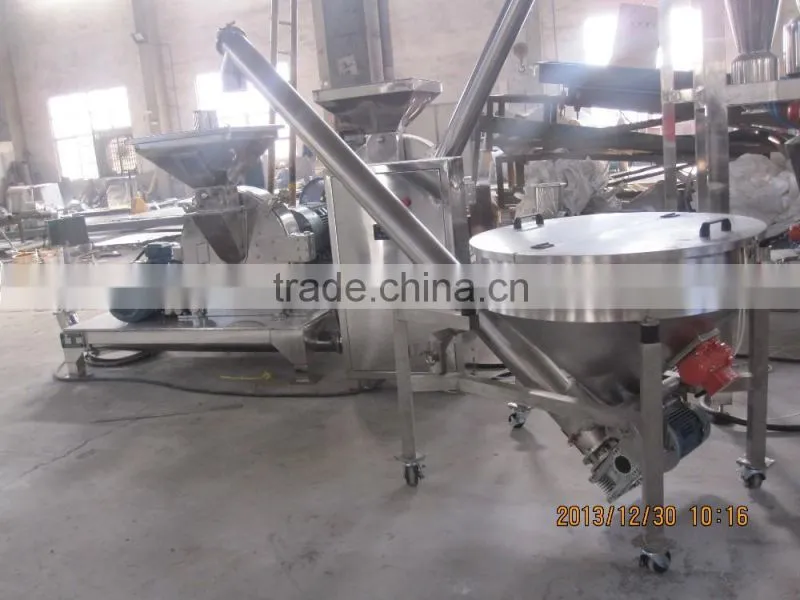

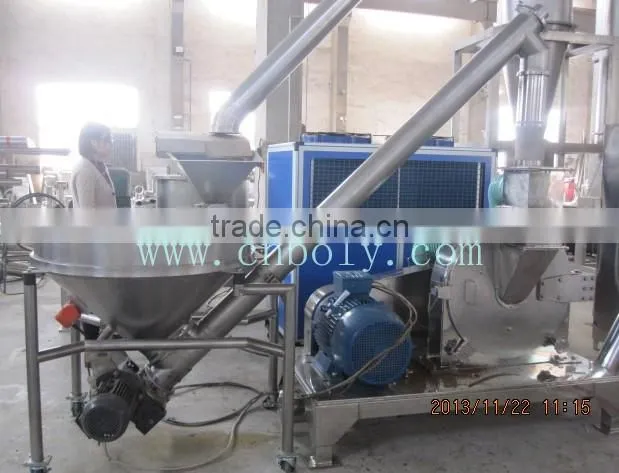

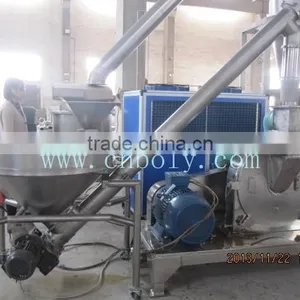

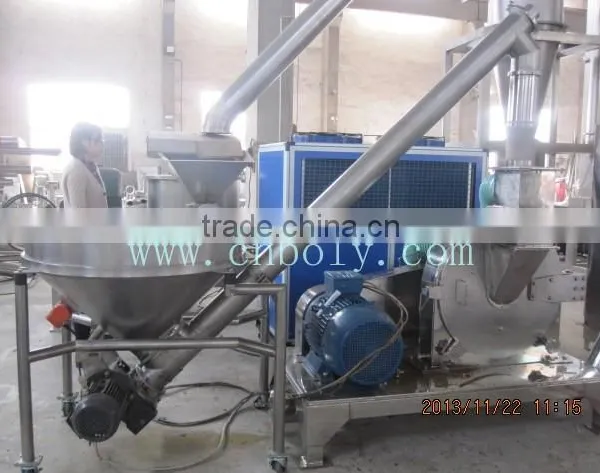

Factory Look:
Please feel free and contact me:
